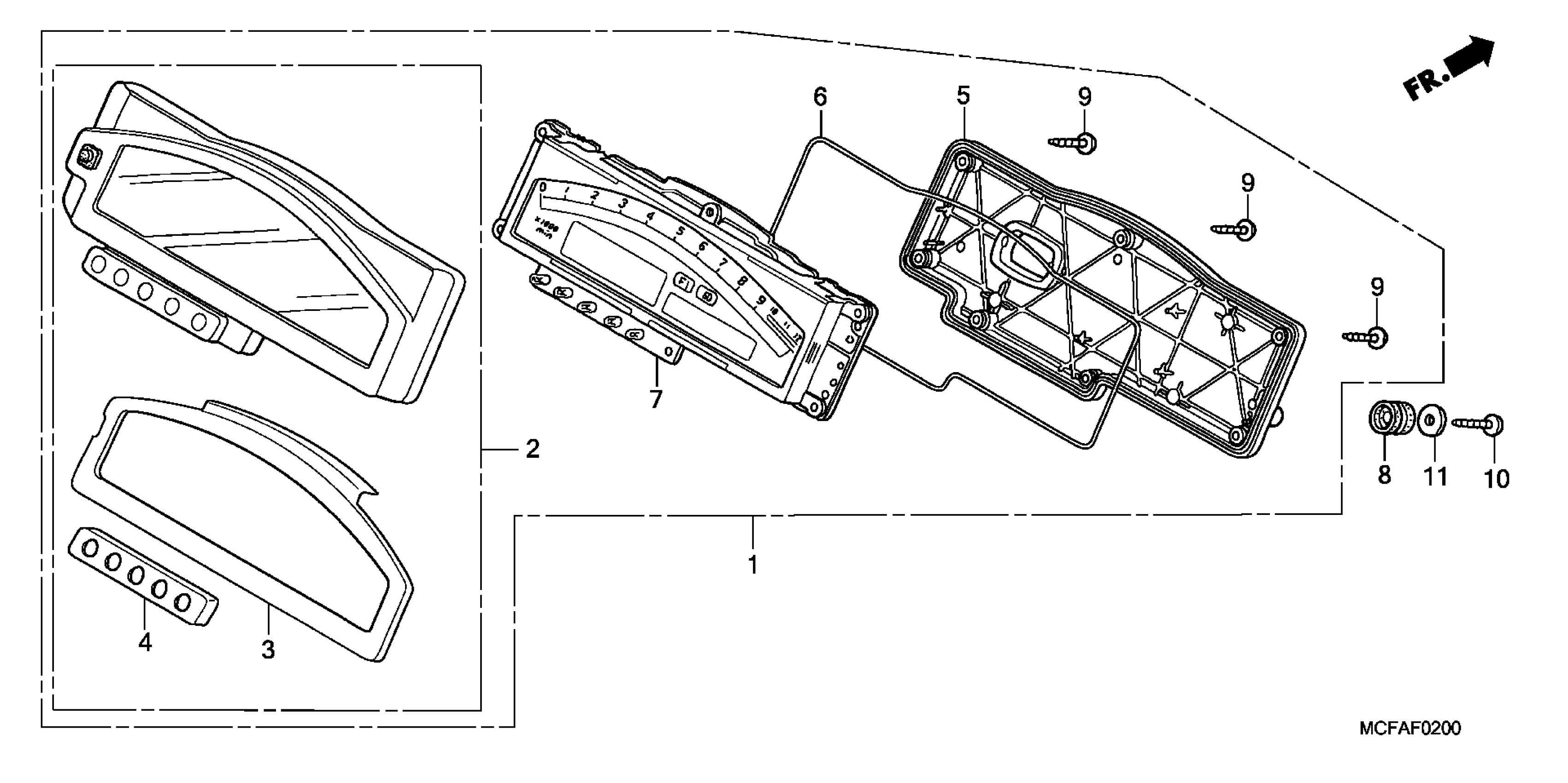

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 SPEEDOMETER Diagram

#

Description
Price

1

METER ASSY., COMBINATION

37100-MCF-A41

Unavailable

2

CASE ASSY. (UPPER)

37101-MCF-D61

Unavailable

3

PANEL, METER (UPPER)

37102-MCF-D61

Unavailable

4

PANEL, METER (LOWER)

37103-MCF-D61

Unavailable

5

CASE (LOWER)

37105-MCF-D61

Unavailable

6

GASKET

37106-MCF-D61

$6.91

7

METER ASSY. (L.C.D.)

37130-MCF-A01

Unavailable

8

RUBBER, METER CUSHION

37215-MA6-008

$2.80

9

SCREW, TAPPING (3X16)

93903-22480

$0.43

10

SCREW, TAPPING (5X16) (PO)

93913-25480

$0.83

11

WASHER, PLAIN (5MM)

94103-05700

$0.86
