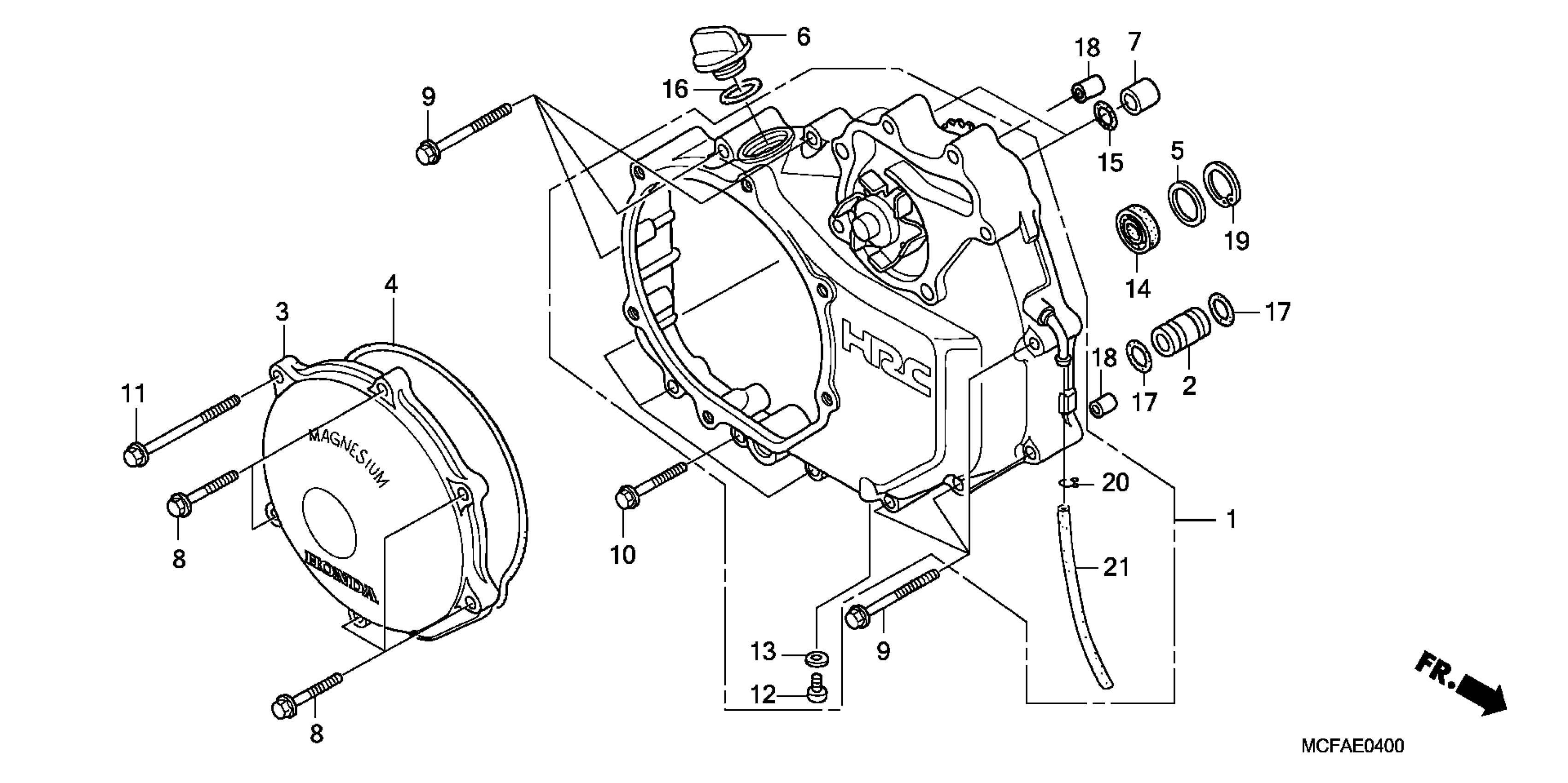

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11300-MCF-D30

Unavailable

COLLAR, SPECIAL

11332-MCF-000

Unavailable

COVER, CLUTCH

11350-MCF-D60

$203.48

GASKET, CLUTCH COVER

11356-MCF-000

$25.32

SEAT, OIL FILTER SPRING

15414-300-000

$3.89

CAP, OIL FILLER

15611-KA4-710

$14.40

COLLAR, FR. FORK (OUTER)

51486-087-711

$5.71

BOLT, FLANGE (6X22) (NSHF)

90006-GHB-660

$1.80

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

BOLT, FLANGE (6X65) (NSHF)

90006-GHB-760

$2.15

BOLT, SEALING (8MM)

90119-SD9-000

$5.57

WASHER C (8MM)

90475-703-000

$1.49

OIL SEAL (16X30X6.5)

91201-MCF-003

$9.90

O-RING (19.9X3.1) This part replaces 91301-MCF-000.

91301-MCS-A11

$3.45

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (18X2.4)

91310-PH3-003

$2.44

PIN, DOWEL (8X20)

94301-08200

$2.25

CIRCLIP (INNER) (32MM)

94520-32000

$1.69

CLIP, TUBE (B10)

95002-02100

$1.90

BULK HOSE, VACUUM (5.5X8000) (5.3X300)

95005-55008-10M

Unavailable
