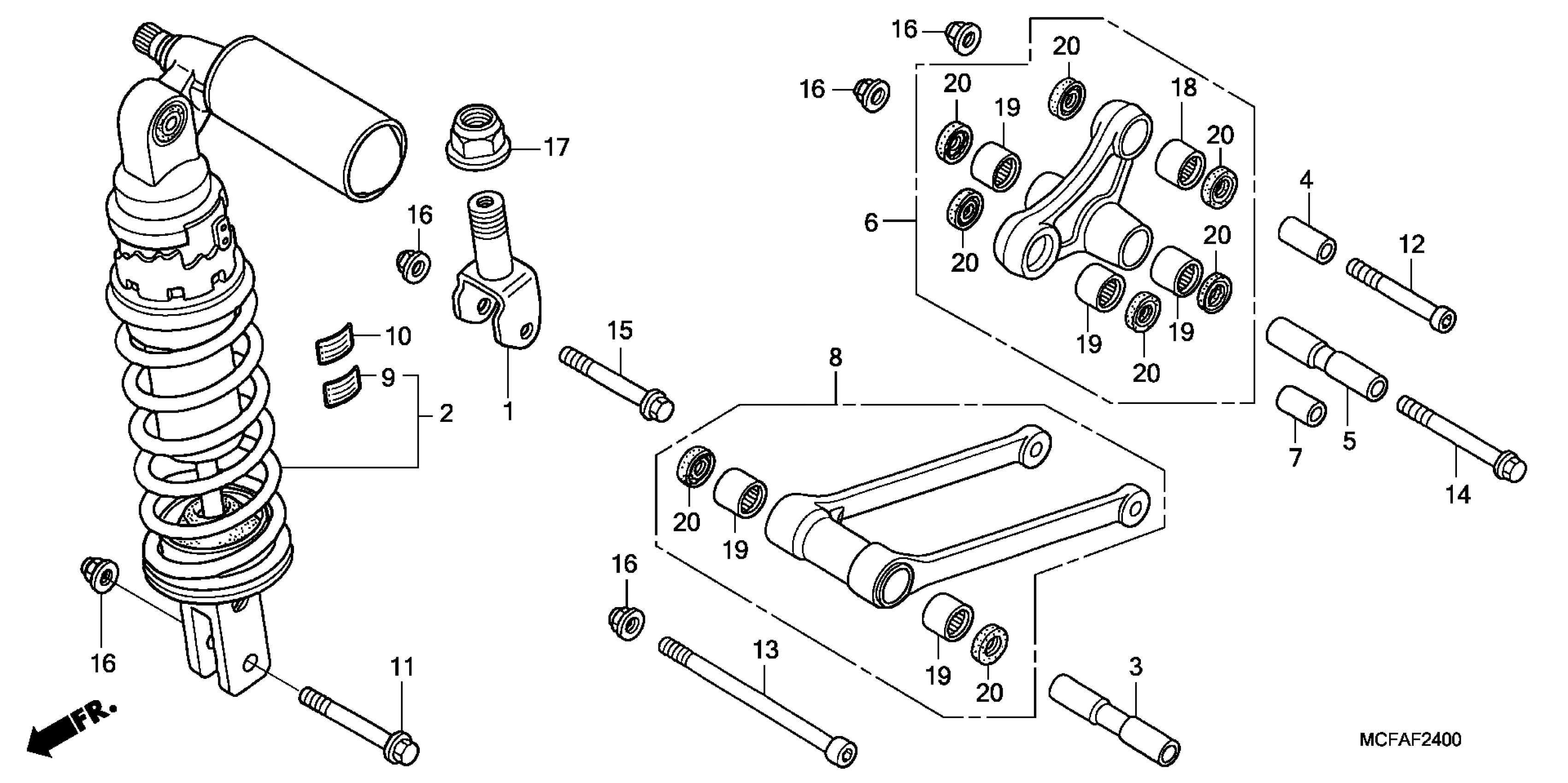

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 REAR SHOCK ABSORBER Diagram

BRACKET, RR. CUSHION (UPPER)

50233-MCF-D30

$28.70

CUSHION ASSY., RR.

52400-MCF-A21

Unavailable

COLLAR, CONNECTING ROD PIVOT

52462-ML0-000

Unavailable

COLLAR, CUSHION ARM

52463-KV3-000

Unavailable

COLLAR, CUSHION ARM

52463-MR7-000

Unavailable

ARM SUB-ASSY., CUSHION

52465-MCF-D30

Unavailable

COLLAR C, CUSHION ARM

52465-MY1-000

$5.50

ROD SUB-ASSY., SHOCK CONNECTING

52475-MCF-D30

Unavailable

LABEL, RR. DAMPER CAUTION

87516-KV6-610

$4.49

BOLT, FLANGE (10X57)

90107-MR8-000

$5.91

BOLT, SOCKET (10X70)

90110-MR7-000

$7.67

BOLT, SOCKET (10X130)

90111-MR7-000

$13.03

BOLT, FLANGE (10X113)

90115-MR7-003

Unavailable

BOLT, FLANGE (10X52)

90154-HA8-000

$7.79

NUT, U (10MM)

90304-GE8-003

$3.42

NUT, RR. AXLE U (16MM)

90305-MC0-003

Unavailable

BEARING, NEEDLE (KOYO)

91071-KV3-005

$22.18

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$17.67

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$5.77
