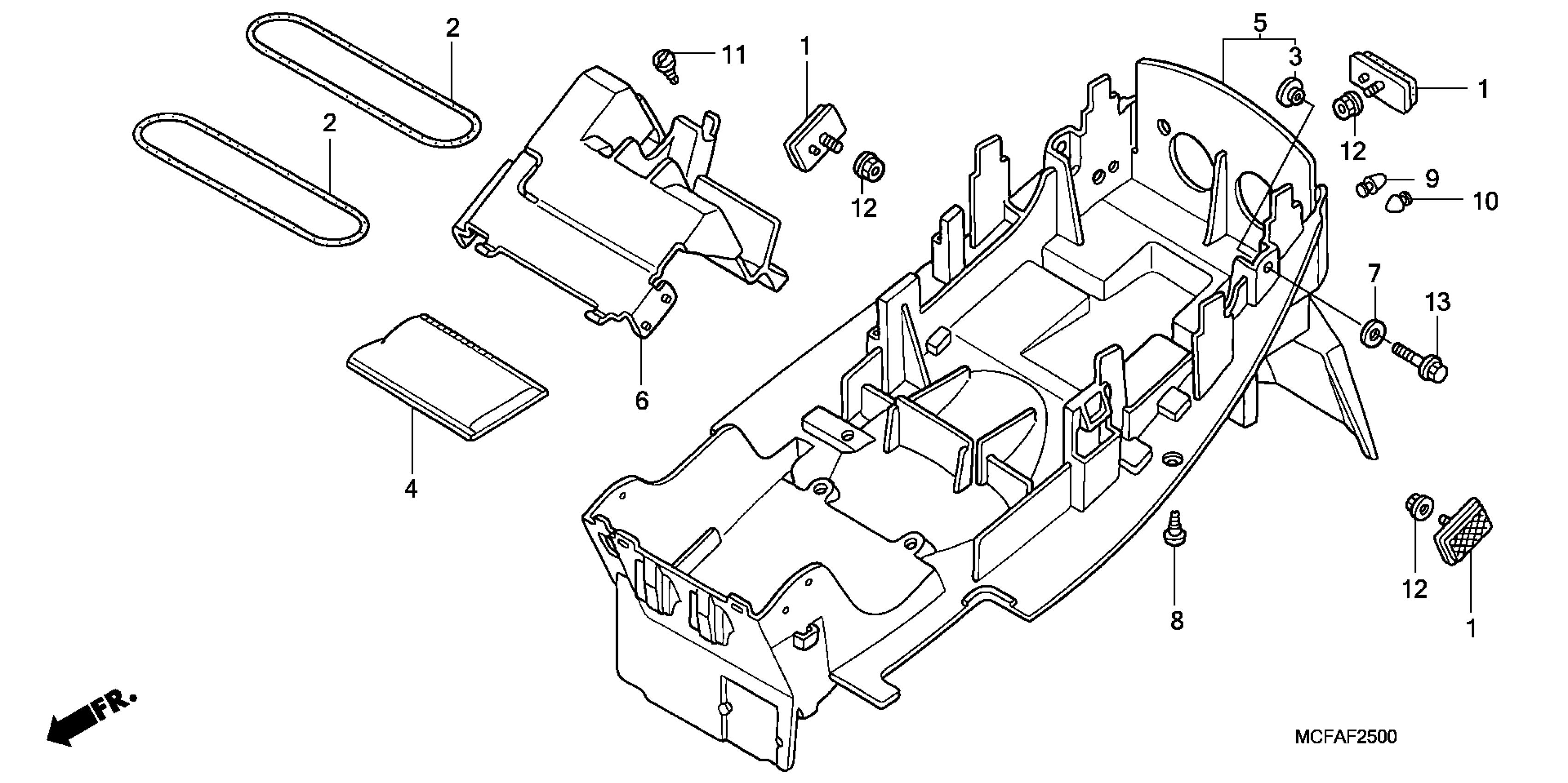

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 REAR FENDER Diagram

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.60

BAND, U-LOCK

50290-MZ7-000

$17.90

WASHER, FR. COVER FIXING

64348-086-000

$3.37

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.00

FENDER, RR.

80100-MCF-A20

Unavailable

COVER, BATTERY TRAY

80110-MCF-D30

$28.41

WASHER, PLAIN (6MM)

90525-428-900

$1.84

CLIP, TRIM

90683-GAZ-003

$3.54

PLUG, CONE

90899-KL8-000

$2.97

PLUG, CONE TYPE

90899-422-610

$1.81

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$3.93

NUT, FLANGE (5MM)

94050-05070

$1.17

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable
