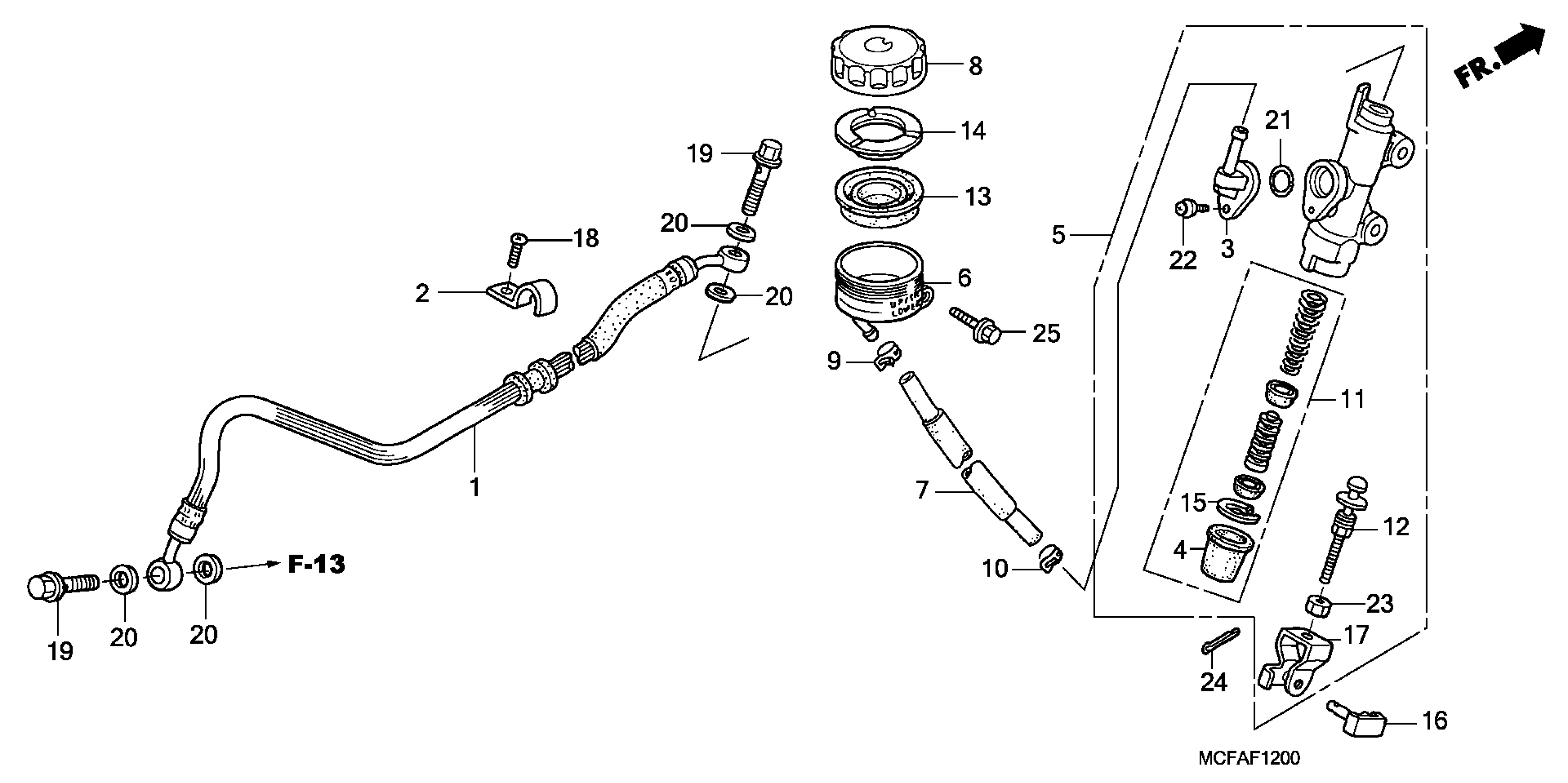

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MCF-D31

Unavailable

2

GUIDE, BRAKE HOSE

43468-MCJ-750

$6.54

3

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$10.94

4

BOOT

43504-MB2-006

$9.01

5

M/CYL SUB-ASSY, RR. This part replaces 43510-MCF-D01.

43510-MCF-D02

Unavailable

6

CUP, OIL

43511-MR7-016

$29.55

7

HOSE, MASTER CYLINDER

43512-MCF-006

Unavailable

8

CAP, OIL CUP

43513-MY1-006

$26.39

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

11

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$41.76

12

ROD, PUSH

43530-MB2-006

$31.62

13

DIAPHRAGM

45520-371-013

$12.88

14

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

15

CIRCLIP

46182-500-013

$4.46

16

PIN, BRAKE ROD

46503-MAL-000

$5.46

17

JOINT, BRAKE ROD

46504-MAL-601

$12.20

18

SCREW, PAN (5X16)

90110-MCJ-000

Unavailable

19

BOLT, OIL (10X22)

90145-MS9-612

$6.82

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

O-RING (14.8X2.4)

91212-422-006

Unavailable

22

SCREW-WASHER (4X12)

93893-04012-07

$1.22

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

23

NUT, HEX. (8MM)

94002-08000-0S

$1.19

24

PIN, SPLIT (2.0X12)

94201-20120

$0.94

25

BOLT, FLANGE (6X18)

96001-06018-00

$1.64
