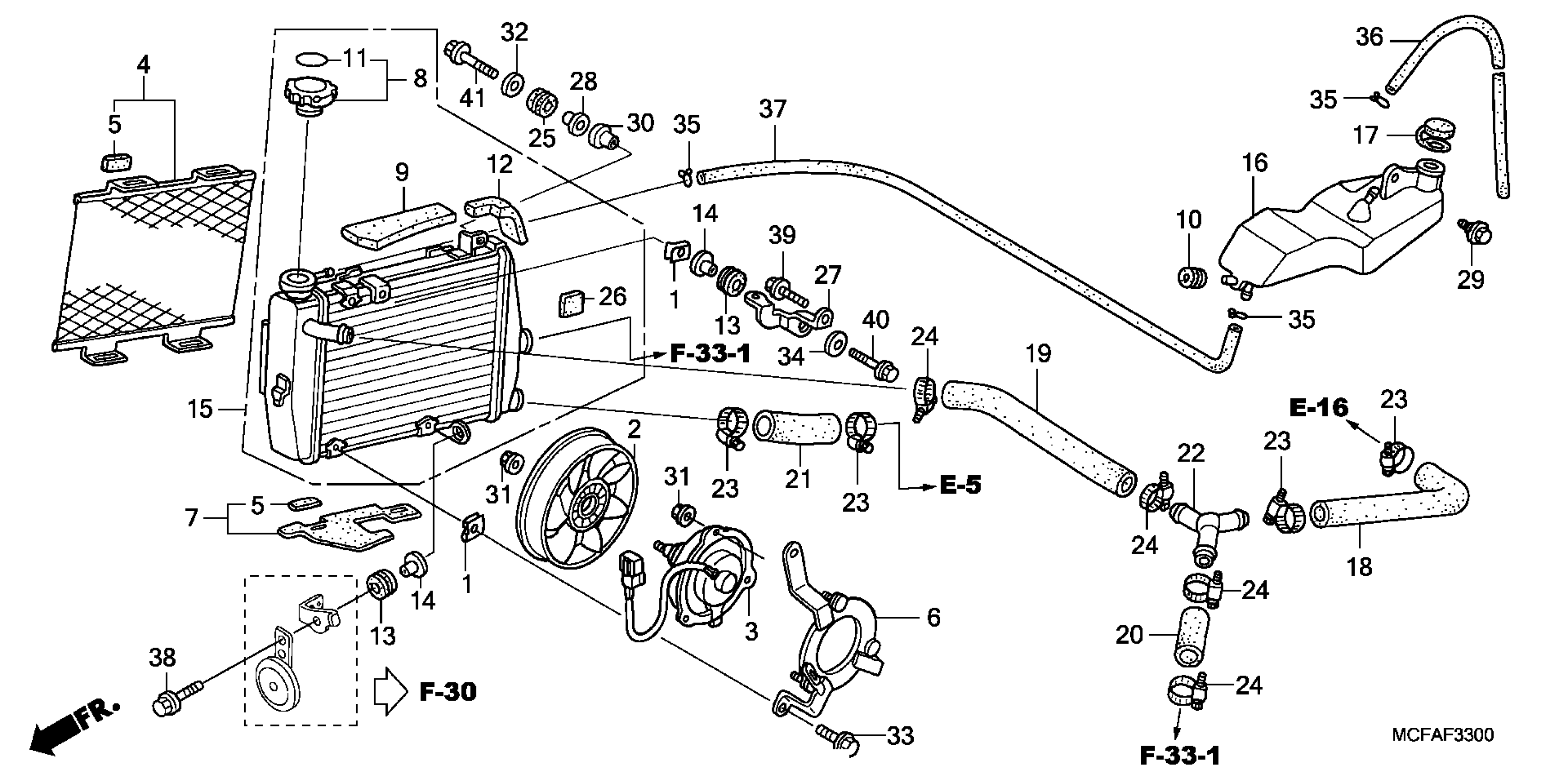

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 RADIATOR (R.) Diagram

NUT, SETTING

19014-KEA-003

$2.88

FAN, COOLING

19020-MCF-D31

Unavailable

MOTOR ASSY., FAN

19030-MCF-D31

Unavailable

GRILLE, RADIATOR

19032-MCF-D00

Unavailable

CUSHION, RADIATOR GRILLE

19033-MBB-300

$2.64

SHROUD, R.

19035-MCF-D31

Unavailable

GUIDE B, R. RADIATOR (INNER)

19036-MCF-D30

Unavailable

CAP, RADIATOR

19037-GEE-710

$27.19

MAT A, R. RADIATOR

19038-MCF-D30

Unavailable

RUBBER, FILLER NECK STOPPER

19038-ME9-000

$3.72

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

MAT B, R. RADIATOR

19048-MCF-D30

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.78

RADIATOR, R.

19060-MCF-D31

Unavailable

TANK, RADIATOR RESERVE

19101-MCF-000

Unavailable

CAP, RESERVE TANK

19109-KPC-640

$4.47

HOSE A, RADIATOR

19501-MCF-000

$31.67

HOSE B, RADIATOR

19502-MCF-000

Unavailable

HOSE C, RADIATOR

19503-MCF-000

$6.30

HOSE D, RADIATOR

19504-MCF-000

$9.78

JOINT, HOSE (3WAY) This part replaces 19508-MBT-610.

19508-MBT-611

$24.19

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

RUBBER, TAILLIGHT

33712-KT1-670

$4.16

RUBBER, FR. FENDER

61105-MCC-300

Unavailable

STAY C, R. COWL (UPPER)

64511-MCF-D50

$7.77

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.80

BOLT, FLANGE (6MM)

90111-162-000

$2.62

NUT, SPECIAL (6MM)

90301-MBY-003

$5.27

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

WASHER (6MM)

90485-MB2-000

$1.83

BOLT-WASHER (6X14)

93401-06014-07

$1.48

WASHER, PLAIN (6MM)

94103-06700

$0.65

CLIP, TUBE (B10)

95002-02100

$1.72

BULK HOSE, VACUUM (5.5X3000) (5.3X530)

95005-55003-20M

$30.62

BULK HOSE, VACUUM (5.5X3000) (5.5X620)

95005-55003-20M

$30.62

BOLT, FLANGE (6X35)

95801-06035-07

$1.84

BOLT, FLANGE (6X14)

96001-06014-07

$1.09

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

BOLT, FLANGE (6X32)

96001-06032-07

$1.41
