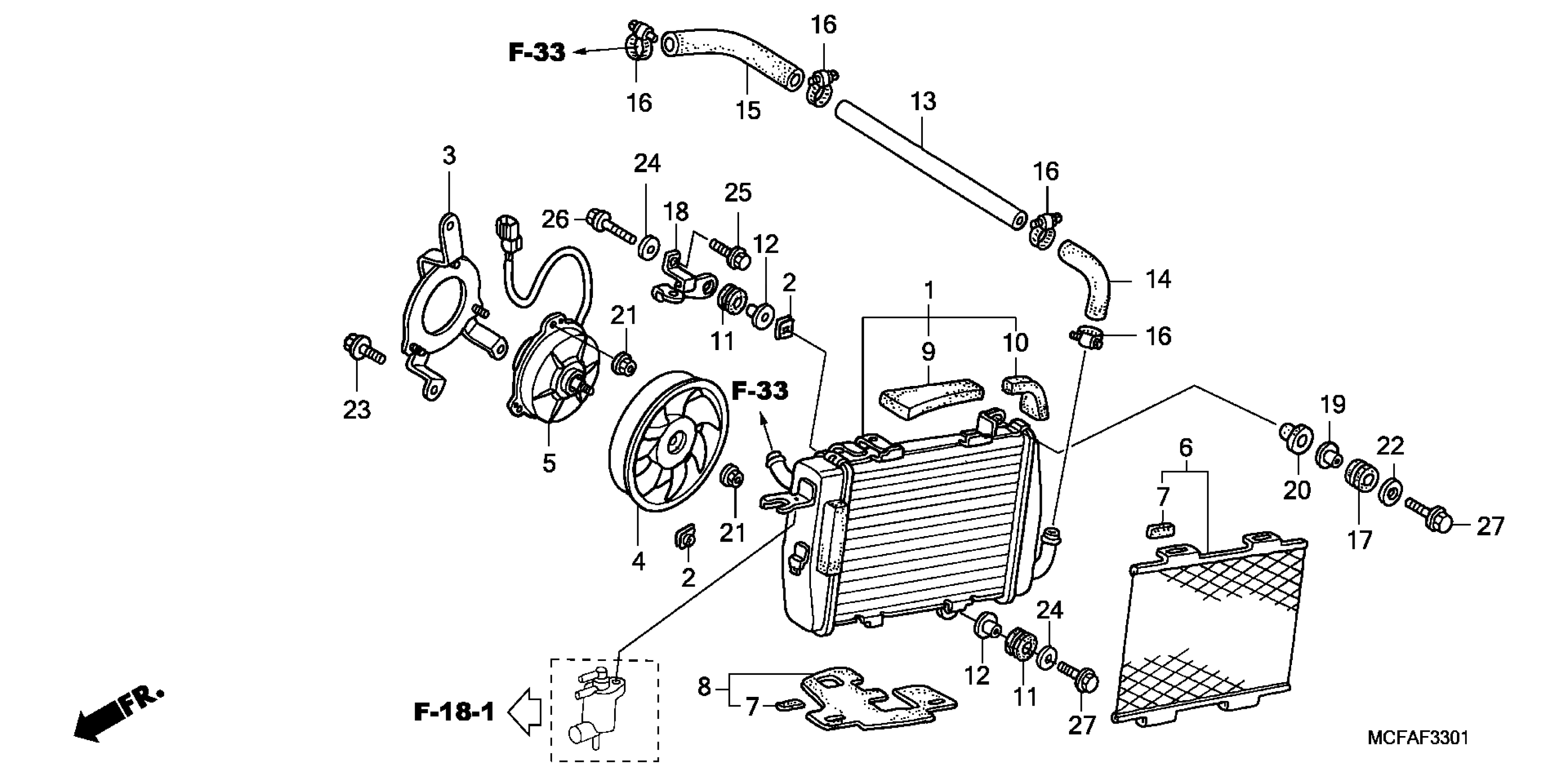

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 RADIATOR (L.) Diagram

#

Description
Price

1

RADIATOR, L.

19010-MCF-D31

Unavailable

2

NUT, SETTING

19014-KEA-003

$3.10

3

SHROUD, L.

19015-MCF-D31

Unavailable

4

FAN, COOLING

19020-MCF-D31

Unavailable

5

MOTOR ASSY., FAN

19030-MCF-D31

Unavailable

6

GRILLE, RADIATOR

19032-MCF-D00

Unavailable

7

CUSHION, RADIATOR GRILLE

19033-MBB-300

$2.90

8

GUIDE B, L. RADIATOR (INNER)

19037-MCF-D30

Unavailable

9

MAT A, L. RADIATOR

19039-MCF-D30

Unavailable

10

MAT B, L. RADIATOR

19049-MCF-D30

Unavailable

11

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

12

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

13

PIPE, WATER

19506-MCF-000

Unavailable

14

HOSE F, RADIATOR

19507-MCF-000

$13.05

15

HOSE H, RADIATOR

19510-MCF-000

$15.67

16

CLAMP, HOSE (24-32MM)

19516-ML7-691

$14.40

17

RUBBER, TAILLIGHT

33712-KT1-670

$4.48

18

STAY C, L. COWL (UPPER)

64512-MCF-D50

$8.52

19

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

20

NUT, SPECIAL (6MM)

90301-MBY-003

$5.66

21

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

22

WASHER (6MM)

90485-MB2-000

$1.91

23

BOLT-WASHER (6X14)

93401-06014-07

$1.62

24

WASHER, PLAIN (6MM)

94103-06700

$1.49

25

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

26

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

27

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
