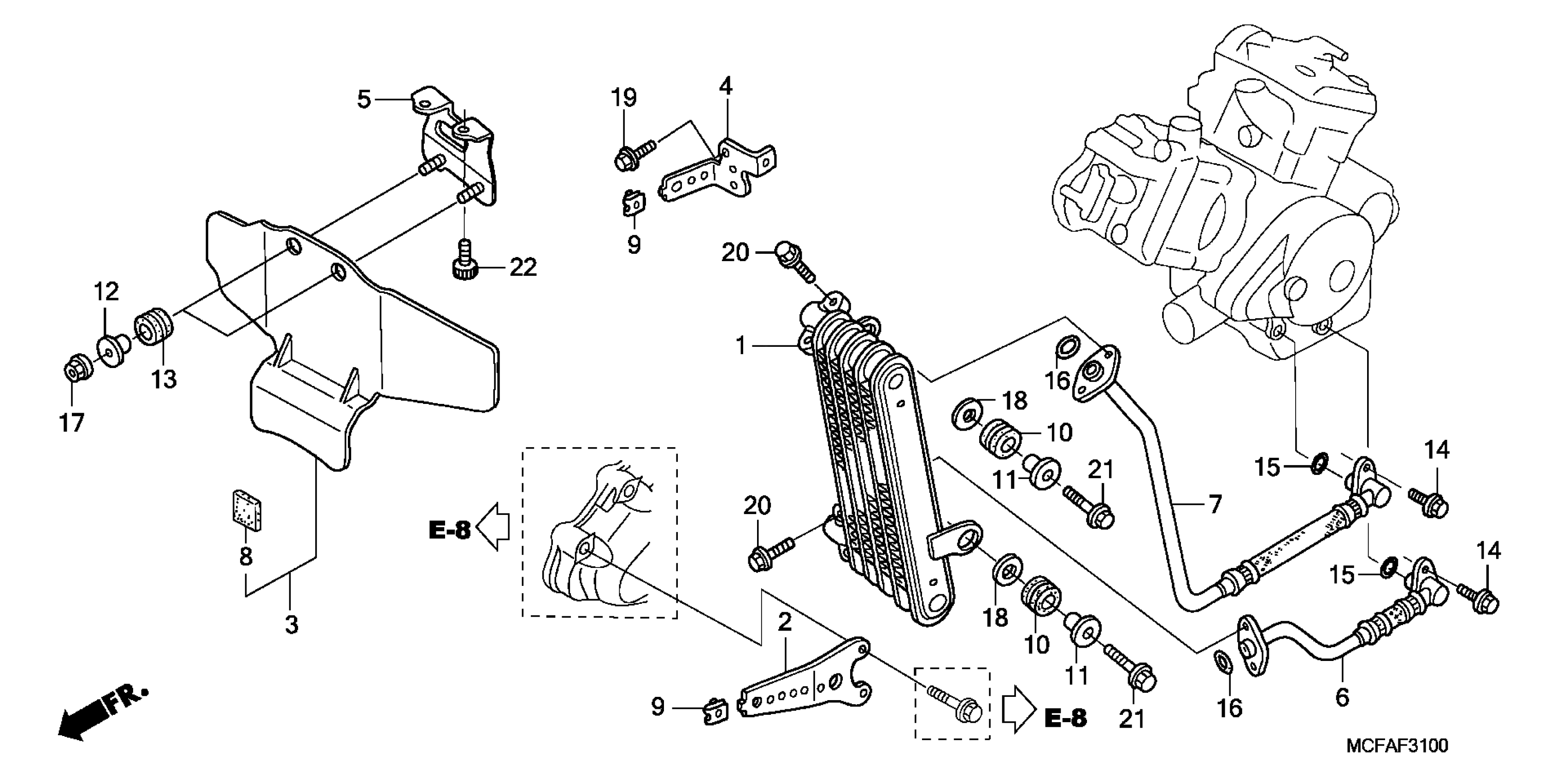

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 OIL COOLER Diagram

#

Description
Price

1

COOLER, OIL

15600-MCF-D51

Unavailable

2

STAY, OIL COOLER

15601-MCF-D30

Unavailable

3

PLATE, AIR GUIDE

15602-MCF-D30

Unavailable

4

STAY, OIL COOLER (UPPER)

15603-MCF-D30

Unavailable

5

STAY, AIR GUIDE PLATE

15606-MCF-D30

Unavailable

6

HOSE A, OIL

15650-MCF-D30

Unavailable

7

HOSE B, OIL

15660-MCF-D30

Unavailable

8

RUBBER, FUEL TANK

17525-GBC-300

$1.95

9

NUT, SETTING

19014-KEA-003

$3.10

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

11

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$5.14

12

COLLAR, SETTING

61104-422-000

$6.91

13

RUBBER, SCREEN SETTING

64216-GJ2-730

$4.48

14

BOLT, FLANGE (8X22)

90103-MJ1-010

$1.93

15

O-RING (11.1X3.5)

91255-MJ1-000

$2.92

16

O-RING (12X3)

91314-MCF-000

$2.92

17

NUT, FLANGE (6MM)

94050-06070

$1.49

18

WASHER, PLAIN (6MM)

94103-06700

$1.49

19

BOLT, FLANGE (6X18)

96001-06018-07

$1.49

20

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

21

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

22

BOLT, SOCKET (6X14)

96600-06014-00

$4.07
