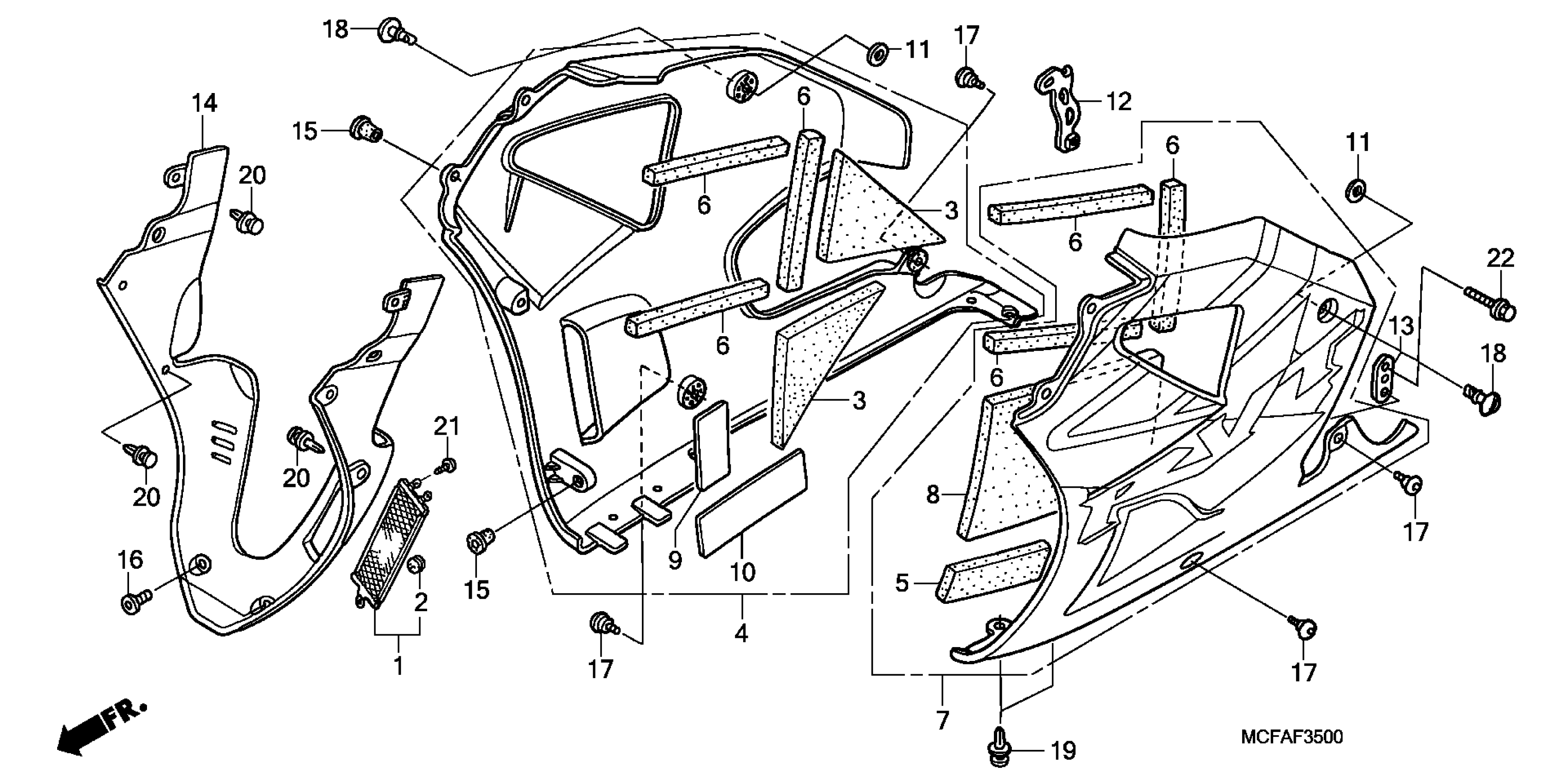

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 LOWER COWL Diagram

#

Description
Price

1

GRILLE, OIL COOLER

15604-MCF-D30

Unavailable

2

GROMMET, CHOKE ROD

16613-883-610

$2.20

3

MAT B, MIDDLE COWL

64252-MT4-700

$7.88

4

COWL SET, R. (LOWER) (TYPE1) (WL)

64400-MCF-A60ZA

Unavailable

5

MAT A, COWL (LOWER)

64412-MCF-300

$12.00

6

SEAL A, COWL (LOWER)

64413-MCF-300

$6.54

7

COWL SET, L. (LOWER) (TYPE1) (WL)

64450-MCF-A60ZA

$854.03

8

MAT B, L. COWL (LOWER)

64462-MCF-300

Unavailable

9

GUARD A, HEAT

64464-MCF-300

Unavailable

10

GUARD B, HEAT

64465-MCF-300

Unavailable

11

WASHER (9X17X1) This part replaces 64509-MK4-000.

90511-MCS-G50

$1.85

12

STAY C, R. COWL (LOWER)

64517-MCF-D30

$7.54

13

STAY C, L. COWL (LOWER)

64518-MCF-D30

$2.98

14

COWL (LOWER) (INNER) *NH1* (BLACK)

64560-MCF-D30ZA

Unavailable

15

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

16

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

17

SCREW, PAN (6X14)

90113-MM5-000

$3.10

18

STUD (9X15) This part replaces 90641-MCF-000.

90641-MCF-010

$6.95

19

CLIP, BODY

90683-MBW-003

$2.16

20

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

21

SCREW, TAPPING (4X10)

93903-24280

$1.49

22

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
