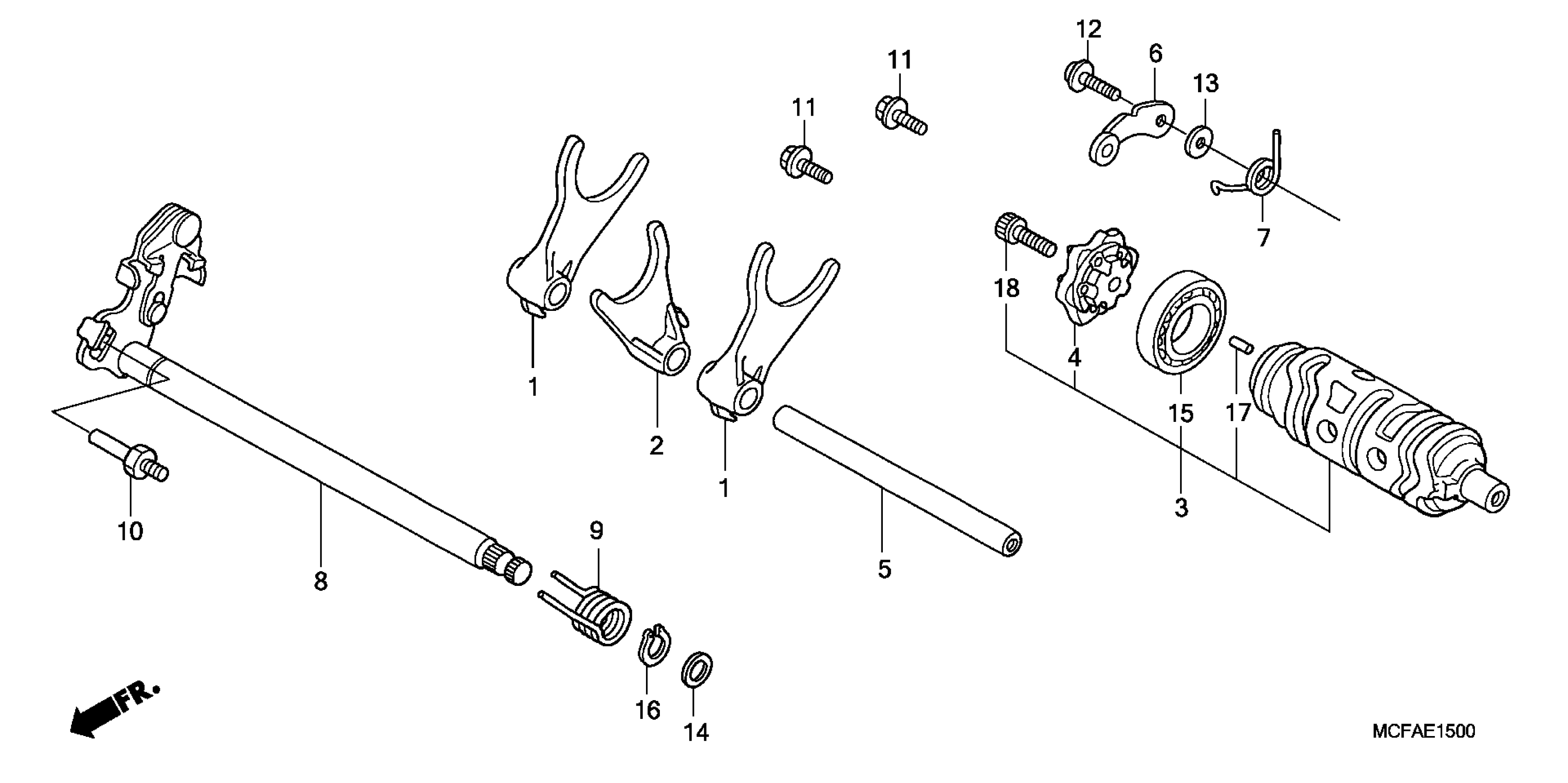

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 GEARSHIFT DRUM Diagram

FORK, GEARSHIFT

24211-MCF-000

Unavailable

FORK, CENTER GEARSHIFT

24212-MBB-000

$69.54

DRUM, GEARSHIFT

24310-MCF-000

Unavailable

CENTER, SHIFT DRUM

24315-MAS-E00

$36.44

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

STOPPER, DRUM

24430-MBB-000

$19.18

SPRING, GEARSHIFT DRUM STOPPER

24435-MCF-000

Unavailable

SPINDLE, GEARSHIFT

24610-MCF-000

Unavailable

SPRING, SHIFT RETURN

24651-MAS-E00

$5.89

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

PIVOT, SHIFT DRUM STOPPER ARM

90022-MY5-600

$11.61

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER (14MM)

90451-155-000

$3.78

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
