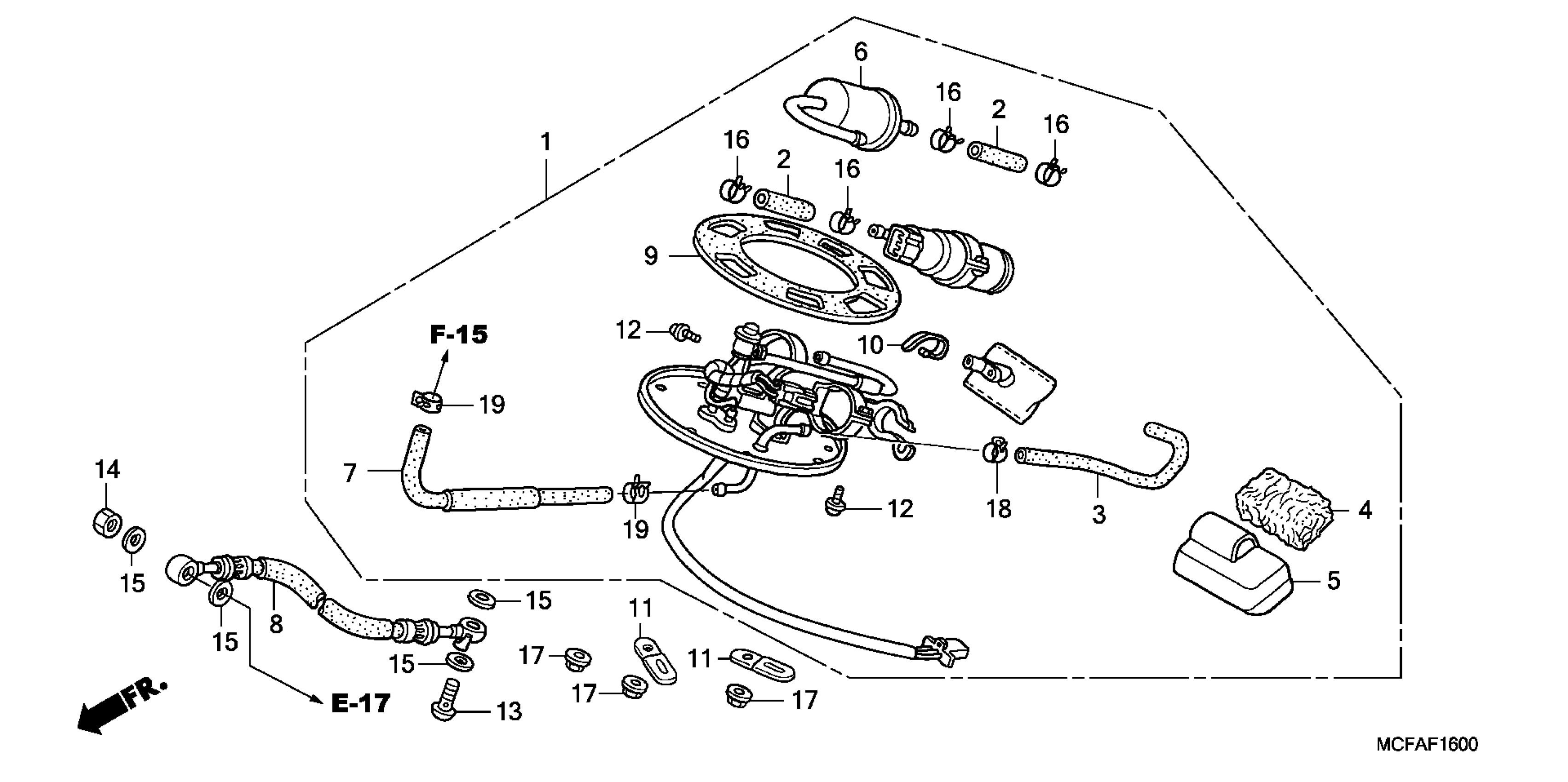

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 FUEL PUMP Diagram

PUMP UNIT, FUEL

16700-MCF-D61

Unavailable

HOSE A, PUMP

16711-MCF-000

Unavailable

TUBE, FUEL PUMP RETURN

16713-MCF-000

$9.61

FILTER, FUEL RETURN

16714-MBG-000

$8.20

RUBBER, FUEL PUMP UNIT This part replaces 16716-MEF-000.

16716-MCT-D60

$8.37

FILTER, FUEL

16900-MBG-013

$62.49

HOSE A, FUEL RETURN

17525-MCF-003

Unavailable

HOSE, FUEL FEED

17527-MCF-003

Unavailable

GASKET, BASE

17574-MCF-000

$14.30

BAND, WIRE

32161-KM3-003

$2.58

CLIP, PULSER WIRE

32925-958-000

$2.72

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.38

BOLT, BANJO (12MM)

90108-MBG-000

$9.39

NUT A, SEALING (12MM)

90201-PD1-000

$4.53

WASHER, SEALING (12MM)

90428-PD6-003

$4.84

CLAMP, TUBE (D12)

91405-PD1-004

$8.06

NUT, FLANGE (6MM)

94050-06080

$0.59

CLAMP, TUBE (D8.5)

95002-40850-04

$2.30

CLAMP, TUBE (D10.5)

95002-41050-08

$2.30
