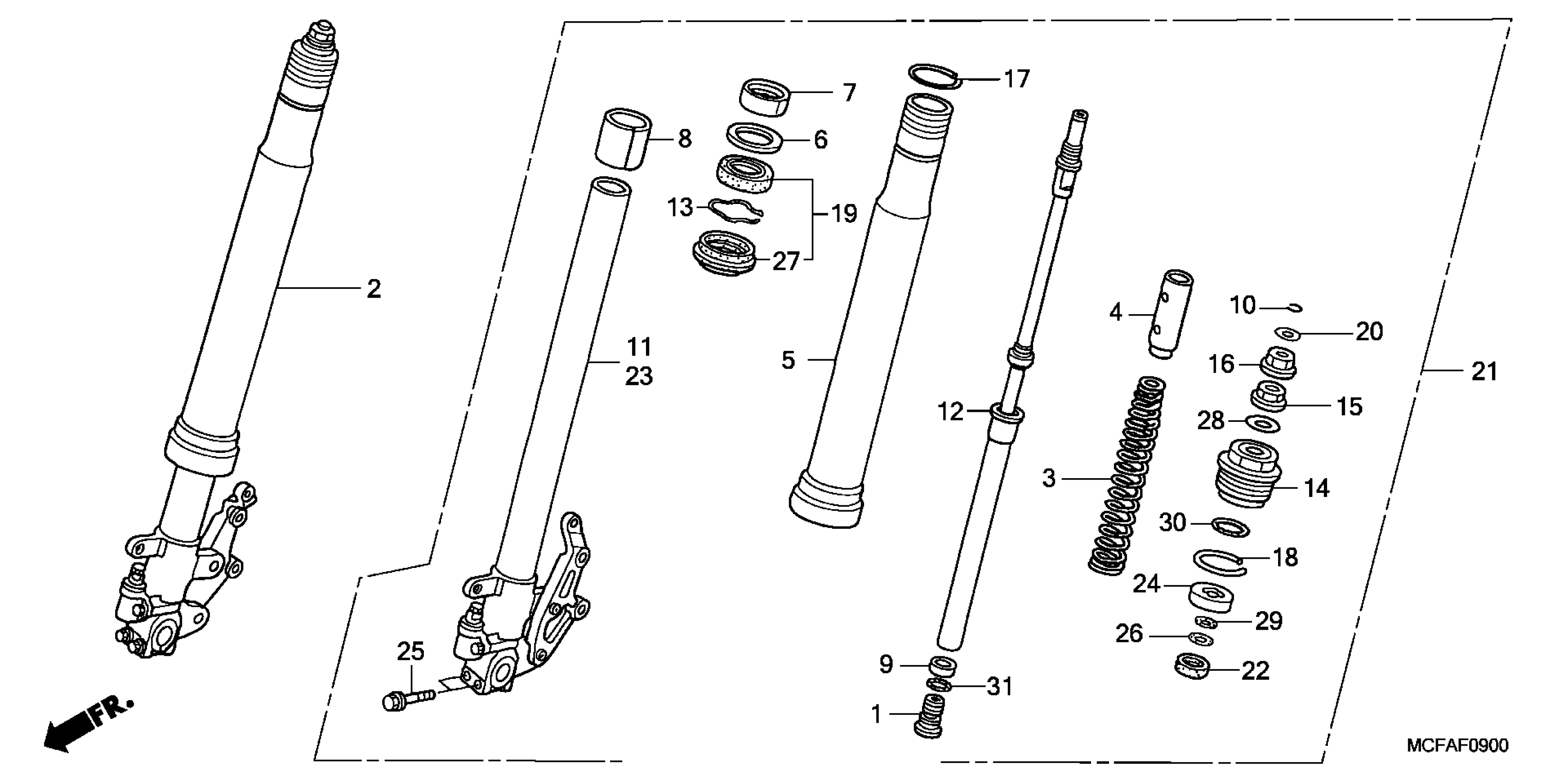

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 FRONT FORK Diagram

#

Description
Price

1

BOLT, SOCKET

51126-MCF-003

Unavailable

2

FORK ASSY., R. FR.

51400-MCF-D31

Unavailable

3

SPRING, FR. FORK

51401-MCF-D31

Unavailable

4

COLLAR, SPRING

51403-MCF-003

$32.00

5

TUBE (OUTER)

51410-MCF-D31

Unavailable

6

RING, BACK-UP

51412-KA4-711

$9.65

7

BUSH, GUIDE

51414-MCF-003

$10.76

8

BUSH, SLIDER

51415-MCF-003

$7.95

9

PLATE, CENTERING

51421-MCF-003

Unavailable

10

RING B, STOPPER

51423-MCJ-751

$2.92

11

PIPE, R. SLIDE

51425-MCF-D31

Unavailable

12

DAMPER, FR.

51430-MCF-D31

Unavailable

13

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

14

BOLT, FR. FORK

51450-MCJ-751

Unavailable

15

NUT, LOCK

51451-MCJ-751

$10.07

16

PLATE B, ADJUSTING

51453-MCJ-751

Unavailable

17

RING, STOPPER

51455-MW4-003

$12.19

18

RING, STOPPER

51456-MCJ-751

Unavailable

19

SEAL SET, FR. FORK

51490-MCF-000

$27.25

20

LABEL

51496-MCJ-751

$4.78

21

FORK ASSY., L. FR. (SHOWA)

51500-MCF-D31

Unavailable

22

RUBBER, STOPPER

51517-MCF-D31

Unavailable

23

PIPE, L. SLIDE

51525-MCF-D31

Unavailable

24

PLATE, SPRING ADJUSTER

53702-MCJ-751

Unavailable

25

BOLT, FLANGE (8X40)

90108-MR7-000

$5.05

26

O-RING (10.8X2.4)

91255-MCJ-751

$2.38

27

DUST SEAL

91256-MCF-003

$14.23

28

O-RING (23.3X2.4) This part replaces 91256-MCJ-751.

91356-KFG-003

$2.52

29

O-RING (9.5X1.5)

91257-MCJ-751

$1.95

30

O-RING (42.2X2.4)

91258-GF4-003

$5.90

31

O-RING (17.8X2.4)

91351-MCF-003

$2.99
