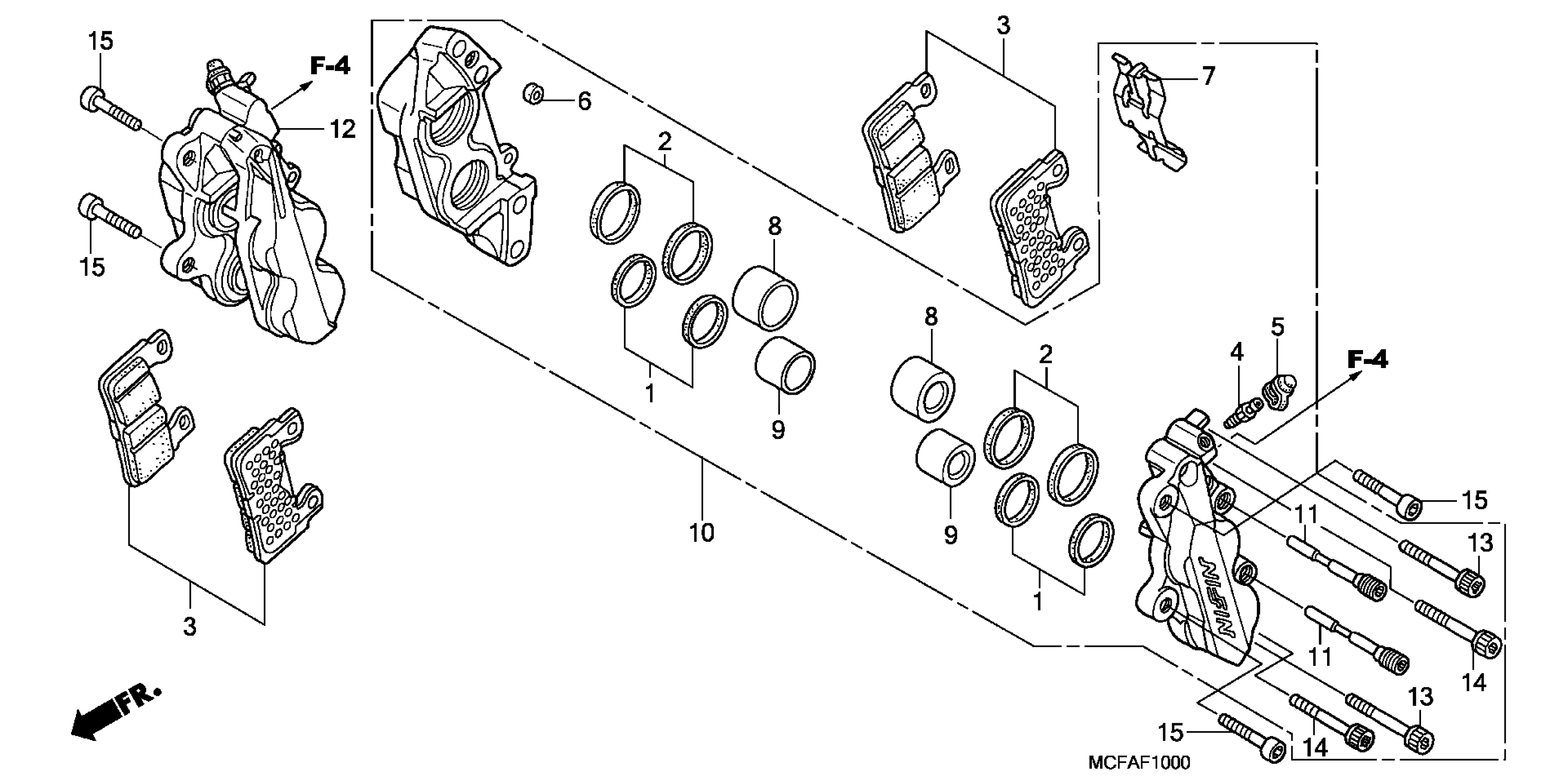

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MCZ-006

$5.56

SEAL SET, PISTON

06451-MCJ-751

$10.62

PAD SET, FR. This part replaces 06455-MBW-E11.

06455-MBW-E13

$40.31

PAD SET, FR. This part replaces 06455-MBW-E12.

06455-MBW-E13

$40.31

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.56

SPRING, PAD

45106-MAS-E01

$8.91

PISTON B This part replaces 45117-MCJ-751.

45117-MCJ-753

$37.25

PISTON A This part replaces 45107-MCZ-006.

45107-MCZ-026

$38.75

CALIPER SUB-ASSY. This part replaces 45150-MCF-D31.

45150-MCF-D32

Unavailable

PIN, HANGER

45215-MAS-E01

$9.51

CALIPER SUB-ASSY. This part replaces 45250-MCF-D31.

45250-MCF-D32

Unavailable

BOLT, TORX (8X35)

90107-MAS-E01

$7.14

BOLT, TORX (8X40)

90108-MAS-E01

$6.87

BOLT, SOCKET (8X30)

90122-MCF-000

$2.72
