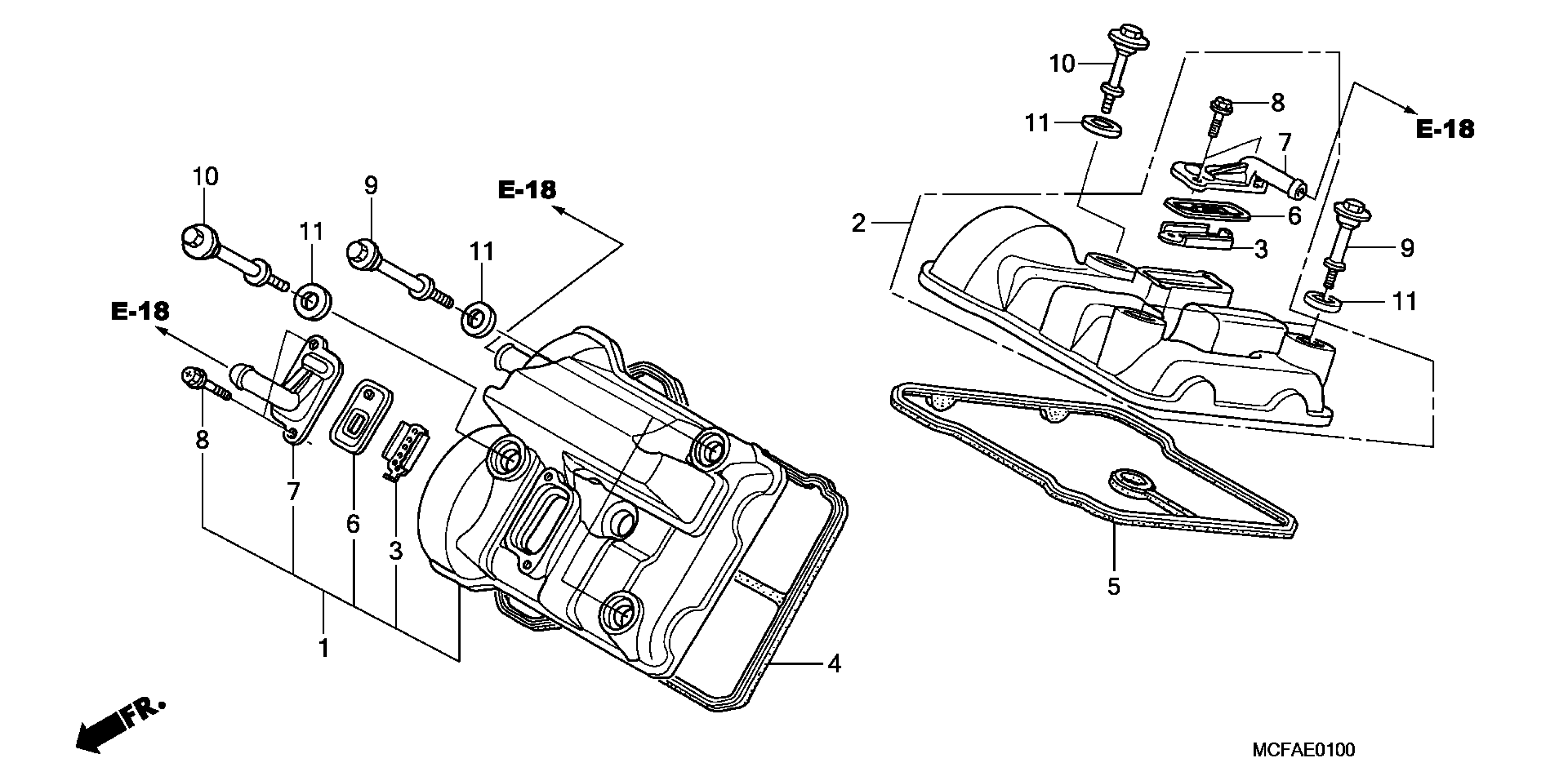

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 CYLINDER HEAD COVER Diagram

COVER, FR. CYLINDER HEAD

12310-MCF-000

Unavailable

COVER, RR. CYLINDER HEAD

12320-MCF-000

Unavailable

PLATE, PORT (AI)

12341-MAT-750

$13.98

GASKET, FR. CYLINDER HEAD COVER

12391-MCF-000

$33.97

GASKET, RR. CYLINDER HEAD COVER

12396-MCF-000

$34.03

VALVE, REED

18601-MCF-003

$28.43

COVER, REED VALVE

18612-MBB-630

$30.07

BOLT, FLANGE (5X12)

90007-892-000

$1.49

BOLT, HEAD COVER

90017-MAL-600

$13.93

BOLT, HEAD COVER

90017-MCF-000

Unavailable

RUBBER, MOUNTING

90543-MV9-670

$4.94
