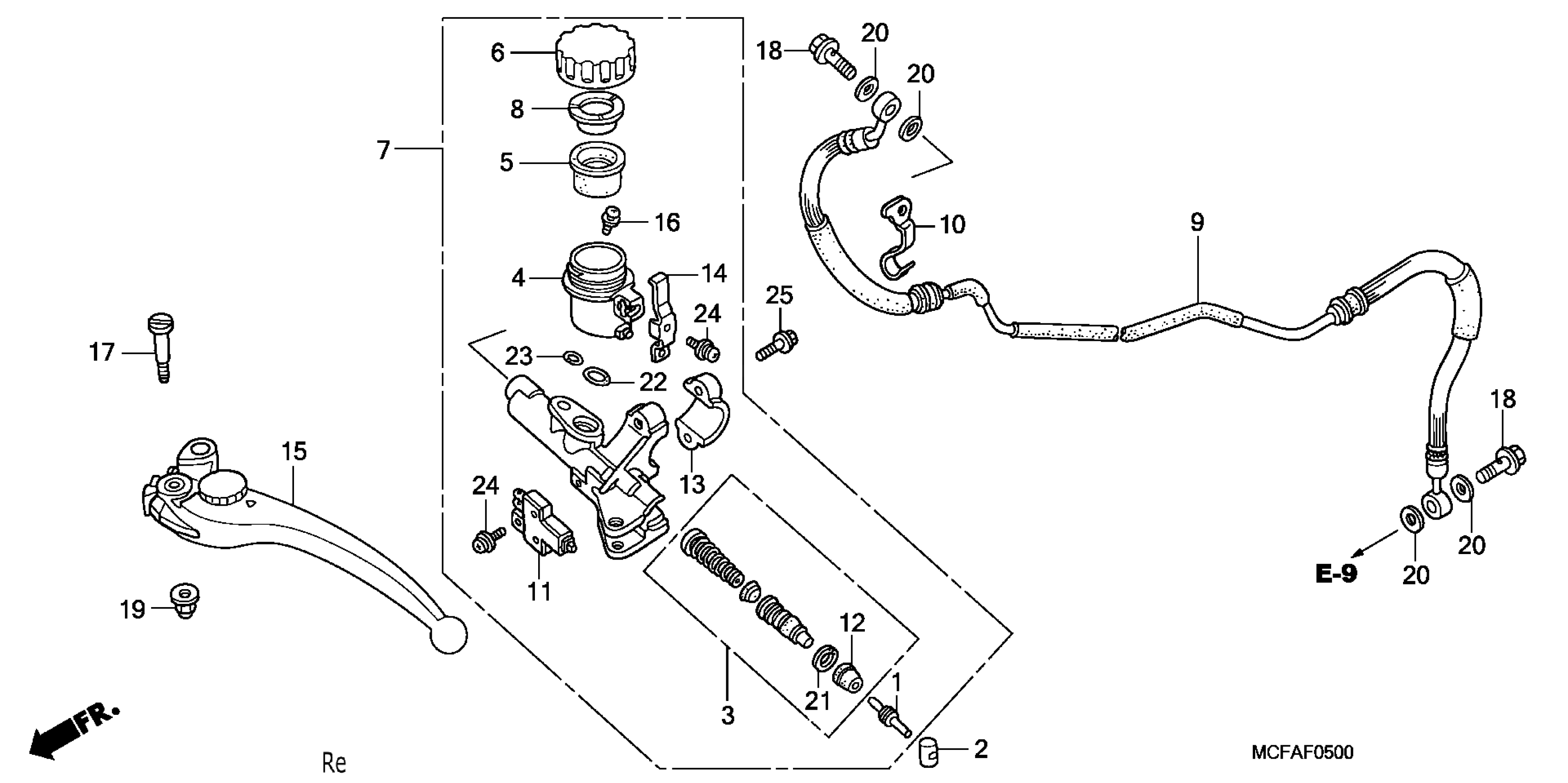

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MAT-E01

$19.35

2

BUSH

22885-MB0-006

$12.95

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$57.04

4

CUP, OIL

22887-MBB-006

$40.13

5

DIAPHRAGM (NISSIN)

22888-MR7-006

$15.17

6

CAP, CLUTCH OIL CUP (NISSIN)

22889-MR7-006

$39.07

7

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MCF-016

Unavailable

8

PLATE, DIAPHRAGM (NISSIN)

22890-MR7-006

$11.64

9

PIPE, CLUTCH

22900-MCF-D31

Unavailable

10

CLAMP, CLUTCH PIPE

22910-MCF-000

Unavailable

11

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

12

BOOT

45504-MAT-E01

$10.65

13

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

14

PLATE, STOP

45535-MR8-901

$5.44

15

LEVER, L. HANDLE This part replaces 53180-MCF-D61.

53180-MCF-D62

$85.41

16

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.92

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

NUT, CAP (6MM)

90201-415-000

$2.05

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP

90651-MA5-671

$2.66

22

O-RING (14.8X2.4)

91212-422-006

$2.56

23

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.85
