Description

Price

1

GASKET, ALTERNATOR COVER

11636-MCF-000

$21.65

2

COVER, ALTERNATOR

11640-MCF-D60

Unavailable

3

GENERATOR ASSY., PULSE

30300-MCF-000

$104.67

4

FLYWHEEL

31110-MCF-003

Unavailable

5

STATOR

31120-MCF-D31

$457.23

6

CLAMP, ALTERNATOR WIRE This part replaces 31131-MR7-000.

31131-MR7-010

$5.08

7

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

8

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

9

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

10

BOLT, FLANGE (12X45)

90023-MBT-010

$7.03

11

CAP (14MM)

90084-MN8-010

$12.82

12

CAP (30MM)

90087-KT7-000

$19.74

13

BOLT, SOCKET (6X40)

90116-375-000

$4.74

14

WASHER (12.5X36X6)

90402-MBB-000

$4.03

15

O-RING (13.8X2.5)

91303-377-000

$3.42

16

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

16

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

17

PIN, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

19

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

20

BOLT, SOCKET (6X8) This part replaces 96600-06010-00.

90016-58G-A00

$2.90

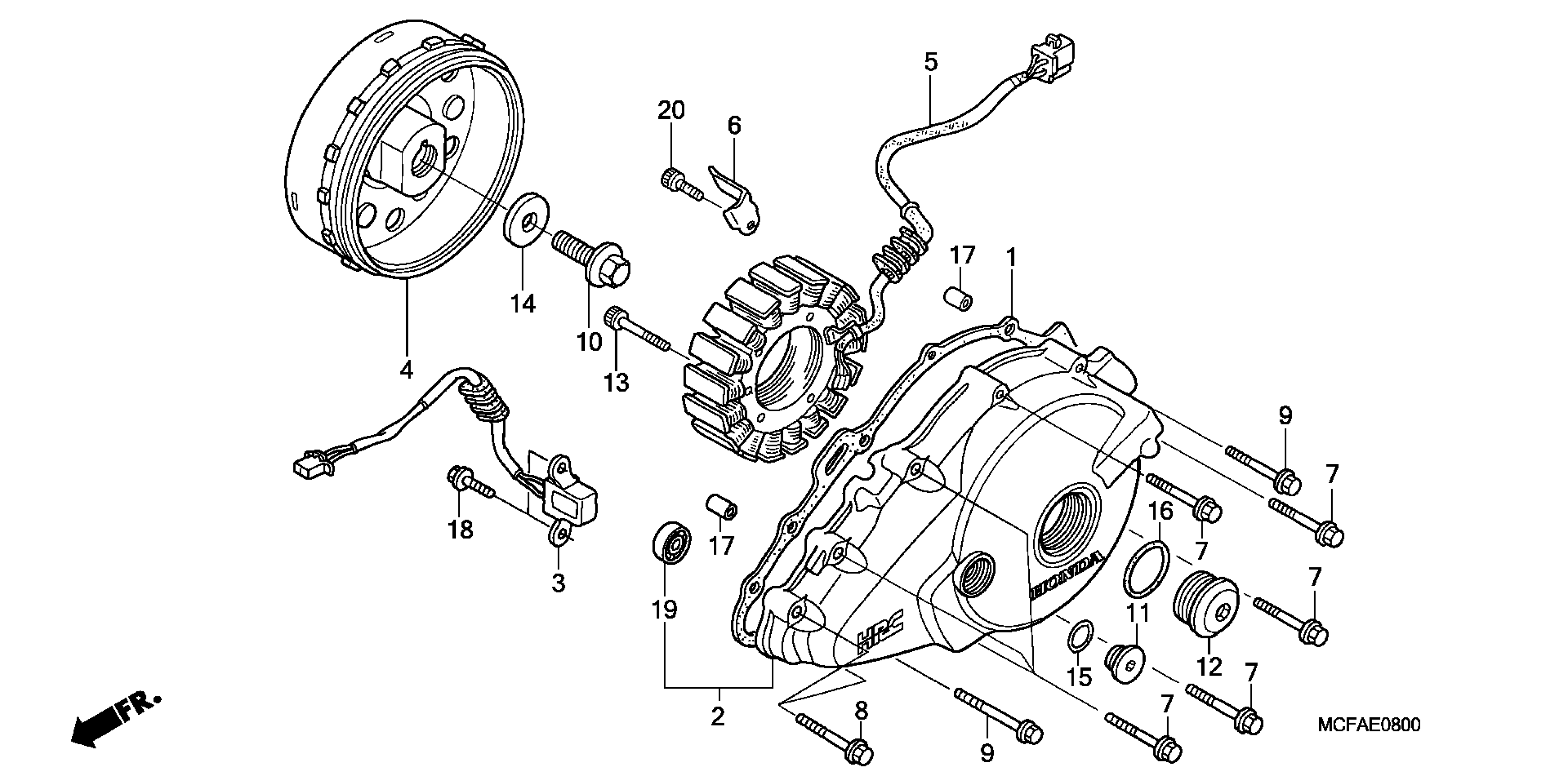

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 ALTERNATOR Diagram

GASKET, ALTERNATOR COVER

COVER, ALTERNATOR

GENERATOR ASSY., PULSE

FLYWHEEL

STATOR

CLAMP, ALTERNATOR WIRE This part replaces 31131-MR7-000.

BOLT, FLANGE (6X32) (NSHF)

BOLT, FLANGE (6X35) (NSHF)

BOLT, FLANGE (6X40) (NSHF)

BOLT, FLANGE (12X45)

CAP (14MM)

CAP (30MM)

BOLT, SOCKET (6X40)

WASHER (12.5X36X6)

O-RING (13.8X2.5)

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

O-RING (29.7X2.4) (NOK)

PIN, DOWEL (8X14)

BOLT, FLANGE (6X14)

BEARING, RADIAL BALL (6000)

BOLT, SOCKET (6X8) This part replaces 96600-06010-00.
