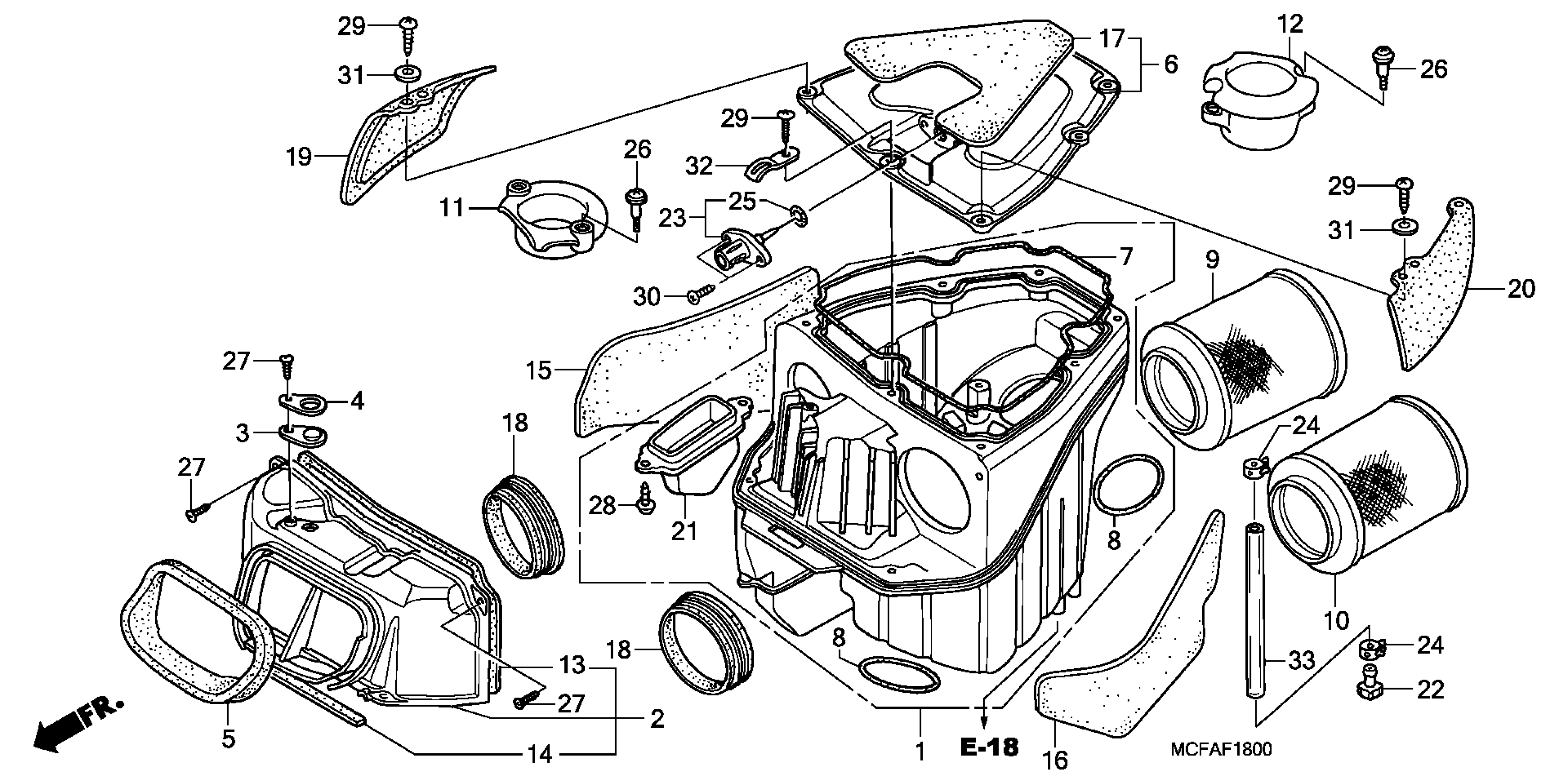

Honda RVT1000RA (06) RC51, JPN, VIN# JH2SC450-6M600001 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17221-MCF-A20

Unavailable

2

COVER, FR. DUCT

17224-MCF-000

$39.90

3

CAP, FR. COVER

17225-MCF-000

Unavailable

4

PLATE, CAP

17226-MCF-000

Unavailable

5

SEAL, FR. DUCT

17229-MCF-000

Unavailable

6

COVER, AIR CLEANER

17231-MCF-000

$51.87

7

SEAL A, AIR CLEANER HOUSING

17232-MCF-300

Unavailable

8

SEAL B, AIR CLEANER HOUSING

17233-MCF-D31

$7.55

9

ELEMENT, AIR CLEANER

17235-MCF-A20

$31.72

10

ELEMENT, AIR CLEANER

17235-MCF-D30

$31.72

11

FUNNEL, FR. AIR

17237-MCF-D31

Unavailable

12

FUNNEL, RR. AIR

17239-MCF-D31

Unavailable

13

SEAL A

17245-MCF-300

$12.11

14

SEAL B

17246-MCF-300

$3.98

15

RUBBER, R. SIDE

17247-MCF-000

$19.26

16

RUBBER, L. SIDE

17248-MCF-000

$19.26

17

RUBBER, AIR CLEANER COVER

17249-MCF-000

Unavailable

18

SEAL, ELEMENT

17256-MCF-000

Unavailable

19

RUBBER, R. AIR CLEANER SIDE

17258-MCF-A20

Unavailable

20

RUBBER, L. AIR CLEANER SIDE

17259-MCF-A20

Unavailable

21

CHAMBER A

17365-MCF-000

$17.67

22

PLUG, BREATHER TUBE

17370-419-700

$3.74

23

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

24

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

25

O-RING (7.5X1.5)

91303-PK2-005

$2.81

26

SCREW, PAN (5MM)

91508-MM5-000

$4.08

27

SCREW, TAPPING (4X12)

93903-24380

$1.49

28

SCREW, TAPPING (5X12)

93903-25280

$1.49

29

SCREW, TAPPING (5X16)

93903-25380

$1.49

30

SCREW, TAPPING (5X16)

93911-25420

$1.49

31

WASHER, SPRING (5MM)

94111-05800

$1.49

32

CLIP (2X50)

94591-25000

$2.31

33

BULK HOSE, VINYL (8X12X8000) (8X12X570)

95003-23008-60M

Unavailable
