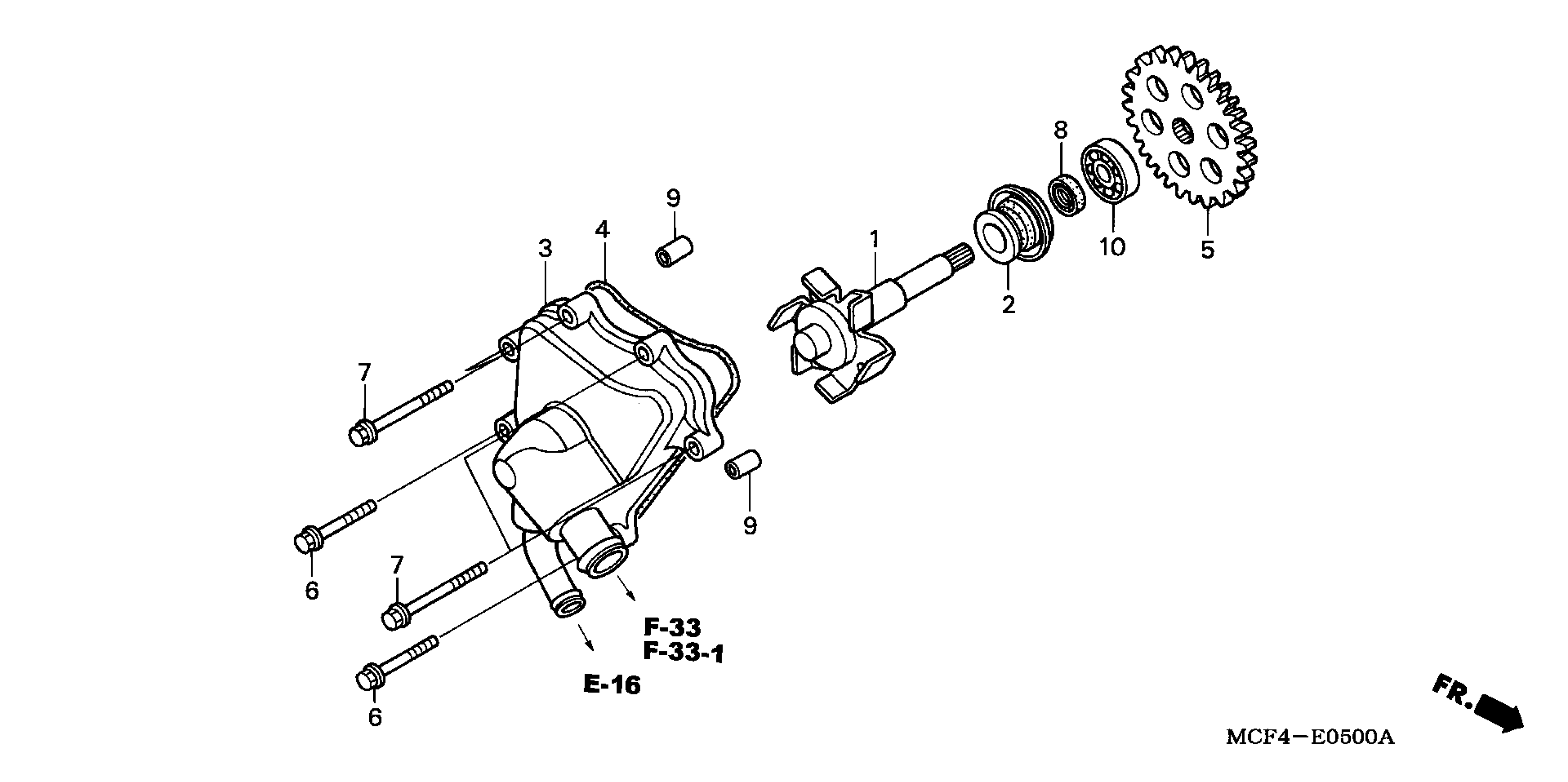

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 WATER PUMP Diagram

#

Description
Price

1

IMPELLER, WATER PUMP

19210-MCF-000

Unavailable

2

SEAL, MECHANICAL

19217-MAL-300

$48.70

3

COVER, WATER PUMP

19220-MCF-000

Unavailable

4

GASKET, WATER PUMP COVER

19226-MCF-000

$9.19

5

GEAR, WATER PUMP DRIVEN

19231-MCF-300

Unavailable

6

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.88

7

BOLT, FLANGE (6X55) (NSHF)

90006-GHB-740

$1.78

8

OIL SEAL (12X22X5) This part replaces 91201-148-003.

91201-965-000

$3.87

8

OIL SEAL (12X22X5)

91201-965-000

$3.87

9

PIN, DOWEL (8X14)

94301-08140

$2.76

10

BEARING, RADIAL BALL (6200)

96100-62003-00

$11.69
