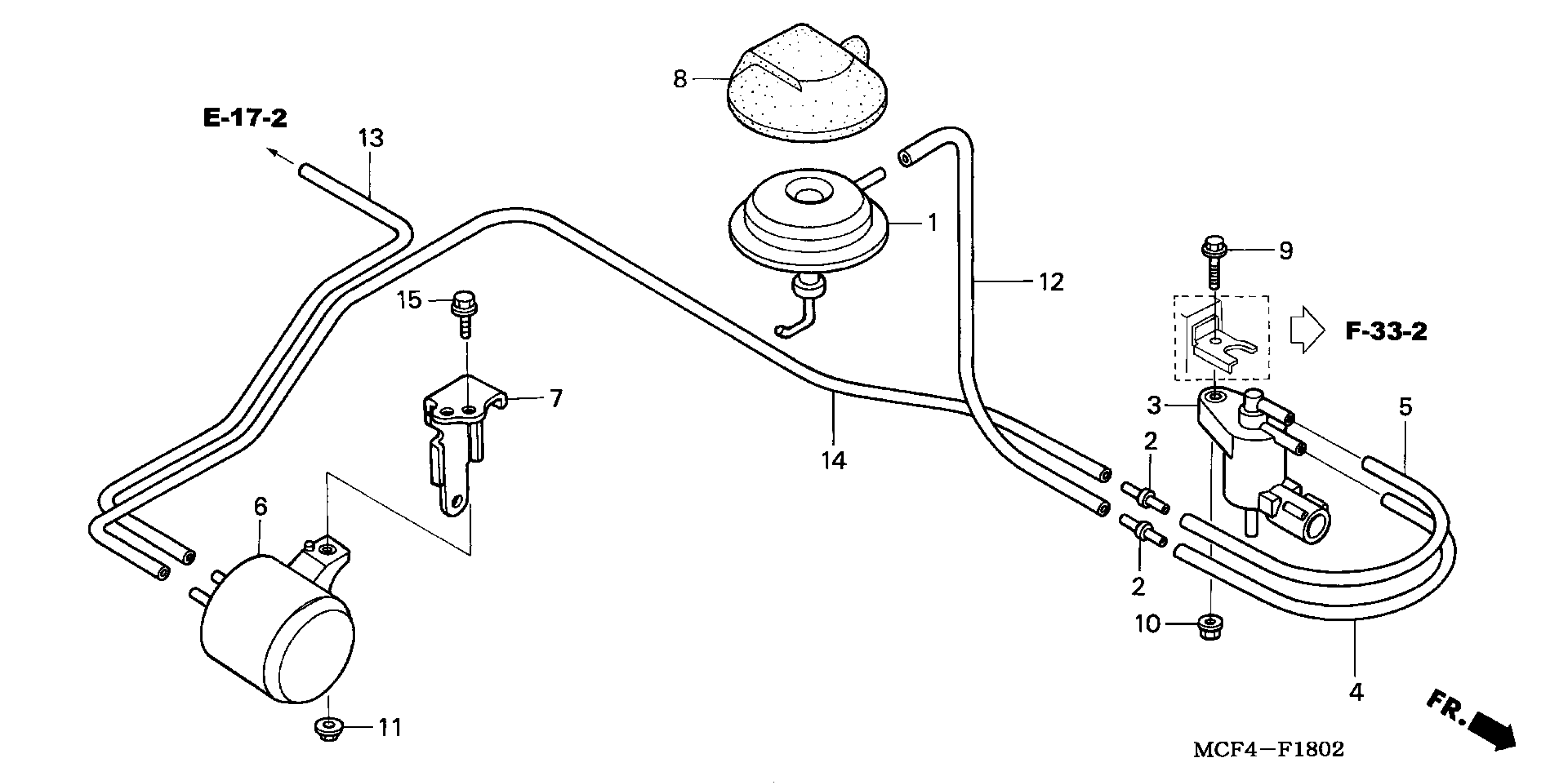

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 VACUUM TANK ('02-'05) Diagram

DIAPHRAGM, CONTROL VALVE

17238-MCF-000

Unavailable

JOINT (3.5) (TWO-WAY)

17414-PC6-660

$6.45

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$294.10

HOSE, SOLENOID VALVE

36164-MCF-000

$4.37

TUBE, SOLENOID VALVE

36166-MCF-D30

$1.89

TANK ASSY., VACUUM

36620-MCF-000

Unavailable

STAY, SOLENOID CHAMBER

50313-MCF-000

Unavailable

COVER, DIAPHRAGM

64533-MCF-000

Unavailable

BOLT-WASHER (5X20)

93401-05020-07

Unavailable

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X170)

95005-35001-20M

$9.67

BULK HOSE, VACUUM (3.5X8000) (3.5X500)

95005-35008-10M

$105.82

BULK HOSE, VACUUM (3.5X8000) (3.5X730)

95005-35008-10M

$105.82

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
