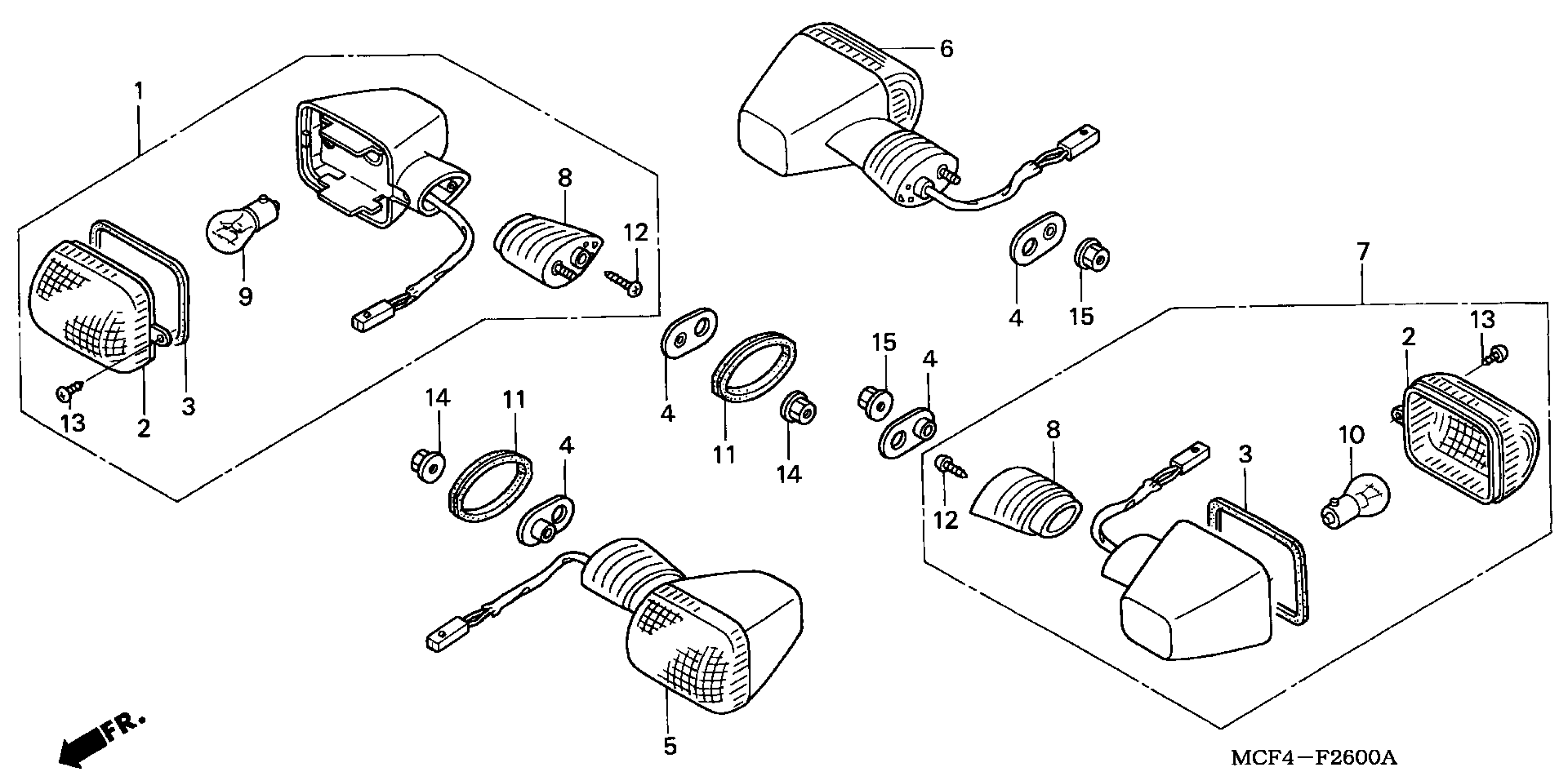

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 TURN SIGNAL Diagram

#

Description

Price

1

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (STANLEY)

33400-MAS-A11

$117.82

2

LENS, TURN SIGNAL

33402-MAS-602

$12.84

3

GASKET, LENS

33407-MAS-601

$4.85

4

PLATE, TURN SIGNAL SETTING

33409-MW0-000

$6.61

5

TURN SIGNAL ASSY., L. FR. (12V 23/8W) (STANLEY)

33450-MAS-A11

$117.82

6

TURN SIGNAL ASSY., R. RR.

33600-MCF-A20

Unavailable

7

TURN SIGNAL ASSY., L. RR. (12V 23W)

33650-MBW-671

Unavailable

8

STAY, TURN SIGNAL

33691-MAS-601

$29.28

9

BULB, TURN SIGNAL

34905-MAS-671

$6.23

10

BULB, TURN SIGNAL (12V 23W)

34906-MAS-671

$4.22

11

RUBBER, FR. TURN SIGNAL

64136-ML7-600

$11.32

12

SCREW, TAPPING (4X20)

93901-34520

$1.49

13

SCREW, TAPPING (4X10)

93903-24280

$1.49

14

NUT, FLANGE (6MM)

94050-06070

$1.49

15

NUT, FLANGE (6MM)

94050-06080

$1.49
