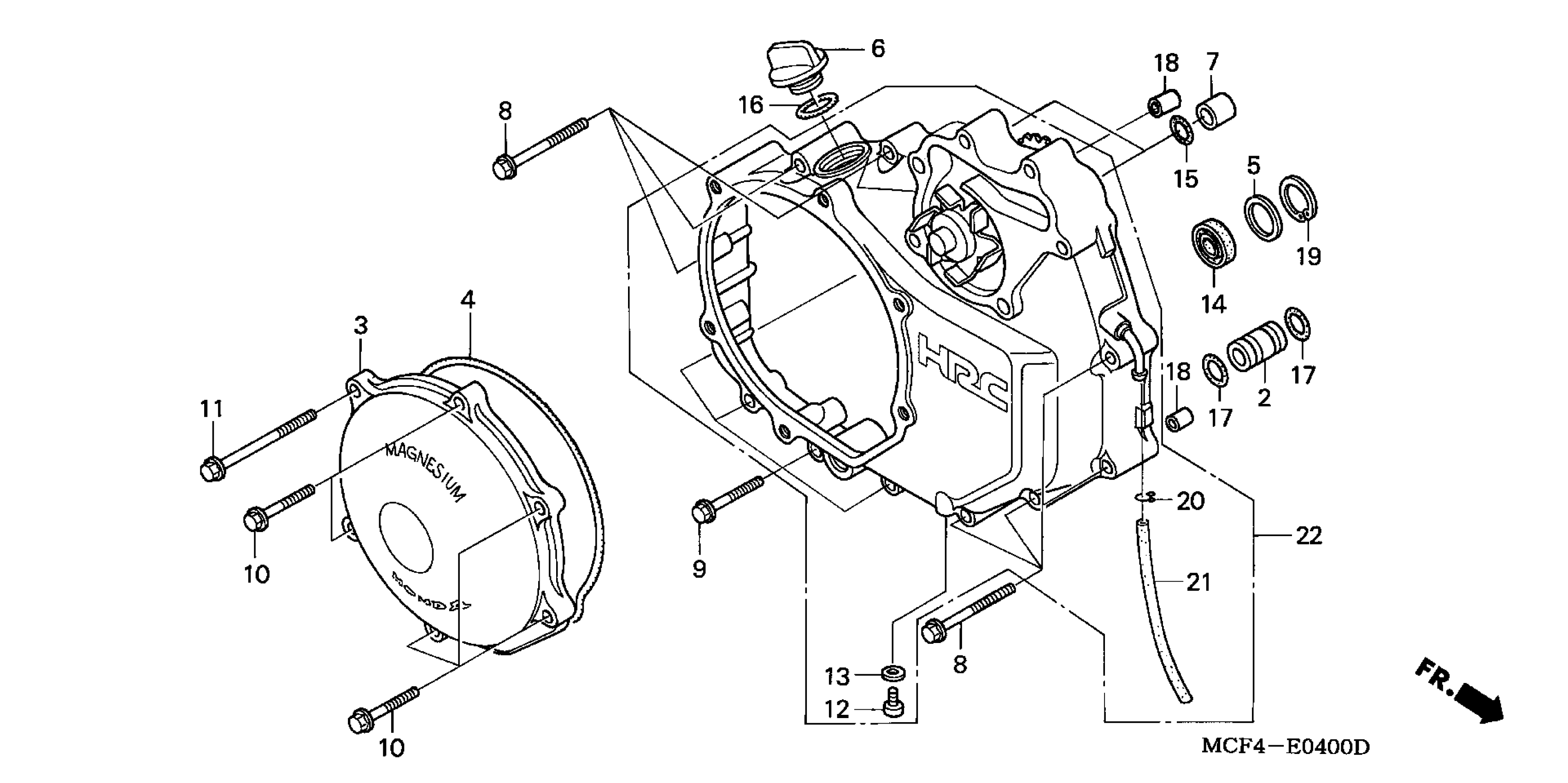

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 RIGHT CRANKCASE COVER Diagram

COLLAR, SPECIAL

11332-MCF-000

Unavailable

COVER, CLUTCH

11350-MCF-D60

Unavailable

GASKET, CLUTCH COVER

11356-MCF-000

$22.72

SEAT, OIL FILTER SPRING

15414-300-000

$3.62

CAP, OIL FILLER

15611-KA4-710

$12.93

COLLAR, FR. FORK (OUTER)

51486-087-711

$5.30

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.75

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.75

BOLT, FLANGE (6X22) (NSHF)

90006-GHB-660

$1.64

BOLT, FLANGE (6X65) (NSHF)

90006-GHB-760

$1.96

BOLT, SEALING (8MM)

90119-SD9-000

$5.07

WASHER C (8MM)

90475-703-000

Unavailable

OIL SEAL (16X30X6.5)

91201-MCF-003

$9.01

O-RING (19.9X3.1) This part replaces 91301-MCF-000.

91301-MCS-A11

$3.21

O-RING (18X3) (ARAI)

91307-KF0-003

$2.67

O-RING (18X2.4)

91310-PH3-003

$2.38

PIN, DOWEL (8X20)

94301-08200

$2.04

CIRCLIP (INNER) (32MM)

94520-32000

$1.61

CLIP, TUBE (B10)

95002-02100

$1.72

BULK HOSE, VACUUM (5.5X8000) (5.3X300)

95005-55008-10M

Unavailable

COVER, R. CRANKCASE

11300-MCF-D30

Unavailable
