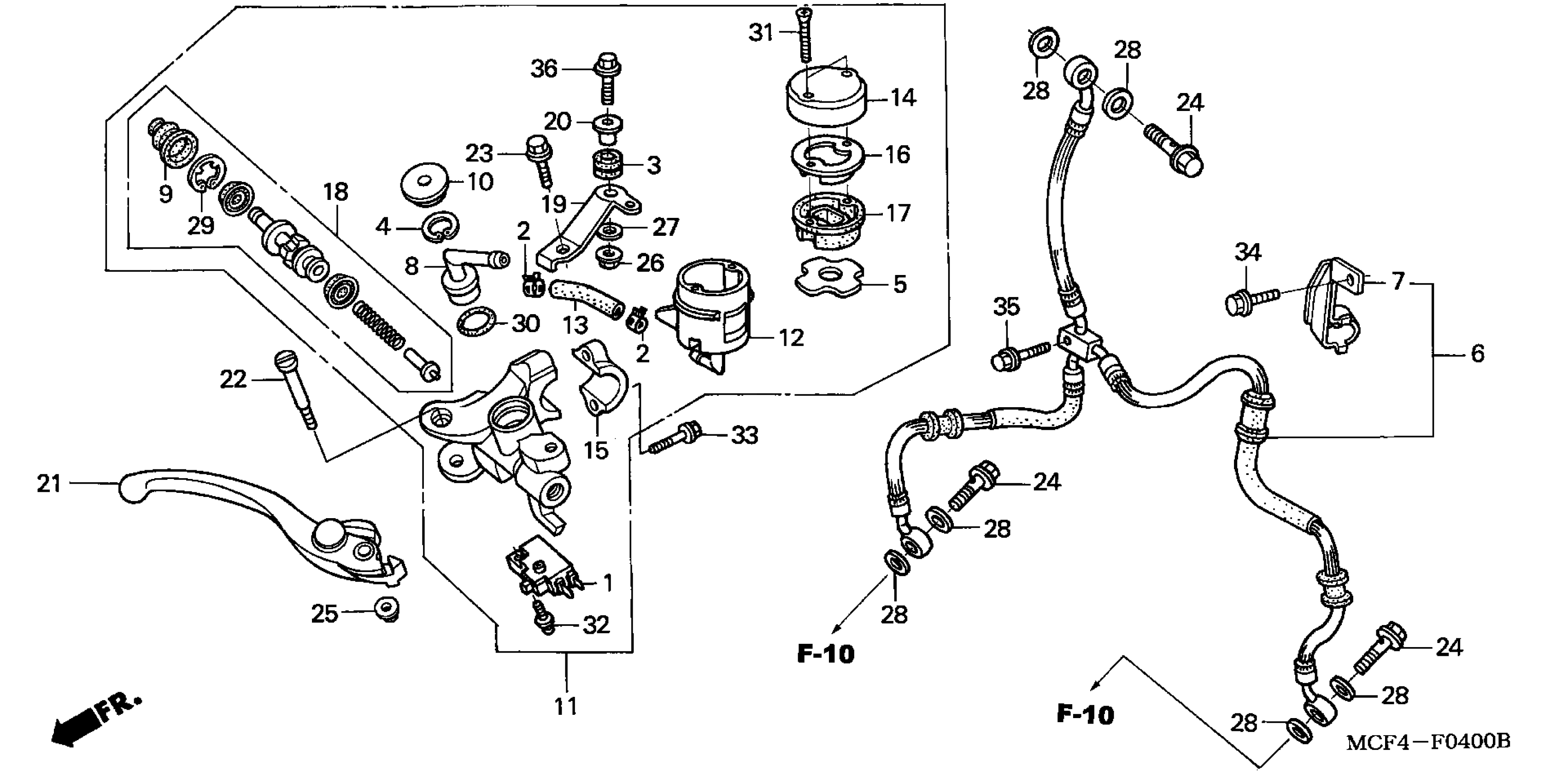

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.72

2

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

3

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.28

4

CIRCLIP, RR. MASTER CYLINDER

43517-KS6-701

$3.65

5

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.12

6

HOSE, FR. BRAKE

45125-MCF-D31

Unavailable

7

CLAMP, FR. BRAKE HOSE

45156-MCF-000

Unavailable

8

CONNECTOR, MASTER CYLINDER

45503-KV3-006

$8.65

9

BOOT

45504-MCF-006

$10.31

10

COVER, DUST (NISSIN)

45505-KV3-006

$3.97

11

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MCF-D31

Unavailable

12

CUP, OIL (NISSIN)

45511-KV3-016

$33.82

13

HOSE, MASTER CYLINDER OIL

45512-MAS-006

Unavailable

14

CAP, OIL CUP (NISSIN)

45513-KV3-006

$32.22

15

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

16

PLATE, DIAPHRAGM (NISSIN)

45518-KV3-006

$11.46

17

DIAPHRAGM (NISSIN)

45520-KV3-006

$12.83

18

MASTER CYLINDER SET

45530-MCJ-751

$52.10

19

STAY, FR. MASTER CYLINDER

45550-MCF-006

Unavailable

20

COLLAR (6.3X13)

50324-425-010

$4.51

21

LEVER ASSY., R. HANDLE

53170-MCJ-751

$58.04

22

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

23

BOLT, FLANGE (6X12)

90117-MR7-000

$2.75

24

BOLT, OIL (10X22)

90145-MS9-612

$6.99

25

NUT, CAP (6MM)

90201-415-000

Unavailable

26

NUT, U (6MM)

90301-MG3-000

$6.60

27

WASHER (6X16)

90473-147-000

$1.28

28

WASHER, OIL BOLT

90545-300-000

$5.79

29

CIRCLIP

90651-MCF-006

$2.09

30

O-RING (14.8X2.4)

91212-422-006

$2.37

31

SCREW, FLAT (4X50)

93600-04050-1G

$0.94

32

SCREW-WASHER (4X12)

93893-04012-07

$1.32

32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

33

BOLT, FLANGE (6X22)

96001-06022-07

$1.71

34

BOLT, FLANGE (6X12)

96300-06012-07

$1.19

35

BOLT, FLANGE (6X25)

96300-06025-07

$1.75

36

BOLT, FLANGE (6X28)

96300-06028-07

$1.66
