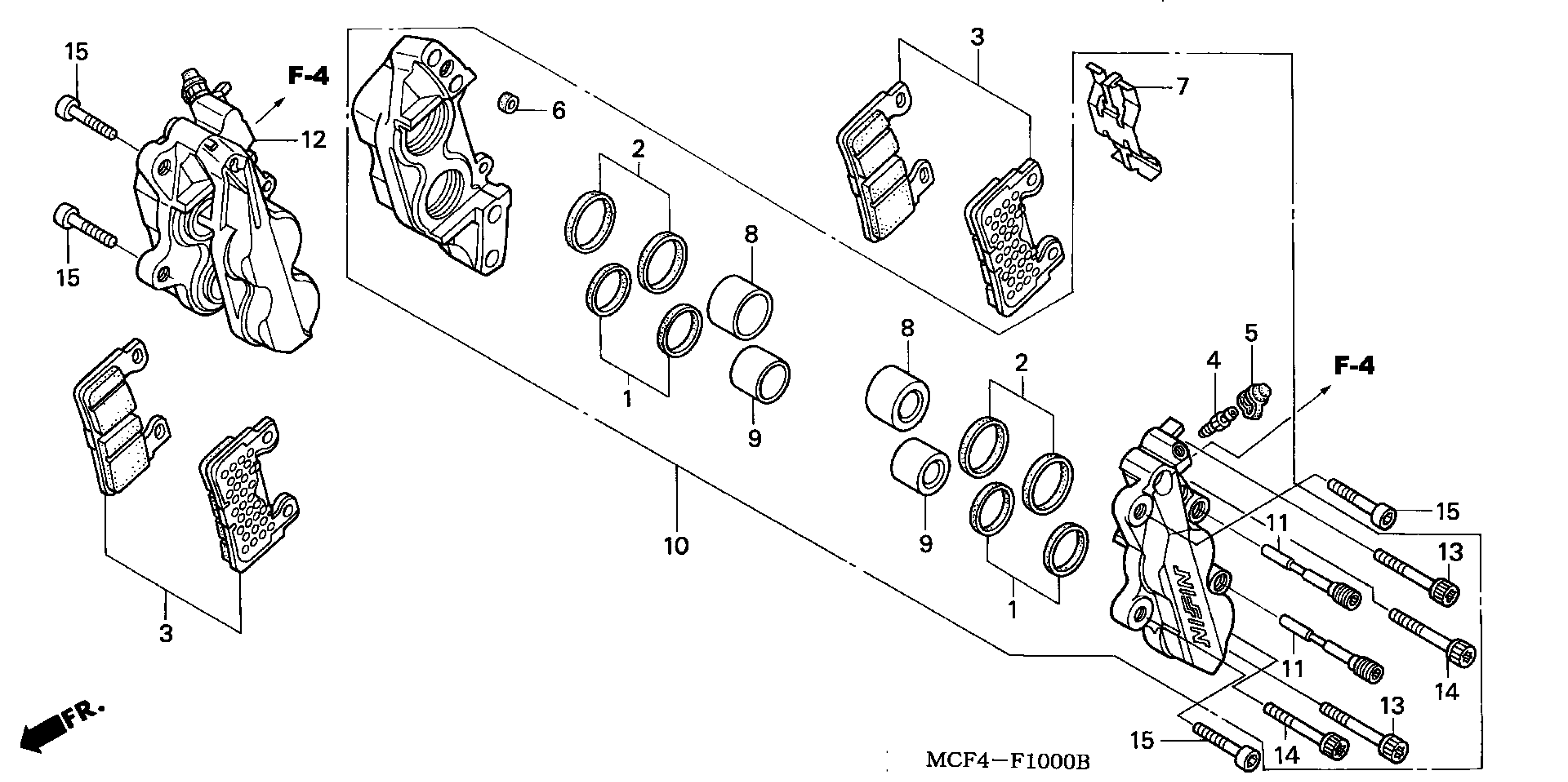

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON

06451-MCZ-006

$5.81

SEAL SET, PISTON

06451-MCJ-751

$11.58

PAD SET, FR. This part replaces 06455-MBW-E11.

06455-MBW-E13

$45.23

PAD SET, FR. This part replaces 06455-MBW-E12.

06455-MBW-E13

$45.23

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SEAL, JOINT (NISSIN)

45103-MR7-006

$3.72

SPRING, PAD

45106-MAS-E01

$9.68

PISTON B This part replaces 45117-MCJ-751.

45117-MCJ-753

$44.33

PISTON A This part replaces 45107-MCZ-006.

45107-MCZ-026

$46.11

CALIPER SUB-ASSY. This part replaces 45150-MCF-D31.

45150-MCF-D32

Unavailable

PIN, HANGER

45215-MAS-E01

$10.35

CALIPER SUB-ASSY. This part replaces 45250-MCF-D31.

45250-MCF-D32

Unavailable

BOLT, TORX (8X35)

90107-MAS-E01

$7.49

BOLT, TORX (8X40)

90108-MAS-E01

$7.20

BOLT, SOCKET (8X30)

90122-MCF-000

$2.92
