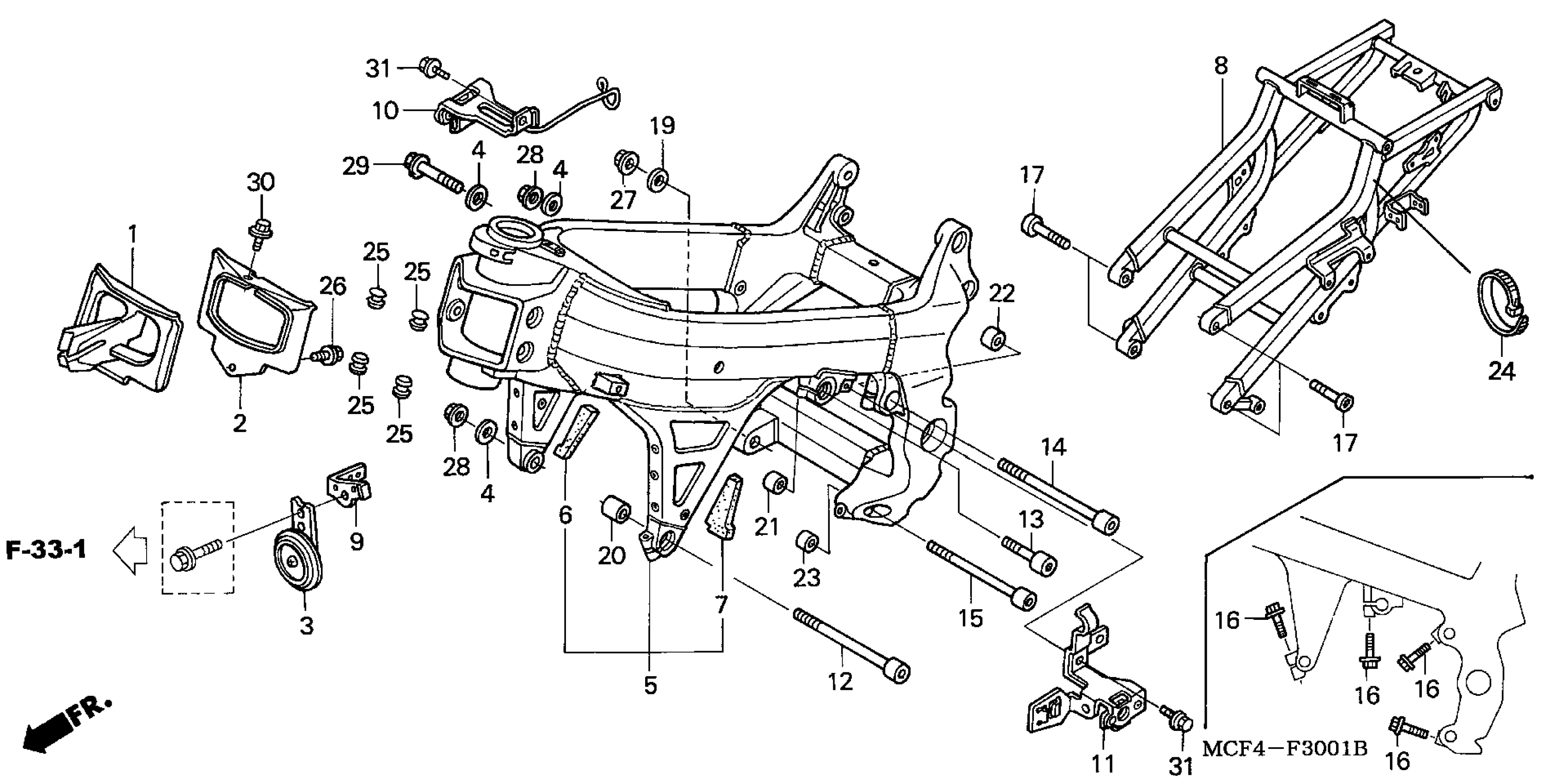

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 FRAME ('02-'05) Diagram

#

Description
Price

1

TUBE, FR. CONNECTING

17263-MCF-D30

Unavailable

2

HOLDER, FR. CONNECTING TUBE

17264-MCF-D30

Unavailable

3

HORN (HIGH) (MITSUBA)

38110-GT8-621

$55.64

4

WASHER A, FR. DISK

45224-KV3-951

$3.21

5

FRAME SET *NH377M* (CORE BLACK METALLIC)

50010-MCF-A20ZA

Unavailable

6

MAT, R. FR. ENGINE HANGER

50191-MCF-D30

Unavailable

7

MAT, L. FR. ENGINE HANGER

50192-MCF-D30

Unavailable

8

RAIL, SEAT

50200-MCF-D30

Unavailable

9

STAY, HORN

50381-MCF-D30

Unavailable

10

STAY B, R. COWL (LOWER)

64515-MCF-D50

$16.95

11

STAY B, L. COWL (LOWER)

64516-MCF-D50

$28.51

12

BOLT, SOCKET (12X259.5)

90101-MCF-D30

Unavailable

13

BOLT, SOCKET (12X55)

90102-MCF-D30

Unavailable

14

BOLT, SOCKET (12X266)

90103-MCF-D30

Unavailable

15

BOLT, SOCKET (10X221)

90104-MCF-D30

Unavailable

16

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

17

BOLT, TORX (10X32)

90108-MCF-000

$3.69

19

WASHER (10MM)

90410-KR0-000

$2.67

20

COLLAR A, ENGINE HANGER

90501-MCF-D30

Unavailable

21

COLLAR B, ENGINE HANGER

90502-MCF-D30

$9.72

22

COLLAR C, ENGINE HANGER

90503-MCF-D30

$7.11

23

COLLAR D, ENGINE HANGER

90504-MCF-D30

$6.46

24

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

25

GROMMET, AIR DUCT

90851-MCF-000

$3.23

26

BOLT-WASHER (5X10)

93401-05010-07

$1.61

27

NUT, FLANGE (10MM)

90303-428-900

$3.35

27

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35

28

NUT, FLANGE (12MM)

94050-12070

$1.49

29

BOLT, FLANGE (12X55)

95801-12055-07

$2.28

30

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

31

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
