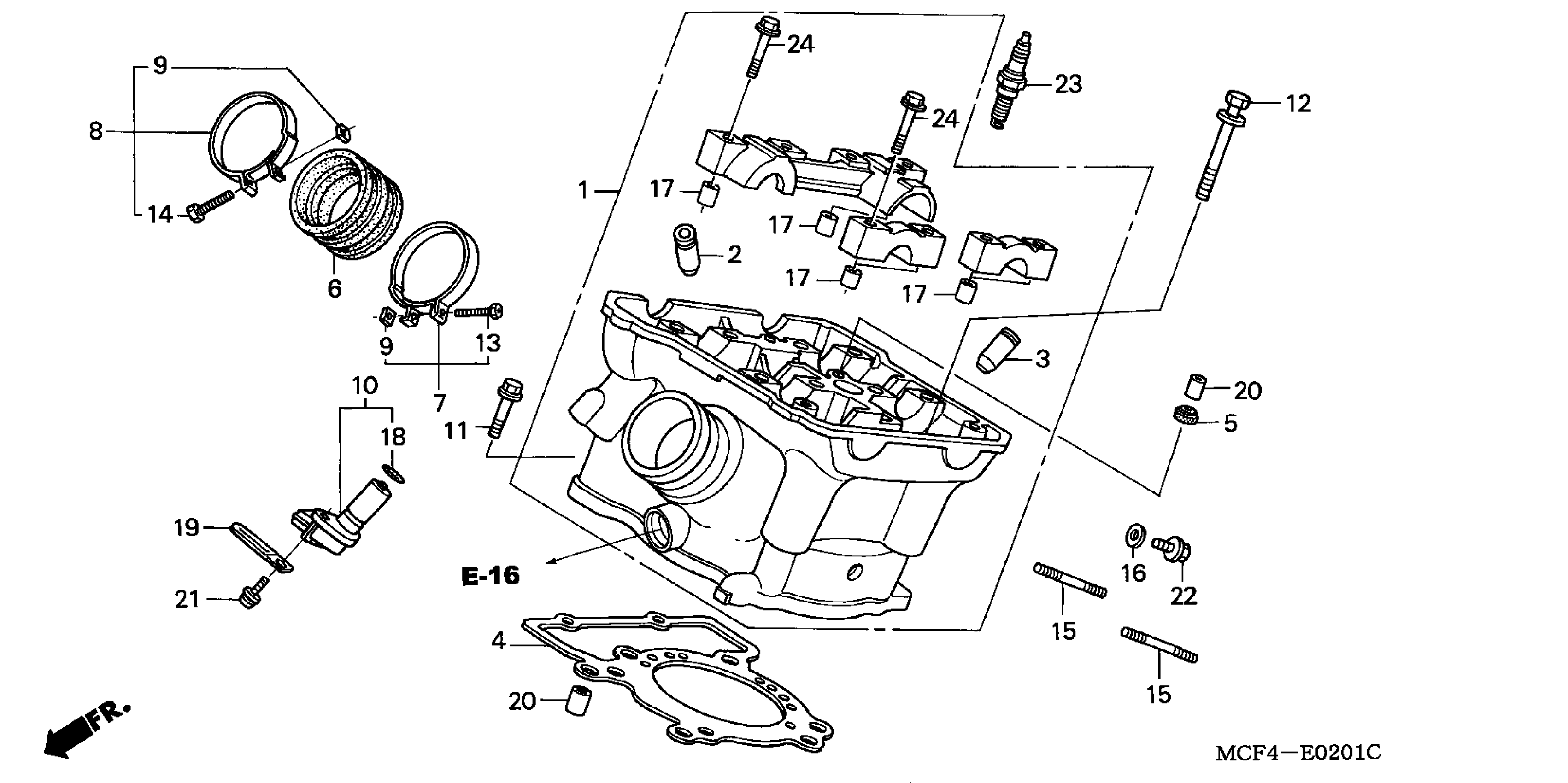

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MCF-D30

$809.74

2

GUIDE, VALVE (OS)

12204-MBB-305

$20.51

3

GUIDE, EX. VALVE (OS)

12205-MCF-305

$22.59

4

GASKET, RR. CYLINDER HEAD

12252-MCF-003

$63.84

5

GASKET B, CYLINDER HEAD COVER

12395-MAT-750

$4.03

6

INSULATOR, THROTTLE BODY

16211-MCF-D30

$50.18

7

BAND, INSULATOR

16218-MCF-000

Unavailable

8

BAND, INSULATOR (GQ51B B)

16219-MCF-670

Unavailable

9

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

10

PICK-UP ASSY.

28810-P7Z-004

$239.11

11

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.22

12

BOLT-WASHER (11X105)

90004-MCF-000

Unavailable

13

BOLT, RECESSED (5X28)

90005-MAS-E00

$3.20

14

BOLT, RECESSED (5X28)

90023-MM5-000

$2.92

15

BOLT, STUD (8X24)

90035-MZ1-000

$6.97

16

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

17

PIN, DOWEL (9X14)

90701-MR7-000

$4.30

18

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.93

19

CLIP (2X60)

91410-679-000

$10.06

20

PIN, DOWEL (10X16)

94301-10160

$2.28

21

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

22

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

23

SPARK PLUG (IFR8H11) (NGK) | (Optional).

31918-MEB-671

$16.03

23

SPARK PLUG (VK24PRZ11) (DENSO) | (Optional).

31918-MEB-672

$14.23

23

SPARK PLUG (VK27PRZ11) (DENSO) This part replaces 31919-MEB-671.

31919-MEB-672

$14.23

23

SPARK PLUG (VK27PRZ11) (DENSO)

31919-MEB-672

$14.23

24

BOLT, FLANGE (7X50)

90002-MCF-000

$2.10
