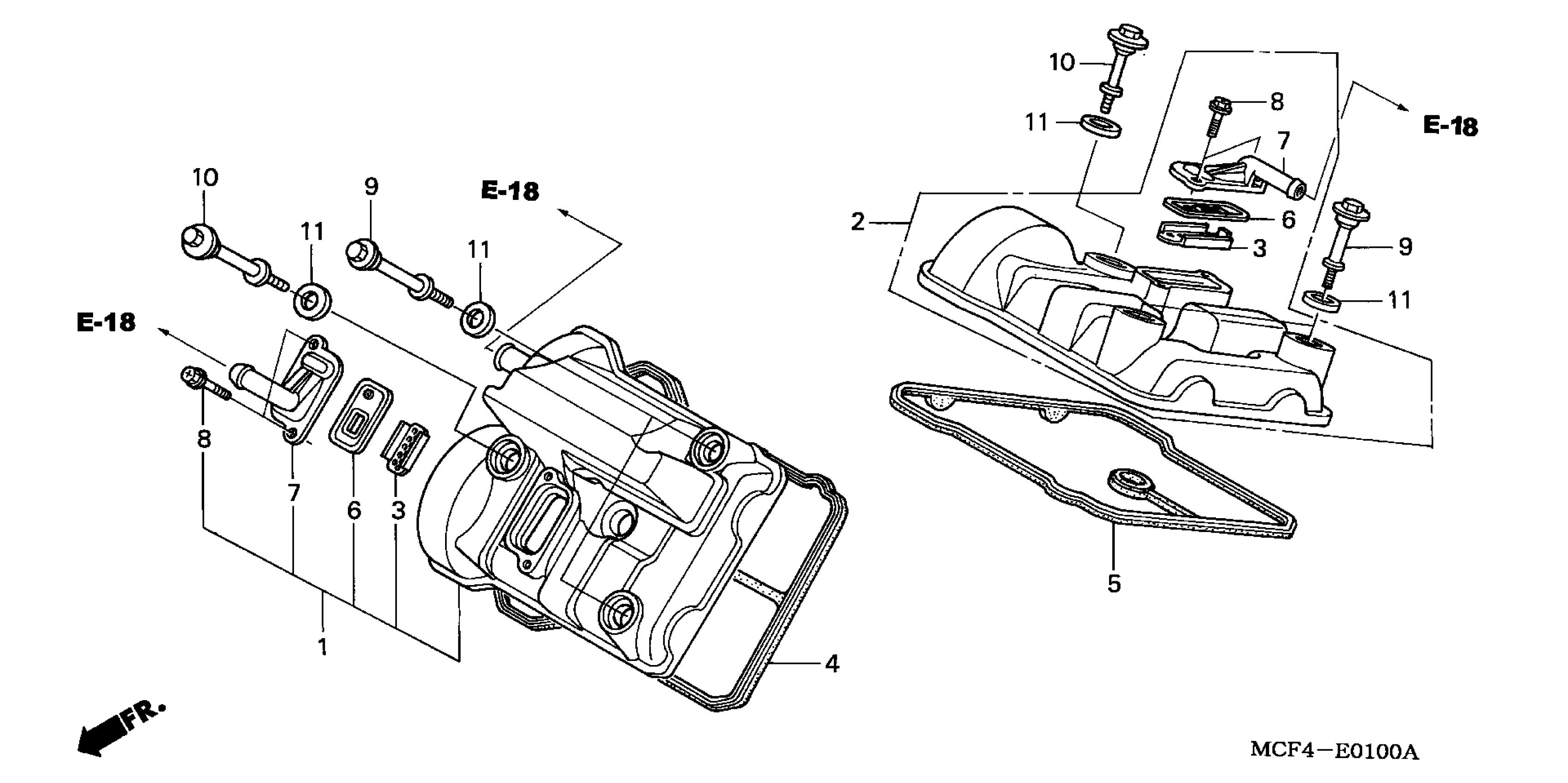

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 CYLINDER HEAD COVER Diagram

COVER, FR. CYLINDER HEAD

12310-MCF-000

Unavailable

COVER, RR. CYLINDER HEAD

12320-MCF-000

Unavailable

PLATE, PORT (AI)

12341-MAT-750

$12.74

GASKET, FR. CYLINDER HEAD COVER

12391-MCF-000

$30.50

GASKET, RR. CYLINDER HEAD COVER

12396-MCF-000

$30.56

VALVE, REED

18601-MCF-003

$25.88

COVER, REED VALVE

18612-MBB-630

$27.38

BOLT, FLANGE (5X12)

90007-892-000

$1.09

BOLT, HEAD COVER

90017-MAL-600

$12.50

BOLT, HEAD COVER

90017-MCF-000

Unavailable

RUBBER, MOUNTING

90543-MV9-670

$4.60
