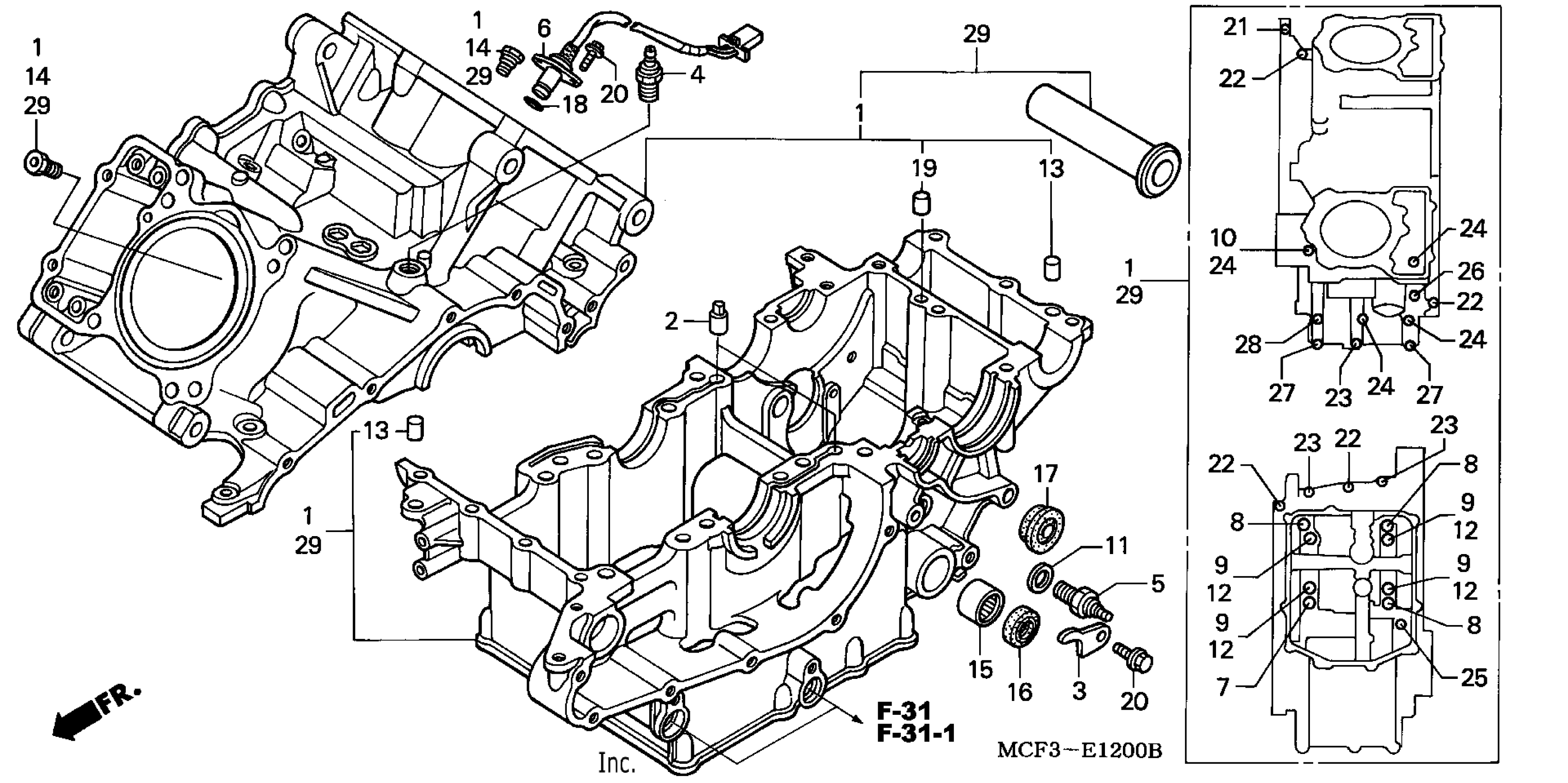

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 CRANKCASE Diagram

#

Description
Price

2

ORIFICE (1.2MM)

11104-MW0-000

Unavailable

3

PLATE, SPINDLE

24612-MAL-600

$8.88

4

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

5

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$16.98

6

SENSOR ASSY., SPEED This part replaces 37700-MAL-601.

37700-MAL-602

Unavailable

7

BOLT-WASHER (10X80)

90001-MBB-003

$7.14

8

BOLT-WASHER (10X115)

90009-MBB-003

$7.72

9

BOLT, FLANGE (10X115)

90009-MCF-000

$8.19

10

WASHER, SEALING (8MM)

90442-028-000

$1.61

11

WASHER, NEUTRAL

90443-MJ6-000

$1.75

12

WASHER, PLAIN (10MM)

90453-KCY-670

$3.86

13

PIN, DOWEL (10X16)

90701-MV9-670

$4.00

14

JET, OIL (#80)

90901-MCF-000

$10.86

15

BEARING, NEEDLE (14X22X16)

91106-MCF-003

$10.30

16

OIL SEAL (14X22X5) (NOK)

91203-KA4-771

$3.55

17

OIL SEAL (8X25X7) (ARAI)

91204-MG8-003

$4.03

18

O-RING (18.1X3.6)

91302-MAL-601

$3.28

19

PIN, DOWEL (8X14)

94302-08140

$2.04

20

BOLT, FLANGE (6X14)

95701-06014-00

$0.91

21

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

22

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

22

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

23

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

24

BOLT, FLANGE (8X70)

95701-08070-00

$2.62

25

BOLT, FLANGE (8X80)

95701-08080-00

$1.57

26

BOLT, FLANGE (8X90)

95701-08090-00

$2.83

27

BOLT, FLANGE (10X50)

95701-10050-00

$2.55

28

BOLT, FLANGE (10X105)

95701-10105-00

Unavailable

29

CRANKCASE SET

11000-MCF-D30

$2,046.83
