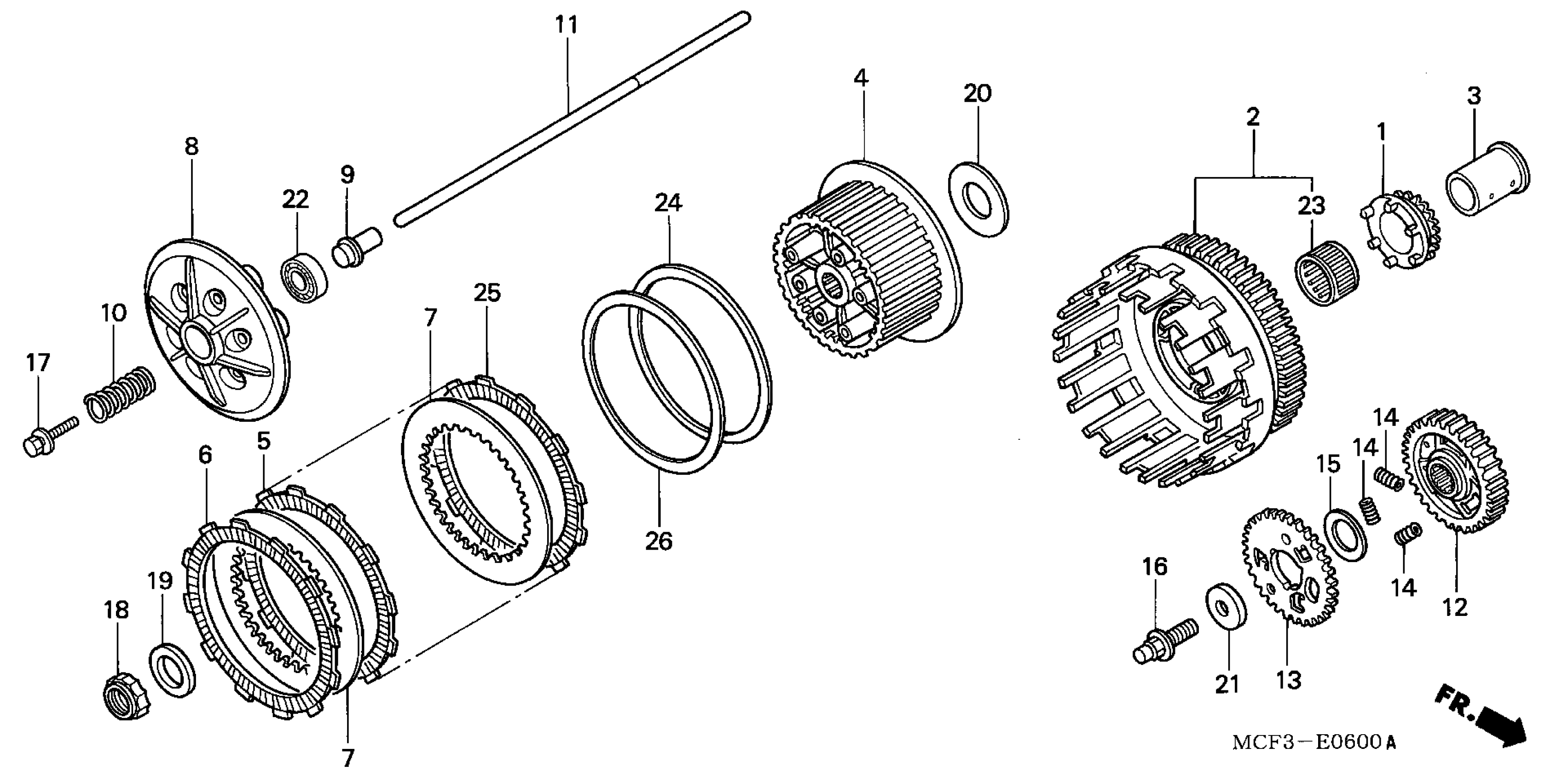

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (25T)

15131-MAS-003

$62.23

2

CLUTCH (OUTER)

22100-MCF-D30

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MCF-000

Unavailable

4

CENTER, CLUTCH

22120-MCF-000

Unavailable

5

DISK, CLUTCH FRICTION

22201-MAT-E00

$20.82

6

DISK A, CLUTCH FRICTION

22201-MAT-000

$23.62

7

PLATE, CLUTCH

22321-MAT-000

$14.99

8

PLATE, CLUTCH PRESSURE

22350-MCF-000

Unavailable

9

PIECE, CLUTCH JOINT

22366-MS2-611

$17.03

10

SPRING, CLUTCH

22401-MCF-000

$5.48

11

ROD, CLUTCH LIFTER This part replaces 22850-MBB-000.

22850-MBB-D40

Unavailable

12

GEAR, PRIMARY DRIVE

23103-MCF-000

Unavailable

13

SUB-GEAR, PRIMARY

23104-MCF-000

Unavailable

14

SPRING, PRIMARY DAMPER

23115-MW4-000

$2.31

15

SPRING, PRIMARY DRIVE FRICTION

23117-MV1-003

$7.70

16

BOLT, FLANGE (12X30)

90001-MCF-000

$15.07

17

BOLT-WASHER (6X35)

90022-MAT-E00

$4.87

18

NUT, LOCK (25MM)

90231-MS2-610

$18.78

19

WASHER (25.1X37X5)

90401-MBB-000

$3.97

20

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

21

WASHER (12.2X40X5)

90402-MV1-000

$16.74

22

BEARING, RADIAL BALL (16003)

91009-MAS-003

$22.70

23

BEARING, NEEDLE (35X42X26) (NTN CORP.)

91025-MT7-003

$47.48

24

SEAT, JUDDER SPRING

22125-MAT-000

$12.10

25

DISK A, CLUTCH FRICTION

22201-MAT-000

$23.62

25

DISK B, CLUTCH FRICTION

22202-MAT-000

$21.43

26

SPRING, JUDDER

22402-MAT-000

$24.22
