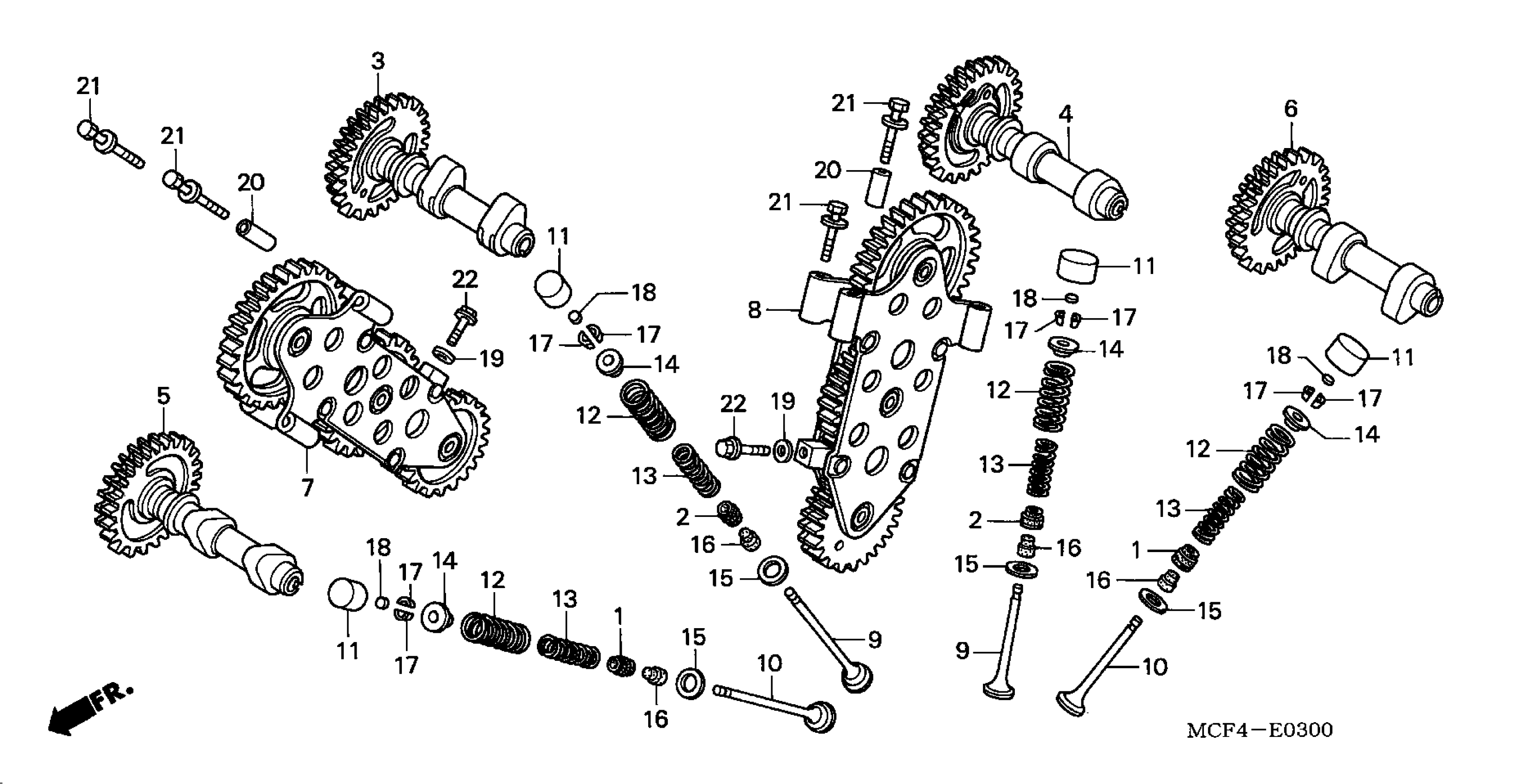

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, EX. VALVE STEM

12208-MBB-003

$11.67

2

SEAL, VALVE STEM

12209-MBB-003

$12.39

3

CAMSHAFT, FR. IN.

14110-MCF-000

Unavailable

4

CAMSHAFT, RR. IN.

14120-MCF-000

Unavailable

5

CAMSHAFT, FR. EX.

14130-MCF-000

Unavailable

6

CAMSHAFT, RR. EX.

14140-MCF-000

Unavailable

7

GEAR TRAIN, FR.

14410-MCF-000

Unavailable

8

GEAR TRAIN, RR.

14420-MCF-000

Unavailable

9

VALVE, IN.

14711-MCF-000

Unavailable

10

VALVE, EX.

14721-MCF-000

Unavailable

11

LIFTER, VALVE

14731-MCF-003

Unavailable

12

SPRING, VALVE (OUTER)

14751-MCF-000

Unavailable

13

SPRING, VALVE (INNER)

14761-MCF-000

$8.38

14

RETAINER, VALVE SPRING

14771-MBB-000

$12.67

15

SEAT, VALVE SPRING (OUTER)

14775-MBB-000

$4.78

16

SEAT, VALVE SPRING (INNER)

14776-MBB-000

$9.23

17

COTTER, VALVE

14781-MBB-003

$4.33

18

SHIM, TAPPET (1.20)

14901-MBB-000

$9.48

18

SHIM, TAPPET (1.225)

14902-MBB-000

$9.48

18

SHIM, TAPPET (1.250)

14903-MBB-000

$9.48

18

SHIM, TAPPET (1.275)

14904-MBB-000

$9.48

18

SHIM, TAPPET (1.30)

14905-MBB-000

$9.48

18

SHIM, TAPPET (1.325)

14906-MBB-000

$8.92

18

SHIM, TAPPET (1.350)

14907-MBB-000

$9.48

18

SHIM, TAPPET (1.375)

14908-MBB-000

$9.48

18

SHIM, TAPPET (1.40)

14909-MBB-000

$9.48

18

SHIM, TAPPET (1.425)

14910-MBB-000

$9.48

18

SHIM, TAPPET (1.450)

14911-MBB-000

$8.92

18

SHIM, TAPPET (1.475)

14912-MBB-000

$9.48

18

SHIM, TAPPET (1.50)

14913-MBB-000

$9.48

18

SHIM, TAPPET (1.525)

14914-MBB-000

$9.48

18

SHIM, TAPPET (1.550)

14915-MBB-000

$9.48

18

SHIM, TAPPET (1.575)

14916-MBB-000

$9.48

18

SHIM, TAPPET (1.60)

14917-MBB-000

$9.48

18

SHIM, TAPPET (1.625)

14918-MBB-000

$8.92

18

SHIM, TAPPET (1.650)

14919-MBB-000

$8.92

18

SHIM, TAPPET (1.675)

14920-MBB-000

$9.48

18

SHIM, TAPPET (1.70)

14921-MBB-000

$8.92

18

SHIM, TAPPET (1.725)

14922-MBB-000

$9.48

18

SHIM, TAPPET (1.750)

14923-MBB-000

$9.48

18

SHIM, TAPPET (1.775)

14924-MBB-000

$9.48

18

SHIM, TAPPET (1.80)

14925-MBB-000

$9.48

18

SHIM, TAPPET (1.825)

14926-MBB-000

$9.48

18

SHIM, TAPPET (1.850)

14927-MBB-000

$9.48

18

SHIM, TAPPET (1.875)

14928-MBB-000

$9.48

18

SHIM, TAPPET (1.90)

14929-MBB-000

$9.48

18

SHIM, TAPPET (1.925)

14930-MBB-000

$9.48

18

SHIM, TAPPET (1.950)

14931-MBB-000

$9.48

18

SHIM, TAPPET (1.975)

14932-MBB-000

$9.48

18

SHIM, TAPPET (2.00)

14933-MBB-000

$9.48

18

SHIM, TAPPET (2.025)

14934-MBB-000

$9.48

18

SHIM, TAPPET (2.050)

14935-MBB-000

$9.48

18

SHIM, TAPPET (2.075)

14936-MBB-000

$9.48

18

SHIM, TAPPET (2.10)

14937-MBB-000

$9.48

18

SHIM, TAPPET (2.125)

14938-MBB-000

$9.48

18

SHIM, TAPPET (2.150)

14939-MBB-000

$9.48

18

SHIM, TAPPET (2.175)

14940-MBB-000

$9.48

18

SHIM, TAPPET (2.20)

14941-MBB-000

$9.48

18

SHIM, TAPPET (2.225)

14942-MBB-000

$9.48

18

SHIM, TAPPET (2.250)

14943-MBB-000

$9.48

18

SHIM, TAPPET (2.275)

14944-MBB-000

$9.48

18

SHIM, TAPPET (2.30)

14945-MBB-000

$9.48

18

SHIM, TAPPET (2.325)

14946-MBB-000

$9.48

18

SHIM, TAPPET (2.350)

14947-MBB-000

$9.48

18

SHIM, TAPPET (2.375)

14948-MBB-000

$9.48

18

SHIM, TAPPET (2.40)

14949-MBB-000

$9.48

18

SHIM, TAPPET (2.425)

14950-MBB-000

$9.48

18

SHIM, TAPPET (2.450)

14951-MBB-000

$9.48

19

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

20

PIN, DOWEL (8X31.5)

91104-KT7-000

$5.11

21

BOLT-WASHER (6X50)

93411-06050-08

Unavailable

22

BOLT, FLANGE (8X40)

95701-08040-00

$1.49
