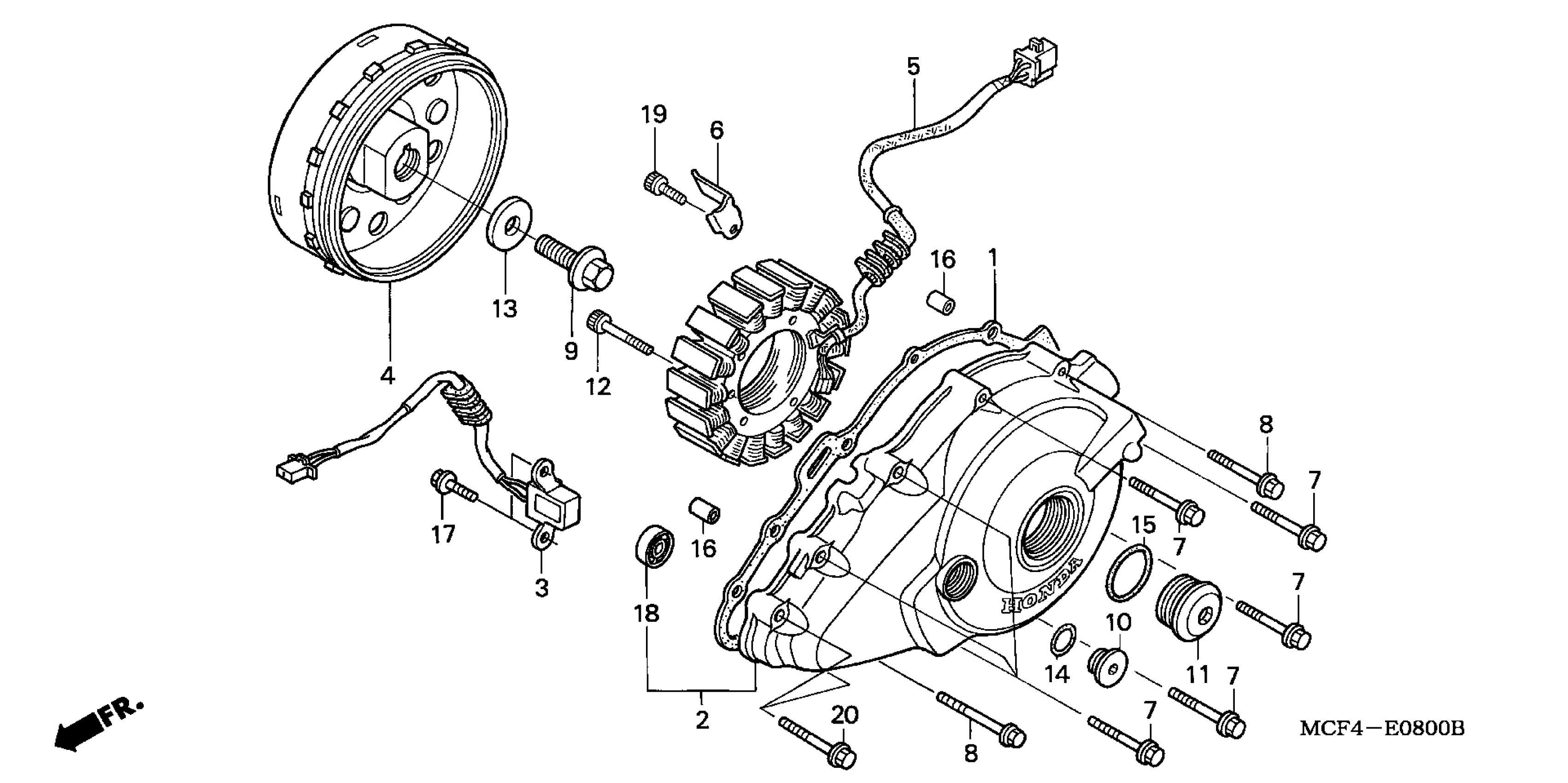

Honda RVT1000RA (05) RC51, JPN, VIN# JH2SC450-5M500001 ALTERNATOR Diagram

#

Description
Price

1

GASKET, ALTERNATOR COVER

11636-MCF-000

$21.65

2

COVER, ALTERNATOR

11640-MCF-D60

Unavailable

3

GENERATOR ASSY., PULSE

30300-MCF-000

$104.67

4

FLYWHEEL

31110-MCF-003

Unavailable

5

STATOR

31120-MCF-D31

$457.23

6

CLAMP, ALTERNATOR WIRE This part replaces 31131-MR7-000.

31131-MR7-010

$5.08

7

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

8

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

9

BOLT, FLANGE (12X45)

90023-MBT-010

$7.03

10

CAP (14MM)

90084-MN8-010

$12.82

11

CAP (30MM)

90087-KT7-000

$19.74

12

BOLT, SOCKET (6X40)

90116-375-000

$4.74

13

WASHER (12.5X36X6)

90402-MBB-000

$4.03

14

O-RING (13.8X2.5)

91303-377-000

$3.42

15

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

15

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

16

PIN, DOWEL (8X14)

94301-08140

$2.25

17

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

18

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13

19

BOLT, SOCKET (6X8) This part replaces 96600-06010-00.

90016-58G-A00

$2.90

20

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92
