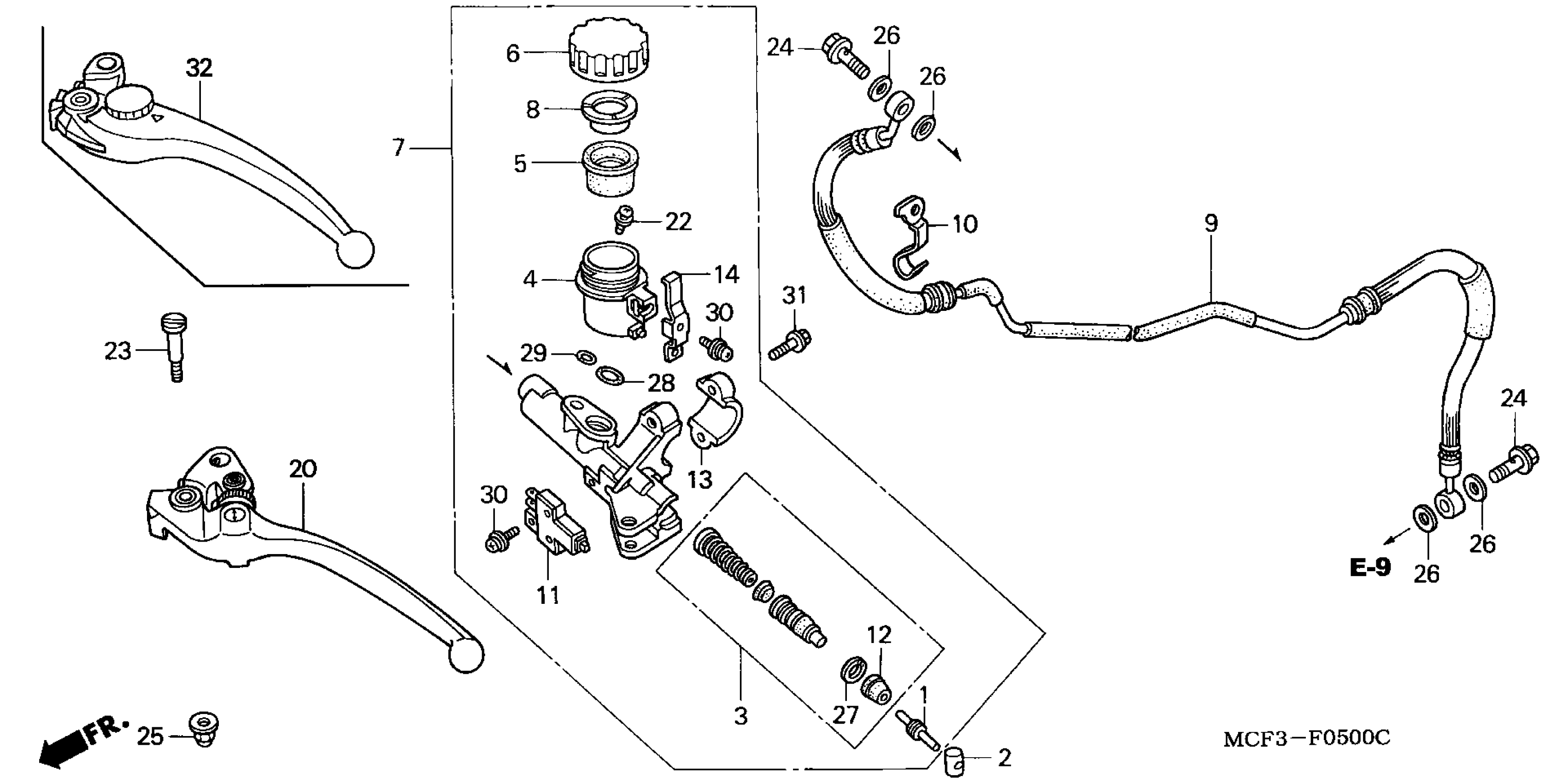

Honda RVT1000RA (04) RC51, JPN, VIN# JH2SC453-4M400001 TO JH2SC453-4M499999 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MAT-E01

$17.39

2

BUSH

22885-MB0-006

$11.63

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$51.22

4

CUP, OIL

22887-MBB-006

$35.76

5

DIAPHRAGM (NISSIN)

22888-MR7-006

$13.62

6

CAP, CLUTCH OIL CUP (NISSIN)

22889-MR7-006

$34.83

7

MASTER CYLINDER SUB-ASSY., CLUTCH This part replaces 22890-MCF-006.

22890-MCF-016

Unavailable

7

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MCF-016

Unavailable

8

PLATE, DIAPHRAGM (NISSIN)

22890-MR7-006

$10.46

9

PIPE, CLUTCH

22900-MCF-D31

Unavailable

10

CLAMP, CLUTCH PIPE

22910-MCF-000

Unavailable

11

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

12

BOOT

45504-MAT-E01

$9.57

13

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

14

PLATE, STOP

45535-MR8-901

$5.07

22

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.83

23

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

24

BOLT, OIL (10X22)

90145-MS9-612

$6.82

25

NUT, CAP (6MM)

90201-415-000

$1.96

26

WASHER, OIL BOLT

90545-300-000

$3.72

27

CIRCLIP

90651-MA5-671

$2.38

28

O-RING (14.8X2.4)

91212-422-006

Unavailable

29

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

Unavailable

30

SCREW-WASHER (4X12)

93893-04012-07

$1.22

30

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

31

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

32

LEVER, L. HANDLE This part replaces 53180-MCF-D61.

53180-MCF-D62

$77.78
