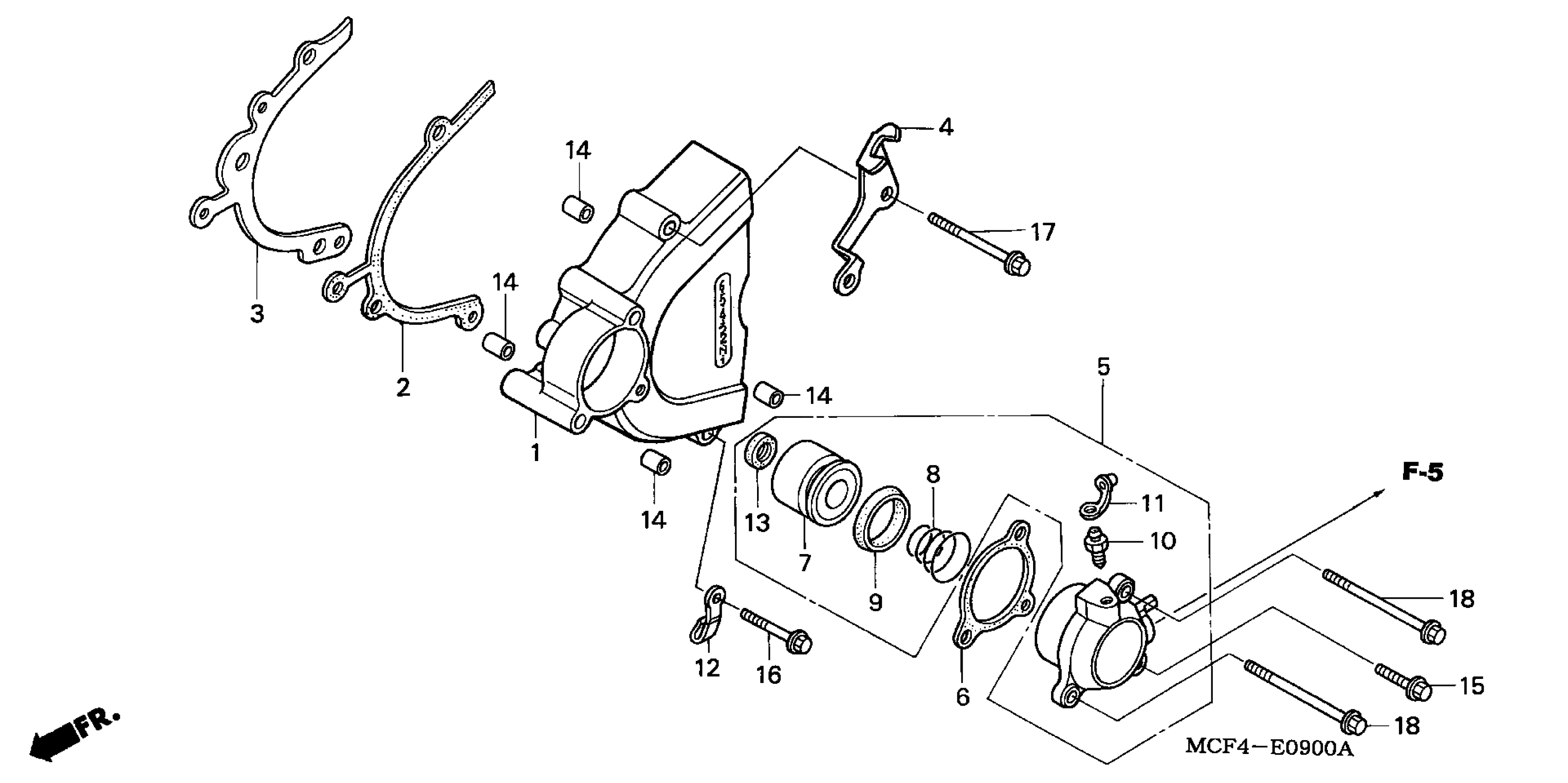

Honda RVT1000RA (03) RC51, JPN, VIN# JH2SC453-3M300001 TO JH2SC453-3M399999 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE

11340-MCF-000

Unavailable

GASKET, L. CRANKCASE COVER

11344-MCF-000

$9.55

PLATE, DRIVE CHAIN GUIDE

11365-MBT-000

$14.56

STAY, CHOKE CABLE

17951-MCF-000

$5.54

CYLINDER ASSY., SLAVE

22860-MT7-000

$196.28

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.98

PISTON, SLAVE CYLINDER

22863-MJ8-003

$26.65

SPRING, SLAVE CYLINDER This part replaces 22864-MT7-006.

22864-MT7-016

$6.21

SPRING, SLAVE CYLINDER

22864-MT7-016

$6.21

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.50

SCREW, BLEEDER

22866-MF2-711

$5.12

CAP, BLEEDER

43353-461-771

$5.05

CLIP (4X50)

90601-KJ9-000

$3.08

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

BOLT, FLANGE (6X50)

96001-06050-07

$1.52

BOLT, FLANGE (6X60)

96001-06060-07

$2.07
