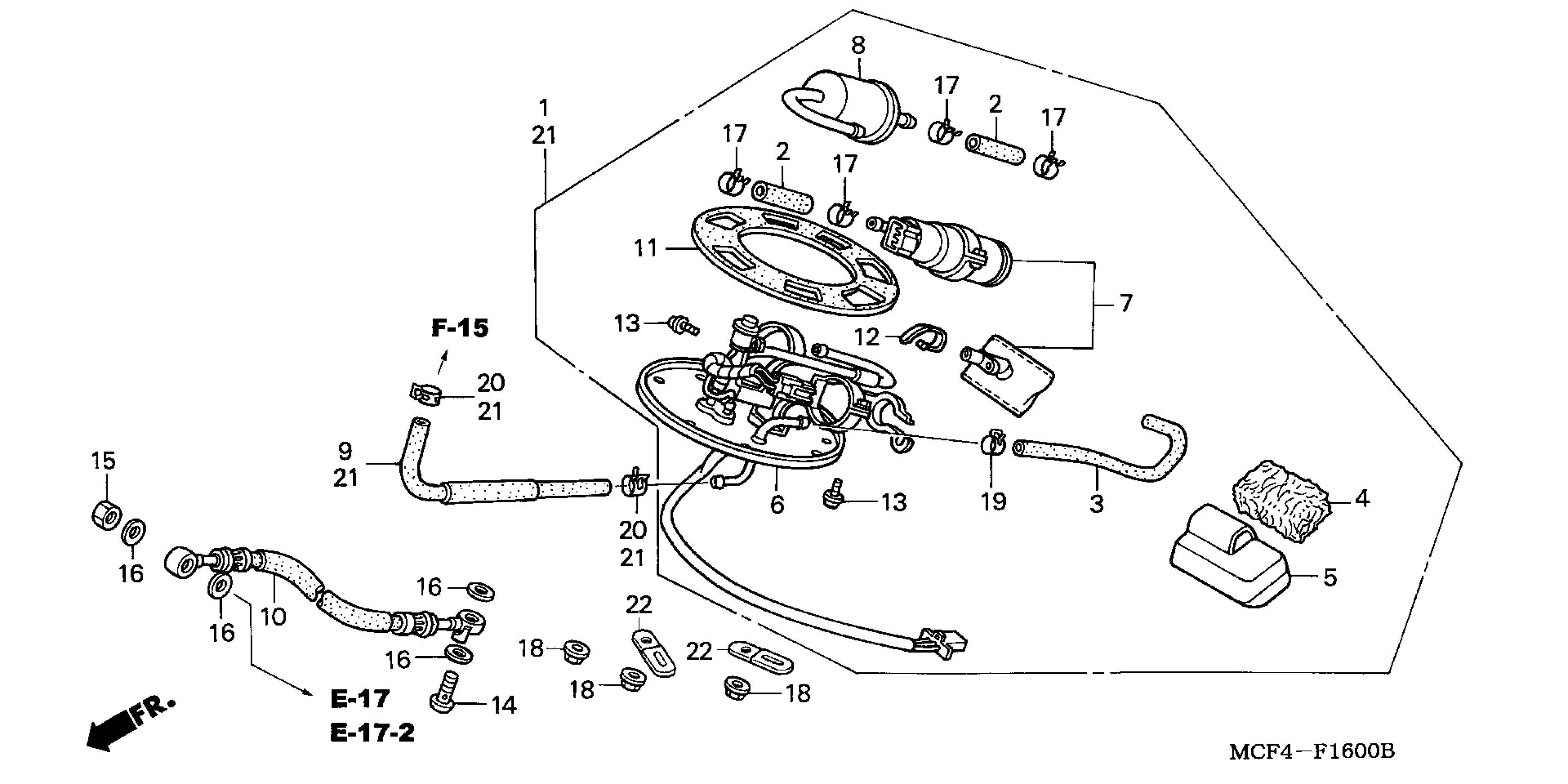

Honda RVT1000RA (03) RC51, JPN, VIN# JH2SC453-3M300001 TO JH2SC453-3M399999 FUEL PUMP Diagram

HOSE A, PUMP

16711-MCF-000

$5.00

TUBE, FUEL PUMP RETURN

16713-MCF-000

$10.56

FILTER, FUEL RETURN

16714-MBG-000

$9.13

RUBBER, FUEL PUMP UNIT This part replaces 16716-MEF-000.

16716-MCT-D60

$9.32

FILTER, FUEL

16900-MBG-013

$69.58

HOSE A, FUEL RETURN

17525-MCF-003

$16.12

HOSE, FUEL FEED

17527-MCF-003

Unavailable

GASKET, BASE

17574-MCF-000

$15.92

BAND, WIRE

32161-KM3-003

$2.63

SCREW-WASHER, LOCK (4X8)

90105-MBG-000

$1.51

BOLT, BANJO (12MM)

90108-MBG-000

$10.46

NUT A, SEALING (12MM)

90201-PD1-000

$4.87

WASHER, SEALING (12MM)

90428-PD6-003

$5.20

CLAMP, TUBE (D12)

91405-PD1-004

$9.24

NUT, FLANGE (6MM)

94050-06080

$1.49

CLAMP, TUBE (D8.5)

95002-40850-04

$2.41

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

PUMP ASSY., FUEL

16700-MCF-D32

$718.97

CLIP, PULSER WIRE

32925-958-000

$2.92
