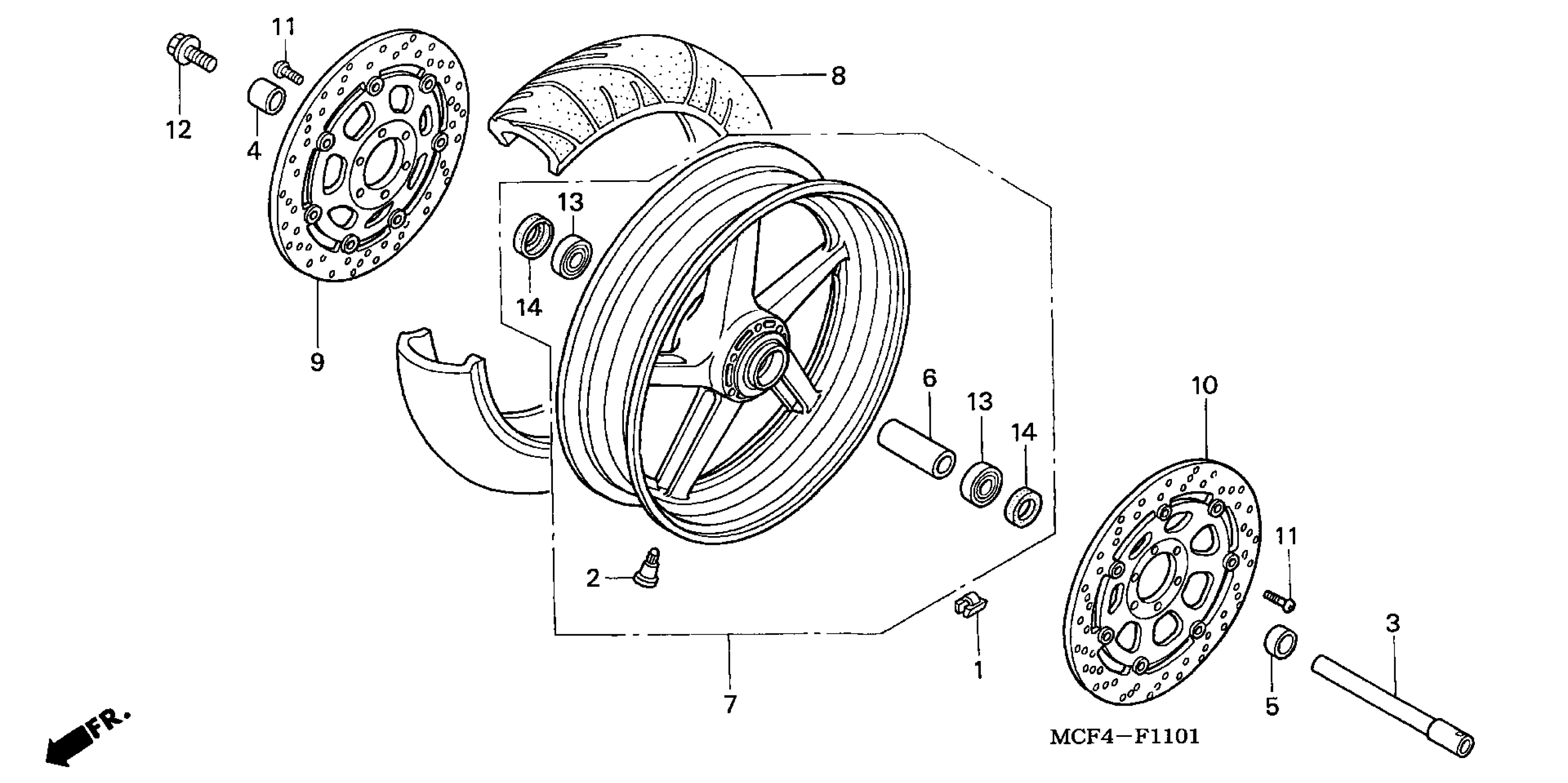

Honda RVT1000RA (03) RC51, JPN, VIN# JH2SC453-3M300001 TO JH2SC453-3M399999 FRONT WHEEL ('02-'05) Diagram

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$7.28

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MCF-000

Unavailable

COLLAR, R. FR. WHEEL SIDE

44311-MCF-D00

Unavailable

COLLAR, L. FR. WHEEL SIDE

44312-MCF-D00

$11.06

COLLAR, FR. AXLE DISTANCE

44620-MCF-000

Unavailable

WHEEL SUB-ASSY., FR. (TYPE2)

44650-MCF-D30ZA

Unavailable

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) (NA USE ALT:44711-MCF-D31)

44711-MCF-016

Unavailable

TIRE (190/50ZR17) This part replaces 44711-MCF-D31.

44711-MCF-D33

Unavailable

TIRE (190/50ZR17) This part replaces 44711-MCF-D32.

44711-MCF-D33

Unavailable

DISK, R. FR. BRAKE

45120-MCF-D31

Unavailable

DISK, L. FR. BRAKE

45220-MCF-D31

Unavailable

BOLT, DISK (6X17)

90106-MBB-000

$3.65

BOLT, FR. AXLE

90305-ML7-000

$10.50

BEARING, RADIAL BALL (22X47X14)

91073-MCF-003

$23.21

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

DUST SEAL (30X47X8)

91253-443-762

$12.13
