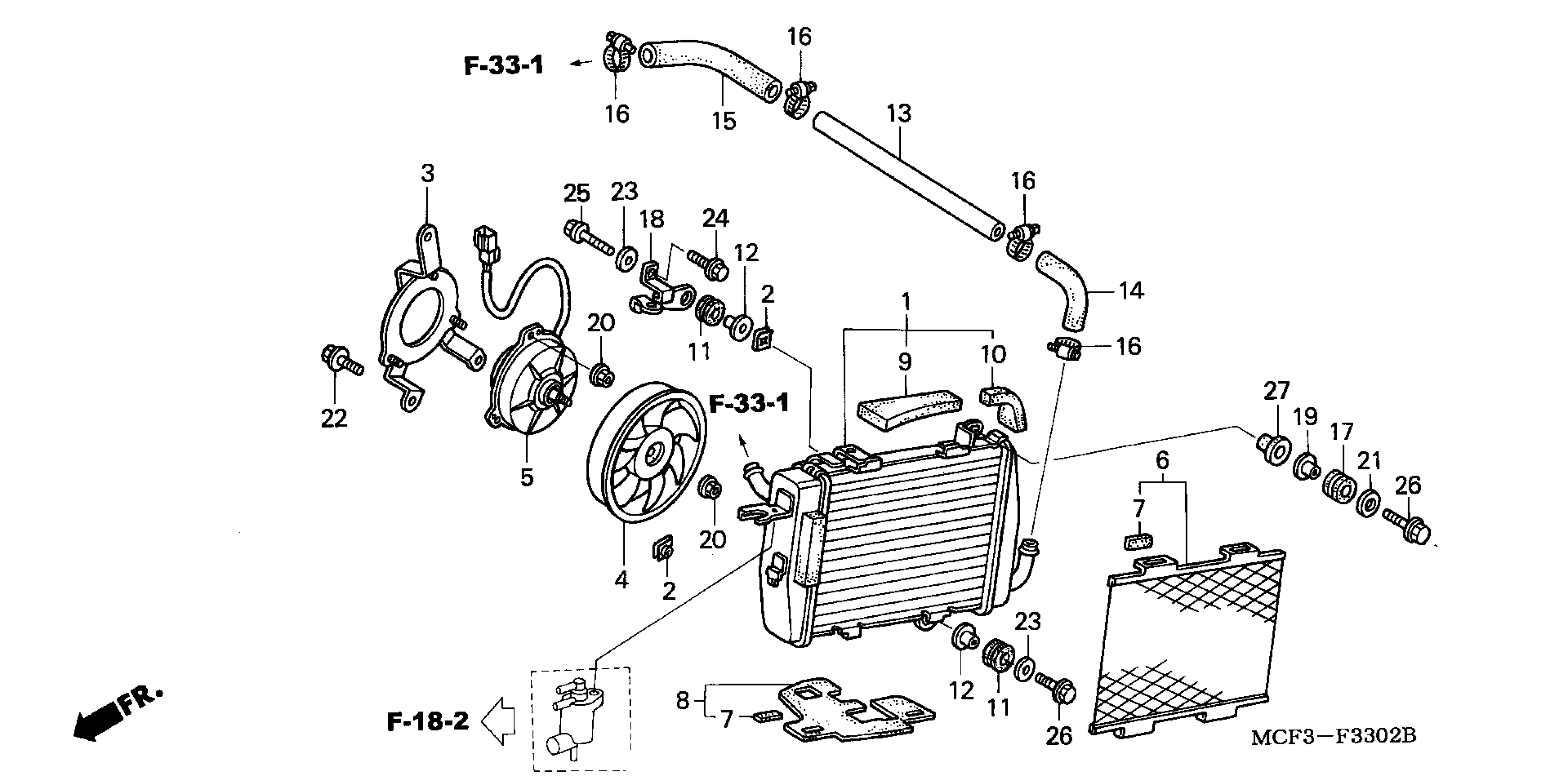

Honda RVT1000RA (02) RC51, JPN, VIN# JH2SC453-2M200001 TO JH2SC453-2M299999 RADIATOR (L.) ('02-'05) Diagram

RADIATOR, L.

19010-MCF-D31

Unavailable

NUT, SETTING

19014-KEA-003

$2.95

SHROUD, L.

19015-MCF-D31

Unavailable

FAN, COOLING

19020-MCF-D31

Unavailable

MOTOR ASSY., FAN

19030-MCF-D31

Unavailable

GRILLE, RADIATOR

19032-MCF-D00

Unavailable

CUSHION, RADIATOR GRILLE

19033-MBB-300

$2.68

GUIDE B, L. RADIATOR (INNER)

19037-MCF-D30

Unavailable

MAT A, L. RADIATOR

19039-MCF-D30

Unavailable

MAT B, L. RADIATOR

19049-MCF-D30

Unavailable

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

PIPE, WATER

19506-MCF-000

Unavailable

HOSE F, RADIATOR

19507-MCF-000

Unavailable

HOSE H, RADIATOR

19510-MCF-000

$14.49

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

RUBBER, TAILLIGHT

33712-KT1-670

$4.28

STAY C, L. COWL (UPPER) This part replaces 64512-MCF-000.

64512-MCF-D50

$7.88

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

WASHER (6MM)

90485-MB2-000

$1.85

BOLT-WASHER (6X14)

93401-06014-07

$1.63

WASHER, PLAIN (6MM)

94103-06700

$0.66

BOLT, FLANGE (6X14)

96001-06014-07

$1.10

BOLT, FLANGE (6X28)

96001-06028-07

$1.40

BOLT, FLANGE (6X32)

96001-06032-07

$1.43

NUT, SPECIAL (6MM)

90301-MBY-003

$5.41
