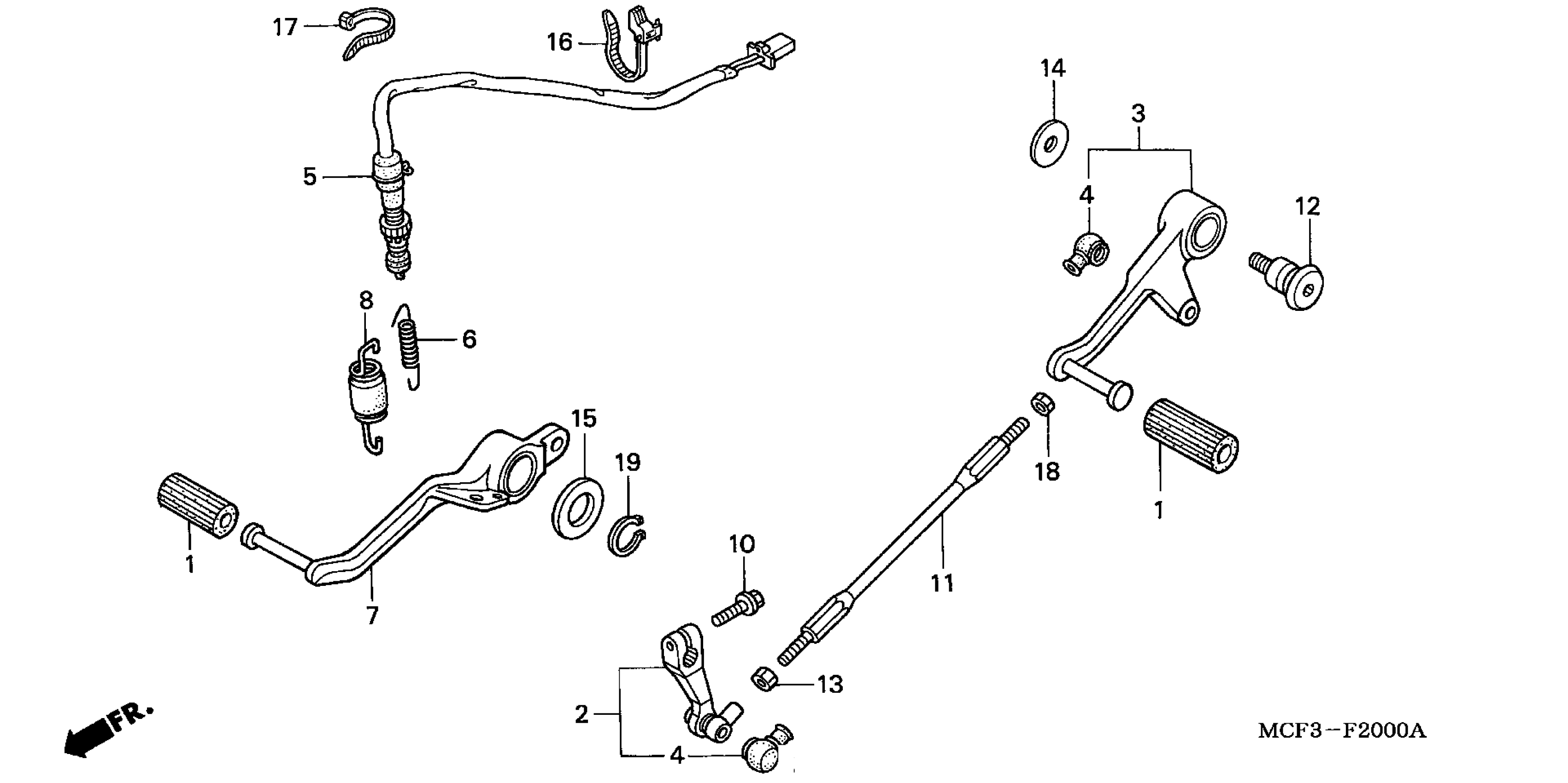

Honda RVT1000RA (02) RC51, JPN, VIN# JH2SC453-2M200001 TO JH2SC453-2M299999 PEDAL Diagram

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.76

ARM, GEARSHIFT

24710-MCF-000

Unavailable

PEDAL, GEARSHIFT This part replaces 24720-MCF-000.

24720-MCF-D50

$141.72

COVER, DUST

24724-422-000

$6.68

SWITCH ASSY., RR. STOP This part replaces 35350-MV9-000.

35350-KA2-405

$16.22

SPRING, STOP SWITCH

35357-KCT-690

$4.52

PEDAL, RR. BRAKE

46500-MCF-000

Unavailable

SPRING SET, BRAKE PEDAL

46513-MBB-000

$9.54

BOLT, FLANGE (6X20)

90051-KS7-830

$2.33

BAR, CHANGE

90065-MCF-010

Unavailable

BOLT, CHANGE PIVOT

90113-MCF-000

$7.96

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

WASHER, CHANGE PEDAL PIVOT

90524-MCF-000

$3.49

WASHER (15.2X25)

90557-230-000

$2.39

BAND, WIRE

90651-KV6-003

$2.92

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

NUT, HEX. (6MM)

94002-06020-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49
