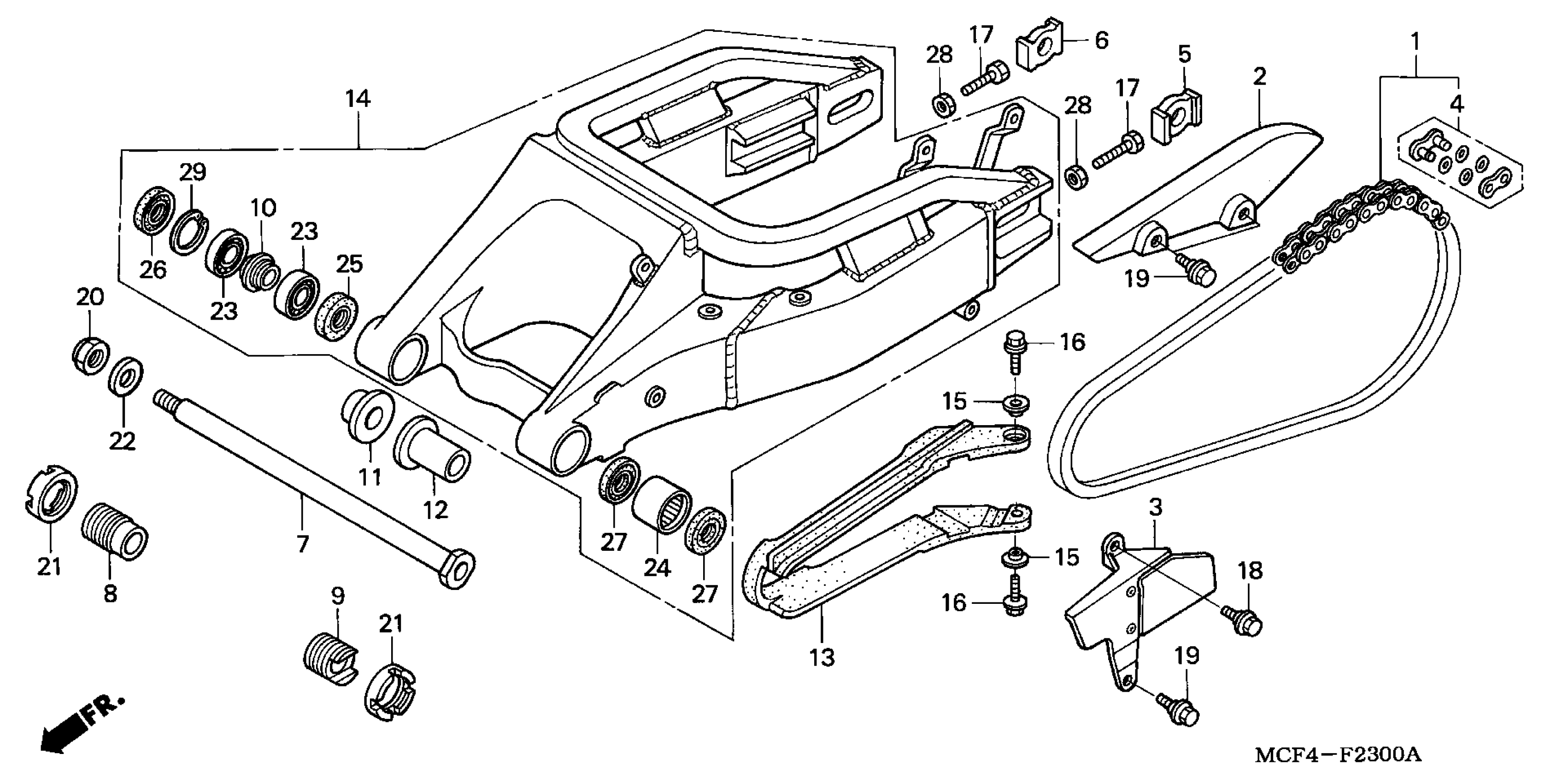

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 SWINGARM ('00-'01) Diagram

CHAIN SET, DRIVE (DID50 102-120L) (DAIDO) (STANDARD LINK 104L)

06405-MCF-P00

Unavailable

CHAIN,GN50HFOZ5-120L This part replaces 06405-MCF-P10.

40540-MCJ-005

Unavailable

CASE, DRIVE CHAIN (A)

40510-KY2-700

Unavailable

CASE B, DRIVE CHAIN

40520-MW0-000

Unavailable

MASTER LINK (DID)

40545-MCF-003

Unavailable

MASTER LINK (RK EXCEL) This part replaces 40545-MCF-005.

40545-MCJ-005

$7.84

COLLAR, L. RR. WHEEL AXLE

42305-MCF-000

Unavailable

COLLAR, R. RR. WHEEL AXLE

42306-MCF-000

Unavailable

BOLT, SWINGARM PIVOT

52101-MCF-000

Unavailable

BOLT, R. SWINGARM PIVOT ADJUSTING

52108-MCF-D00

Unavailable

BOLT, L. SWINGARM PIVOT ADJUSTING

52109-MCF-D00

Unavailable

COLLAR, SWINGARM PIVOT CENTER DISTANCE

52141-MCF-000

Unavailable

COLLAR, R. SWINGARM PIVOT DISTANCE

52142-MCF-000

Unavailable

COLLAR, L. PIVOT DISTANCE

52143-MCF-000

Unavailable

SLIDER, CHAIN

52170-MCF-000

Unavailable

SWINGARM SUB-ASSY. This part replaces 52200-MCF-A00.

52200-MCF-670

Unavailable

COLLAR

81312-GJ5-000

$3.31

BOLT, FLANGE (6X18)

90105-MY9-000

$2.92

BOLT, HEX. (8X50)

90106-MCF-D00

$2.43

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.48

BOLT, FLANGE (6MM)

90113-MW0-000

$5.43

NUT, U (22MM) This part replaces 90305-MCF-D00.

90305-MCF-D01

$7.70

NUT, LOCK (36MM)

90354-MCF-D00

$13.59

WASHER (22X38X2.5)

90401-MAZ-000

$5.56

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

BEARING, NEEDLE (32X42X30)

91071-MCF-003

Unavailable

DUST SEAL (31X40X5)

91251-MCF-003

Unavailable

DUST SEAL (32X45X6)

91252-MCF-003

$6.91

DUST SEAL (32X42X6)

91253-MCF-003

$6.41

NUT, HEX. (8MM)

94001-08000-0S

$1.49

CIRCLIP (INNER) (45MM)

94520-45000

$2.19
