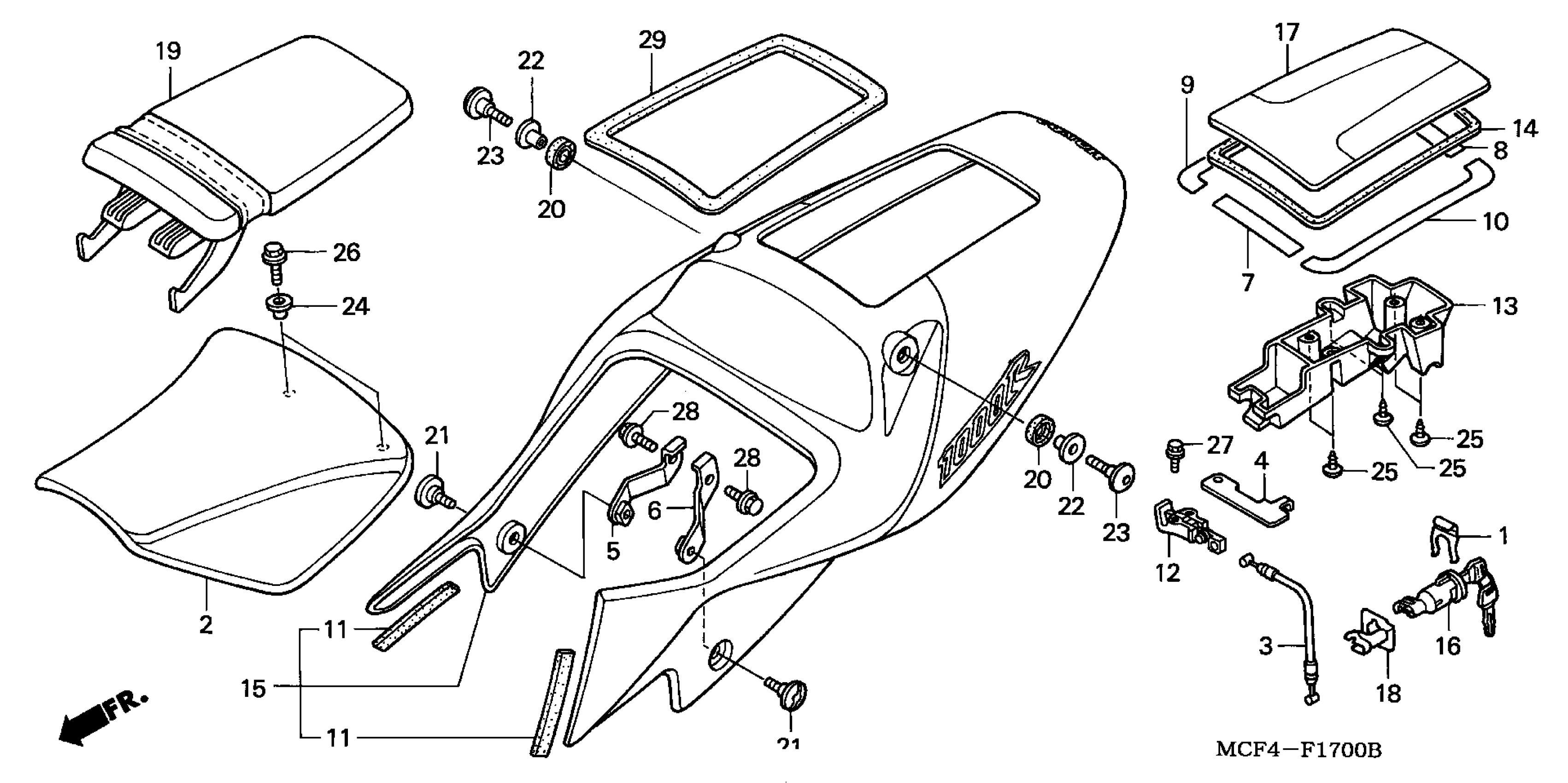

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 SEAT + SEAT COWL Diagram

#

Description
Price

1

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

2

SEAT ASSY., SINGLE

77100-MCF-000

Unavailable

3

CABLE, SEAT LOCK

77156-MCF-000

$9.04

4

GUARD, SEAT LOCK CABLE

77157-MCF-000

Unavailable

5

STAY, R. SEAT COWL

77213-MCF-000

Unavailable

6

STAY, L. SEAT COWL

77214-MCF-000

Unavailable

7

TAPE A, PROTECTION

77215-MCF-000

$4.89

8

TAPE B, PROTECTION

77216-MCF-000

$3.81

9

TAPE C, R. PROTECTION

77217-MCF-000

Unavailable

10

TAPE C, L. PROTECTION

77218-MCF-000

Unavailable

11

TAPE D, PROTECTION

77219-MCF-300

$4.26

12

HOOK, SEAT CATCH This part replaces 77220-KY6-000.

77220-KY6-010

$29.16

13

BOX, SEAT COWL

77222-MCF-000

$86.43

14

SEAL, SEAT COWL PANEL

77223-MCF-300

$5.87

15

COWL SET, SEAT (TYPE2) (WL) This part replaces 77230-MCF-671ZA.

77230-MCF-A20ZA

Unavailable

15

COWL SET, SEAT (TYPE2) (WL)

77230-MCF-A20ZA

Unavailable

16

KEY, SEAT LOCK

77239-KAB-000

$42.67

17

PANEL SET, SEAT COWL (TYPE2) (WL)

77240-MCF-670ZB

Unavailable

18

STAY, SEAT LOCK CABLE

77242-MAT-000

$8.64

19

SEAT ASSY., PILLION

77300-MCF-000

Unavailable

20

SPACER, SIDE COWL SETTING

83641-KY2-700

$4.06

21

BOLT A, COWL SETTING

83641-MR7-000

$5.26

22

COLLAR, SIDE COWL SETTING

83642-KY2-700

$4.57

23

BOLT, SIDE COWL SETTING

90116-KY2-700

$10.32

24

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

25

SCREW, TAPPING (5X10)

93903-25110

$1.49

26

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

27

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

28

BOLT, FLANGE (6X16)

96300-06016-00

$1.49
