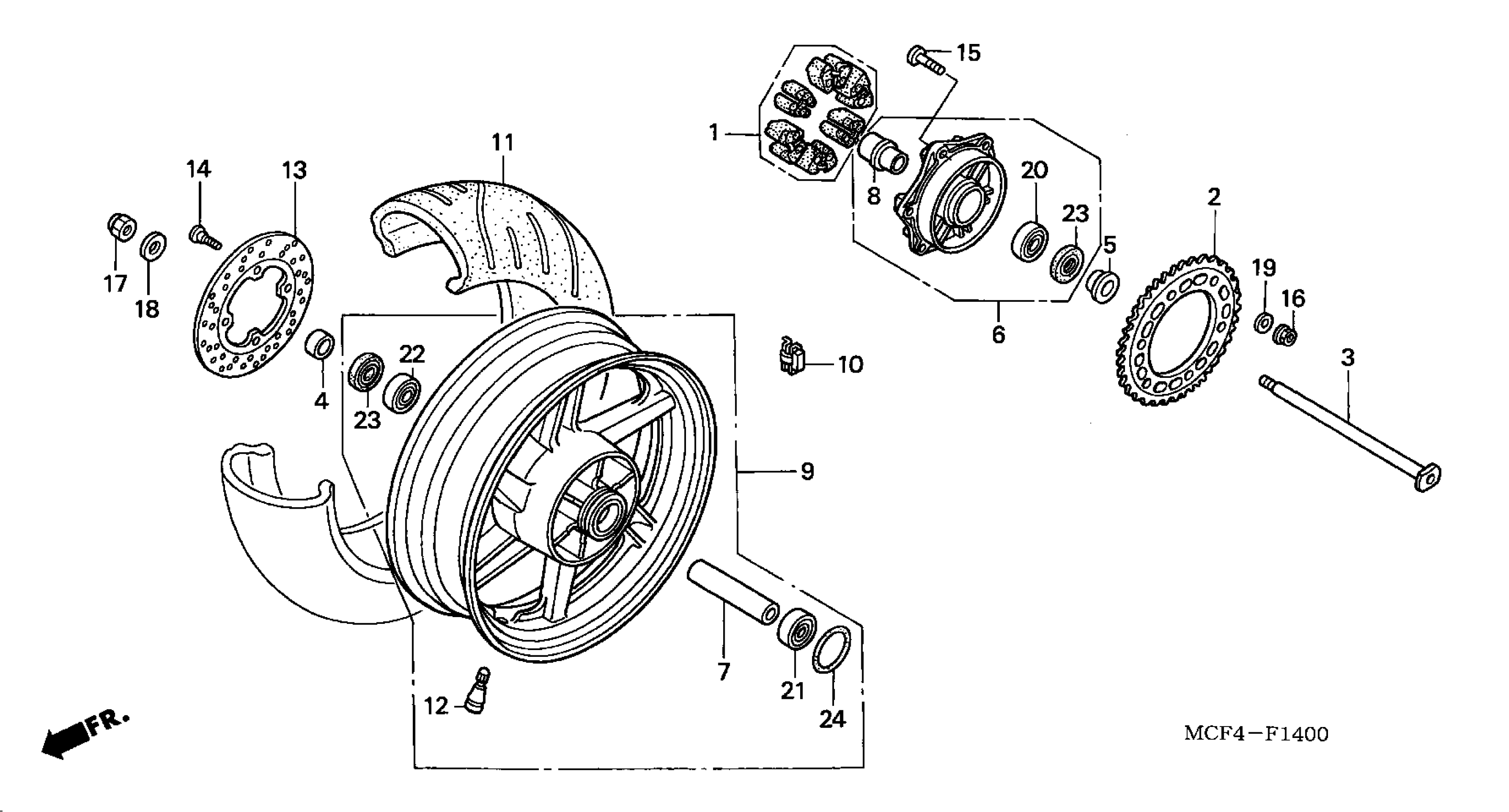

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 REAR WHEEL ('00-'01) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MCF-000

$67.46

2

SPROCKET, FINAL DRIVEN (40T)

41201-MCF-000

$107.35

3

AXLE, RR. WHEEL

42301-MCF-000

Unavailable

4

COLLAR, RR. BRAKE SIDE

42312-MCF-D00

Unavailable

5

COLLAR, RR. WHEEL SIDE

42313-MCF-D00

Unavailable

6

FLANGE SUB-ASSY., RR. DRIVEN

42615-MCF-000

Unavailable

7

COLLAR, RR. AXLE DISTANCE

42620-MCF-000

Unavailable

8

COLLAR B, RR. WHEEL DISTANCE

42625-MCF-000

$24.22

9

WHEEL SUB-ASSY., RR.

42650-MCF-671

Unavailable

10

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$11.35

10

WEIGHT, BALANCE (10G)

42704-MCF-D60

$11.35

10

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$14.00

10

WEIGHT, BALANCE (20G)

42705-MCF-D60

$14.00

10

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$12.91

10

WEIGHT, BALANCE (30G)

42706-MCF-D60

$12.91

11

TIRE, RR. (190/50ZR17) (73W) (DUNLOP) This part replaces 42711-MCF-004.

42711-MCF-D31

Unavailable

11

TIRE, RR. (190/50ZR17) (73W) (DUNLOP) This part replaces 42711-MCF-006.

42711-MCF-D31

Unavailable

11

TIRE, RR. (190/50ZR17) (73W) (DUNLOP)

42711-MCF-D31

Unavailable

11

TIRE, RR. (190/50ZR17) (73W) (DUNLOP) This part replaces 42711-MCF-014.

42711-MCF-D31

Unavailable

12

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$6.62

12

VALVE, RIM (DUNLOP)

42753-ML7-004

$11.44

13

DISK, RR. BRAKE This part replaces 43251-MCJ-000.

43251-MEE-000

$206.43

14

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

14

BOLT, DISK (8X24)

90105-MV9-003

$5.78

15

BOLT (10X30)

90121-MCF-D00

Unavailable

16

NUT, U (10MM)

90304-KAE-871

$4.03

17

NUT, U (22MM)

90306-MCF-D00

$9.16

18

WASHER (22X38X2.5)

90401-MAZ-000

$5.06

19

WASHER (10MM)

90502-MCF-000

$2.55

20

BEARING, RADIAL BALL (27X52X23.8)

91051-MCF-003

$39.41

21

BEARING, RADIAL BALL (6005)

91052-MCF-003

$13.38

22

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$15.40

23

DUST SEAL (35X52X7.5) This part replaces 91254-MCF-003.

91254-MEE-003

$6.44

24

O-RING (51X2)

91352-MCF-003

$3.52
