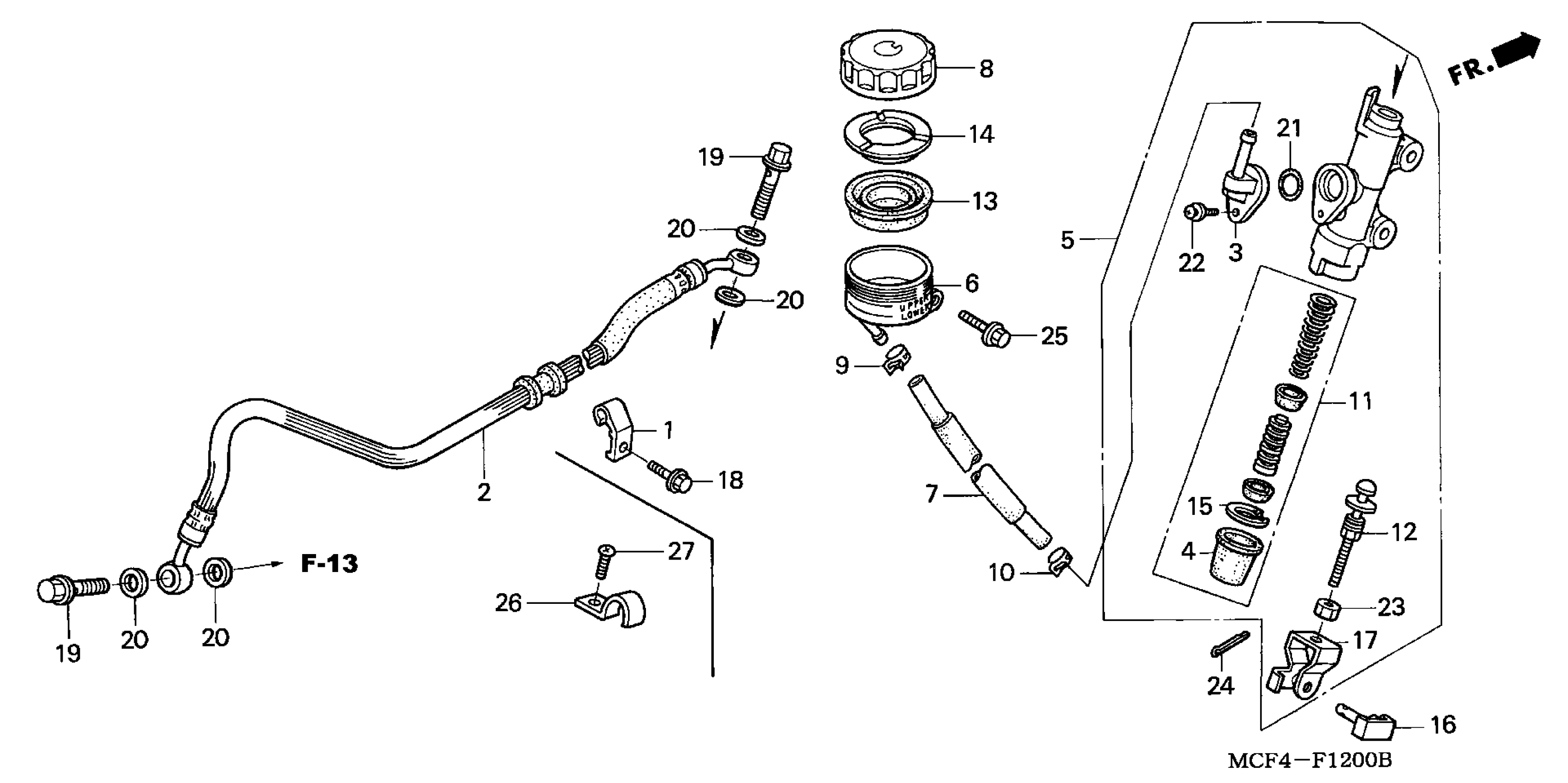

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 REAR BRAKE MASTER CYLINDER Diagram

CLAMP, RR. BRAKE HOSE

43154-MCF-D00

Unavailable

HOSE, RR. BRAKE

43310-MCF-003

Unavailable

CONNECTOR, MASTER CYLINDER

43503-MB2-006

$12.02

BOOT

43504-MB2-006

$10.04

M/CYL SUB-ASSY, RR. This part replaces 43510-MCF-D01.

43510-MCF-D02

Unavailable

CUP, OIL

43511-MR7-016

$32.46

HOSE, MASTER CYLINDER

43512-MCF-006

Unavailable

CAP, OIL CUP

43513-MY1-006

$29.39

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

PISTON SET, MASTER CYLINDER (NISSIN) This part replaces 43520-MB2-305.

43520-MB2-315

$46.51

ROD, PUSH

43530-MB2-006

$34.74

DIAPHRAGM

45520-371-013

$14.15

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-500-013

$4.90

PIN, BRAKE ROD

46503-MAL-000

$6.00

JOINT, BRAKE ROD

46504-MAL-601

$13.39

BOLT, FLANGE (6X20)

90101-MAS-000

$3.21

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

BOLT, FLANGE (6X18)

96001-06018-00

$1.80
