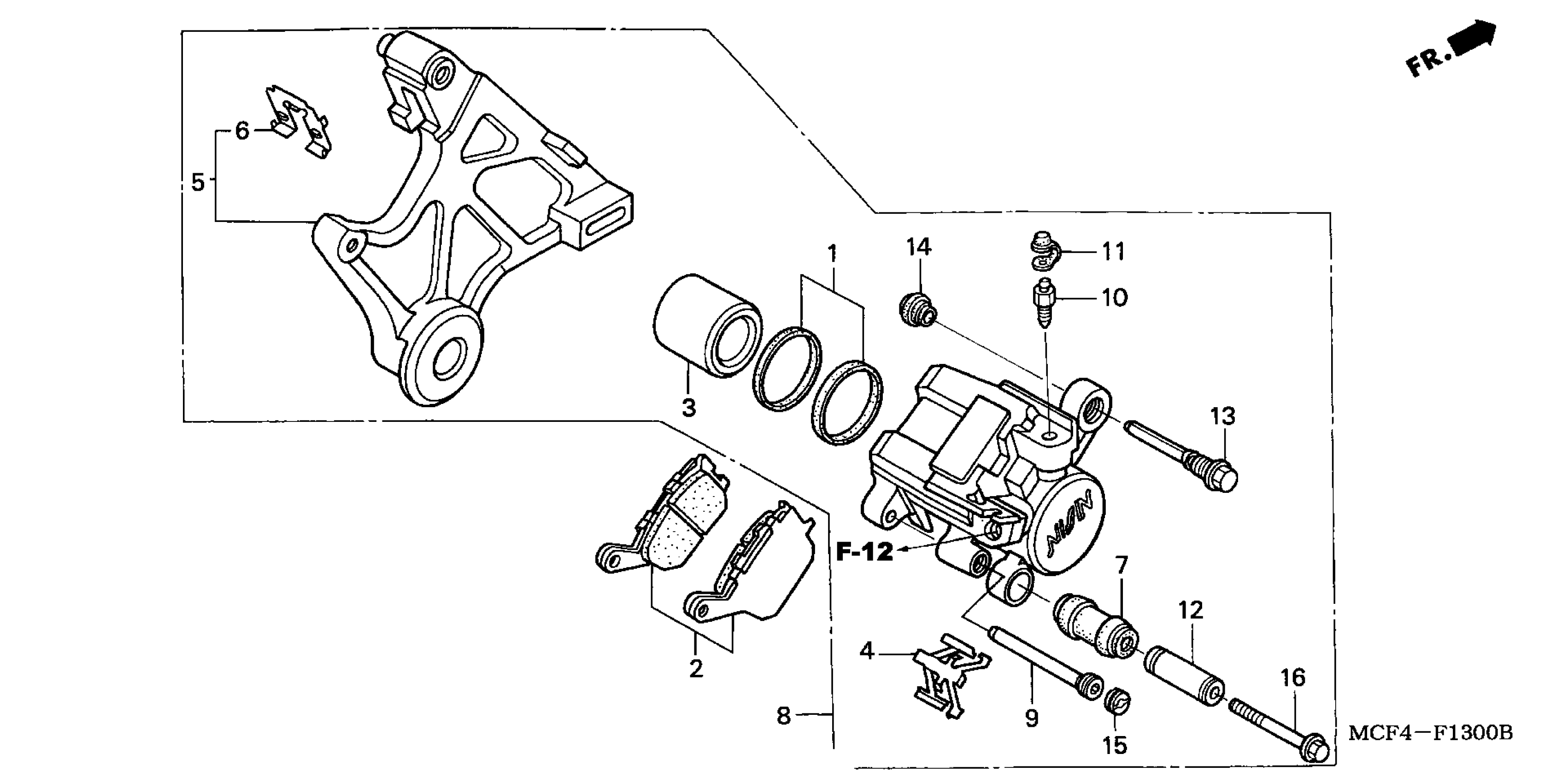

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-443-405

$13.23

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$53.45

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PISTON

43107-KT7-761

$37.87

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR.

43110-MCF-006

Unavailable

RETAINER, RR. BRACKET

43112-MCF-006

$10.85

BOOT, SLEEVE

43132-KT7-761

$8.52

CALIPER SUB-ASSY., RR.

43150-MCF-006

Unavailable

PIN, HANGER

43215-ML3-911

$11.69

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SLEEVE

45111-MA3-006

$13.38

PIN, BOLT

45131-MN9-006

$15.97

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MG3-016

$5.12

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
