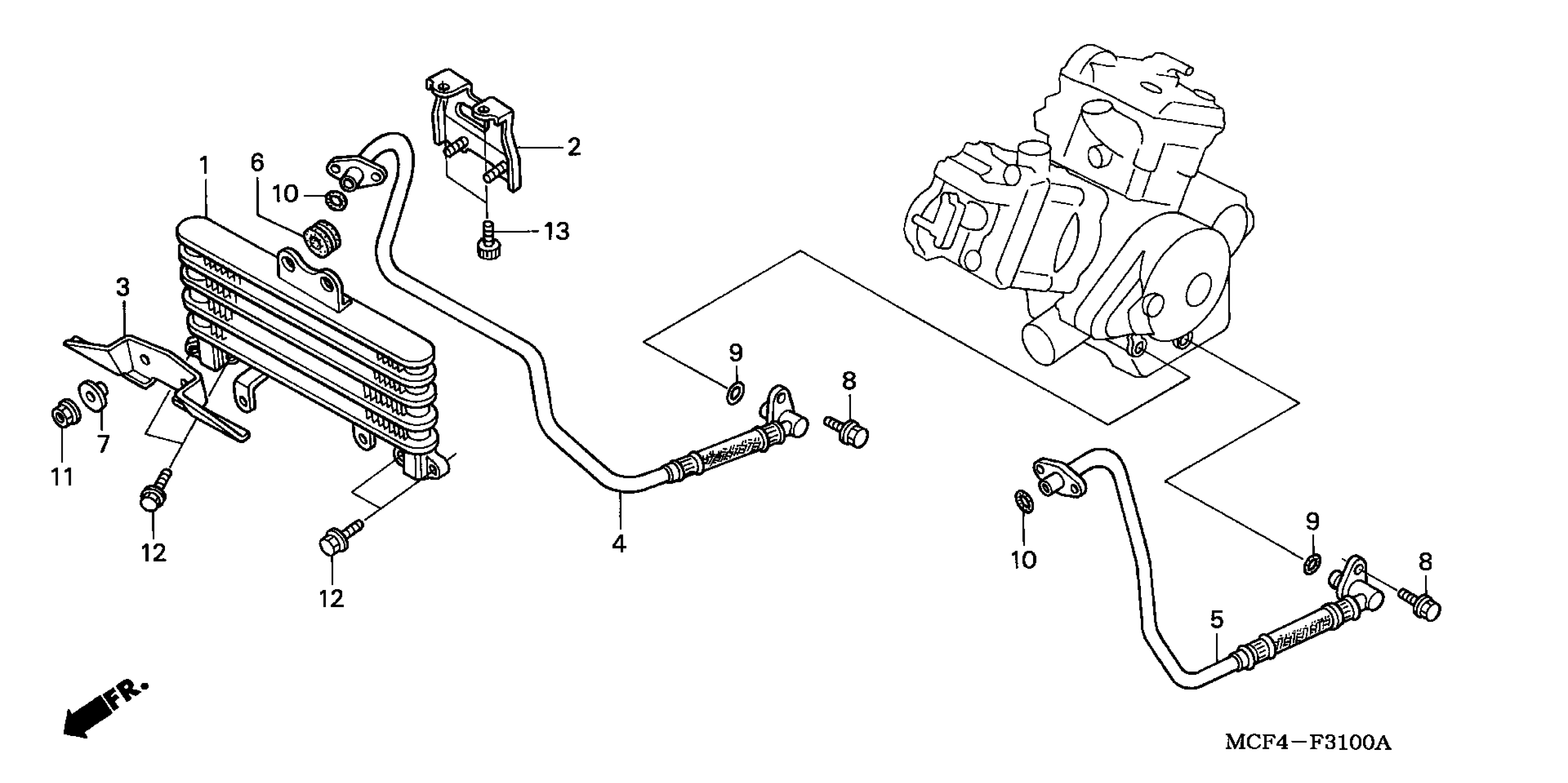

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 OIL COOLER ('00-'01) Diagram

#

Description
Price

1

COOLER, OIL

15600-MCF-000

Unavailable

2

STAY, AIR GUIDE PLATE This part replaces 15601-MCF-000.

15606-MCF-D30

Unavailable

3

PLATE, AIR GUIDE

15602-MCF-000

Unavailable

4

HOSE, R. OIL

15650-MCF-000

Unavailable

5

HOSE, L. OIL

15660-MCF-000

Unavailable

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

7

COLLAR, OIL COOLER

90503-MCF-D00

Unavailable

8

BOLT, FLANGE (8X22)

90103-MJ1-010

$1.93

9

O-RING (11.1X3.5)

91255-MJ1-000

$2.92

10

O-RING (12X3)

91314-MCF-000

$2.92

11

NUT, FLANGE (6MM)

94050-06070

$1.49

12

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

13

BOLT, SOCKET (6X14)

96600-06014-00

$4.07
