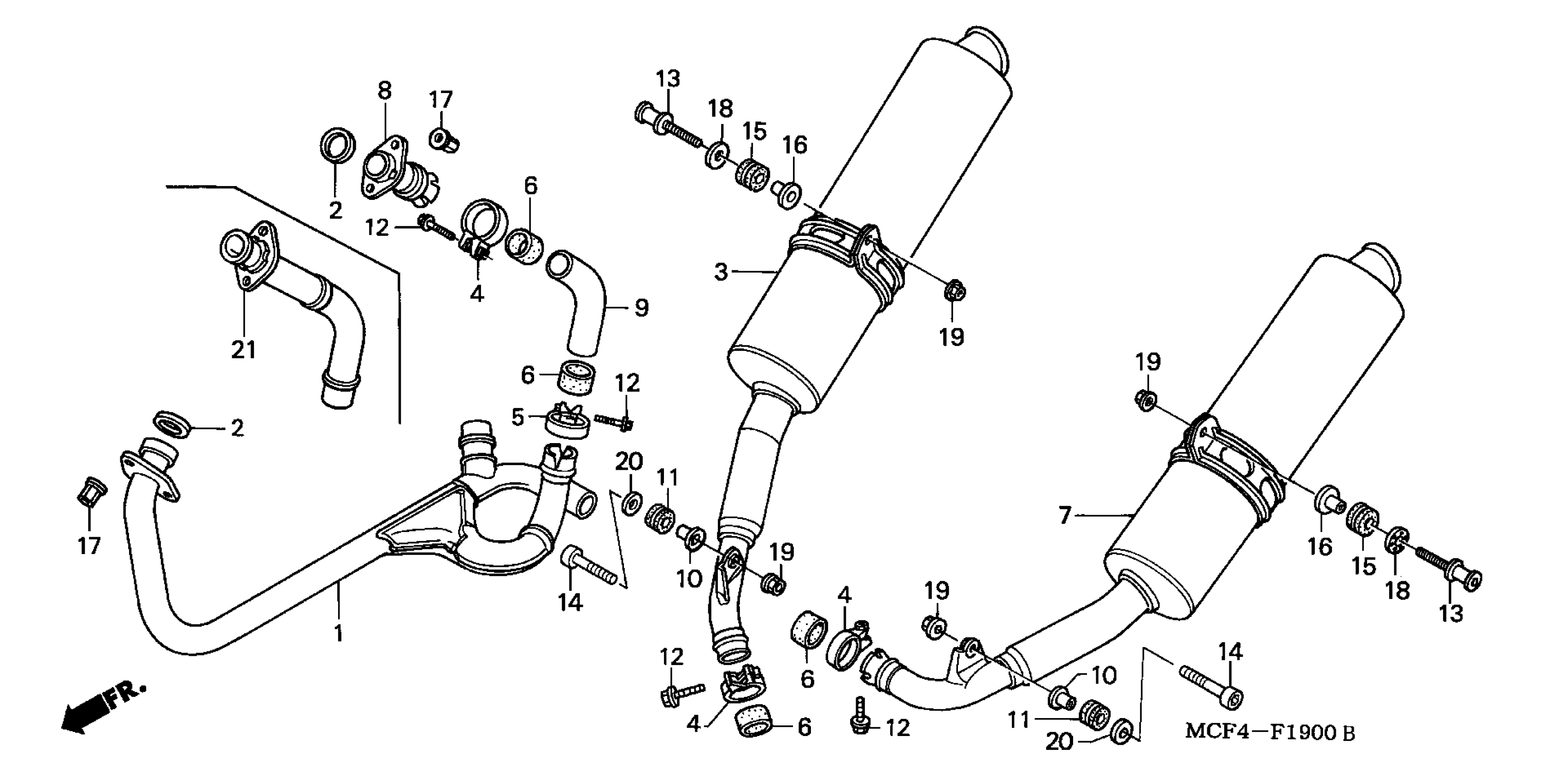

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 MUFFLER Diagram

PIPE, EX.

18150-MCF-003

Unavailable

GASKET, EX. PIPE

18292-MCF-003

$9.12

MUFFLER, R. EX.

18300-MCF-003

Unavailable

BAND, R. RR. MUFFLER This part replaces 18375-MCF-003.

18375-MCF-D30

$26.93

BAND, L. RR. MUFFLER

18376-MCF-003

$31.88

GASKET, RR. EX.

18393-MCF-003

$15.23

MUFFLER ASSY., L. EX.

18400-MCF-003

Unavailable

PIPE A, RR. EX.

18431-MCF-003

Unavailable

PIPE B, RR. EX.

18432-MCF-003

Unavailable

COLLAR (8X12)

80101-KB7-600

$5.50

CUSHION, RR. FENDER

80103-MG2-000

$2.83

BOLT, FLANGE (8X35)

90103-KCM-620

$1.43

BOLT, HOOK (8X36)

90117-MCF-000

Unavailable

BOLT, SOCKET (8X32)

90136-MBB-000

$3.37

CUSHION, EX. PIPE MOUNTING

90201-MBB-000

$2.87

COLLAR (8X18)

90202-MBB-000

$4.71

NUT, FLANGE (7MM)

90304-MM5-000

$4.60

WASHER, SPECIAL (8MM)

90514-MAT-000

$5.74

NUT, FLANGE (8MM)

94050-08000

$0.86

WASHER, PLAIN (8MM)

94103-08700

$0.86
