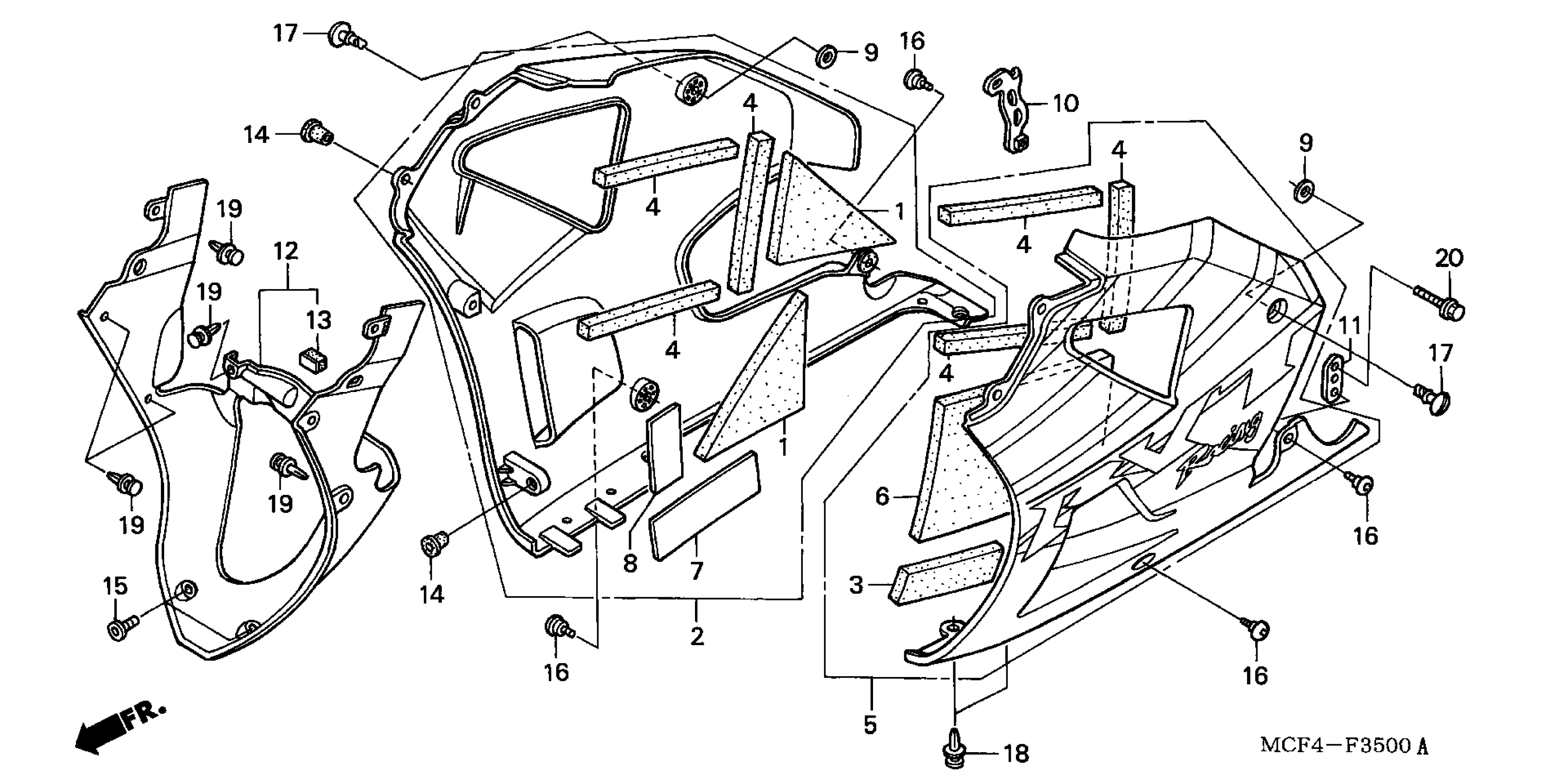

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 LOWER COWL ('00-'01) Diagram

MAT B, MIDDLE COWL

64252-MT4-700

$7.88

COWL SET, R. (LOWER) (TYPE2) (WL)

64400-MCF-670ZA

Unavailable

MAT A, COWL (LOWER)

64412-MCF-300

$12.00

SEAL A, COWL (LOWER)

64413-MCF-300

$6.54

COWL SET, L. (LOWER) (TYPE2) (WL)

64450-MCF-670ZA

Unavailable

MAT B, L. COWL (LOWER)

64462-MCF-300

Unavailable

GUARD A, HEAT

64464-MCF-300

Unavailable

GUARD B, HEAT

64465-MCF-300

Unavailable

WASHER (9X17X1) This part replaces 64509-MK4-000.

90511-MCS-G50

$1.85

STAY C, R. COWL (LOWER) This part replaces 64517-MCF-000.

64517-MCF-D30

$7.54

STAY C, L. COWL (LOWER) This part replaces 64518-MCF-000.

64518-MCF-D30

$2.98

COWL (LOWER) (INNER) *NH1* (BLACK)

64560-MCF-000ZB

Unavailable

MAT, COWL (LOWER) (INNER)

64565-MCF-300

Unavailable

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

SCREW, PAN (6X14)

90113-MM5-000

$3.10

STUD (9X15) This part replaces 90641-MCF-000.

90641-MCF-010

$6.95

CLIP, BODY

90683-MBW-003

$2.16

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
