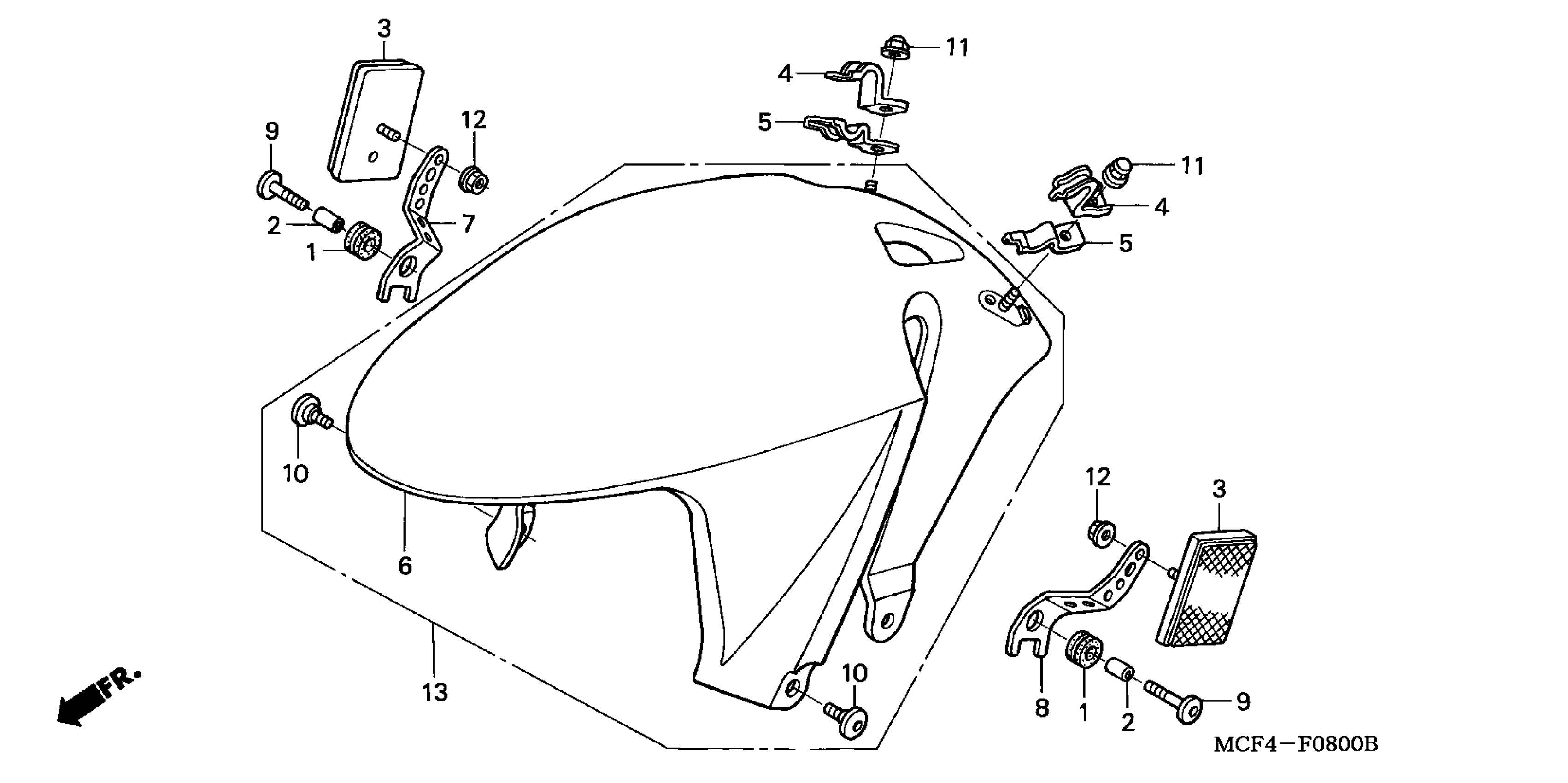

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 FRONT FENDER Diagram

GROMMET A, RR. COVER (8X16X6.6)

11344-MB0-000

$2.75

COLLAR, BATTERY TRAY

19103-KE8-000

$2.40

REFLECTOR, FR. REFLEX

33741-MB2-671

$14.86

CLAMP A, FR. BRAKE HOSE

45461-KW3-000

$5.46

CLAMP B, BRAKE HOSE

45462-MW4-000

$6.75

FENDER, FR. *R258* (WINNING RED)

61100-MCF-010ZB

Unavailable

STAY, R. FR. REFLECTOR

61101-MCF-670

Unavailable

STAY, L. FR. REFLECTOR

61102-MCF-670

Unavailable

BOLT, SPECIAL (6X17)

90085-MZ1-000

$3.67

SCREW, SPECIAL (6X16)

90114-MCJ-000

$2.51

NUT, CAP (6MM)

94021-06070-0S

$1.62

NUT, FLANGE (5MM)

94050-05000

$1.49

FENDER SET, FR. *R258* (WINNING RED)

61010-MCF-305ZA

Unavailable
