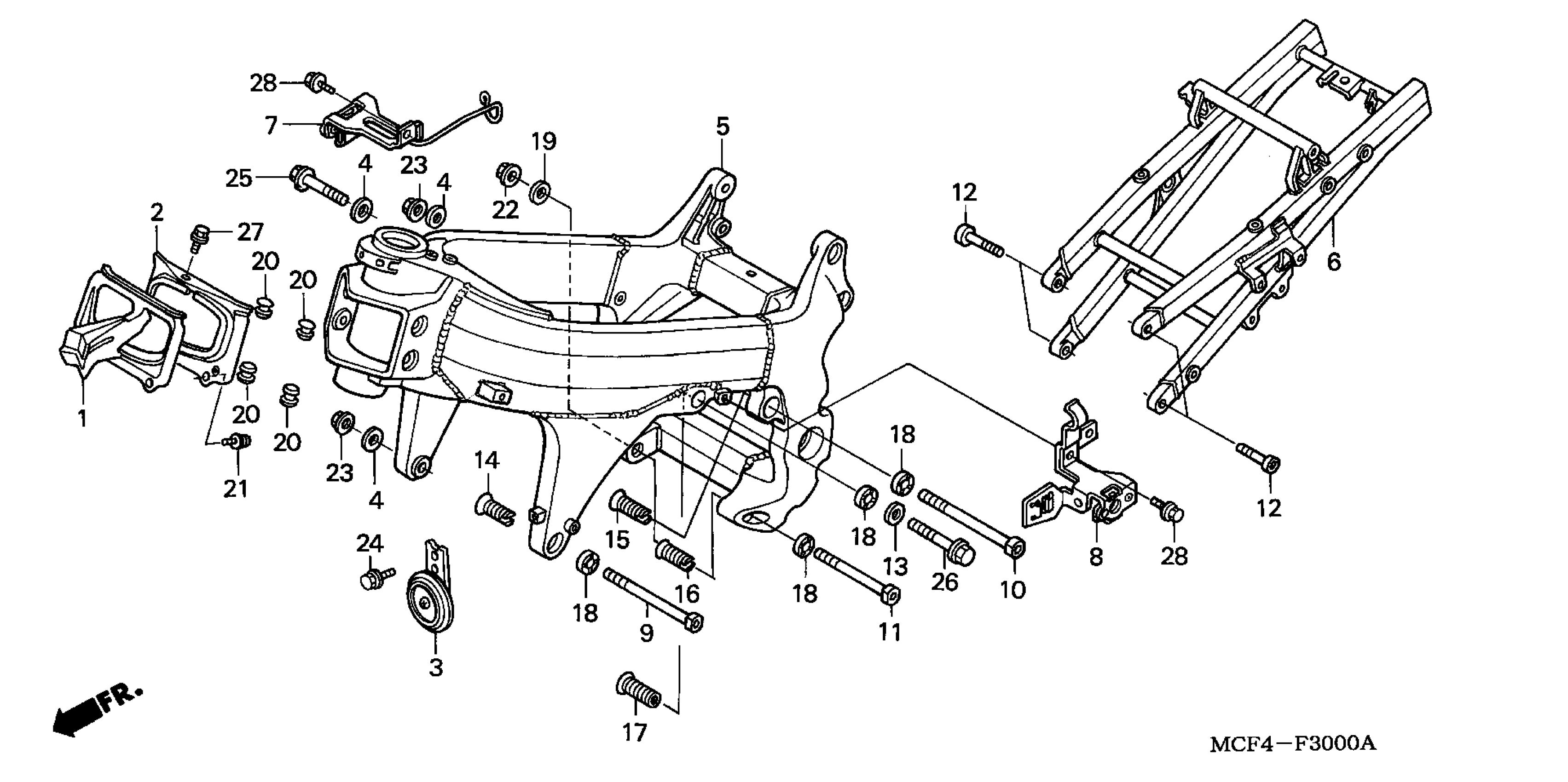

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 FRAME ('00-'01) Diagram

#

Description
Price

1

TUBE, FR. CONNECTING

17263-MCF-000

Unavailable

2

HOLDER, FR. CONNECTING TUBE

17264-MCF-000

Unavailable

3

HORN (HIGH) (MITSUBA)

38110-GT8-621

$55.64

4

WASHER A, FR. DISK

45224-KV3-951

$3.21

5

FRAME *NH377M* (CORE BLACK METALLIC)

50100-MCF-A00ZA

Unavailable

6

RAIL, SEAT

50200-MCF-D00

Unavailable

7

STAY B, R. COWL (LOWER) This part replaces 64515-MCF-000.

64515-MCF-D50

$16.95

8

STAY B, L. COWL (LOWER) This part replaces 64516-MCF-000.

64516-MCF-D50

$28.51

9

BOLT, SPECIAL (12X280)

90102-MCF-000

Unavailable

10

BOLT, SPECIAL (12X294)

90103-MCF-000

Unavailable

11

BOLT, FLANGE (10X249)

90104-MCF-000

Unavailable

12

BOLT, TORX (10X32)

90108-MCF-000

$3.69

13

WASHER (12MM)

90122-GS3-000

Unavailable

14

BOLT, ADJUSTING (20X68.5)

90151-MCF-000

Unavailable

15

BOLT, ADJUSTING (20X48.5)

90152-MCF-000

$15.40

16

BOLT, ADJUSTING (20X48.5)

90153-MCF-000

Unavailable

17

BOLT, ADJUSTING (20X68.5)

90154-MCF-000

Unavailable

18

NUT, LOCK (20MM)

90201-MW0-000

$10.87

19

WASHER (10MM)

90410-KR0-000

$2.67

20

GROMMET, AIR DUCT

90851-MCF-000

$3.23

21

BOLT-WASHER (5X12)

93401-05012-07

$1.49

22

NUT, FLANGE (10MM)

94050-10000

$1.59

23

NUT, FLANGE (12MM)

94050-12000

$1.49

24

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

25

BOLT, FLANGE (12X55)

95801-12055-00

$2.49

26

BOLT, FLANGE (12X100)

95801-12100-00

$4.00

27

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

28

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
