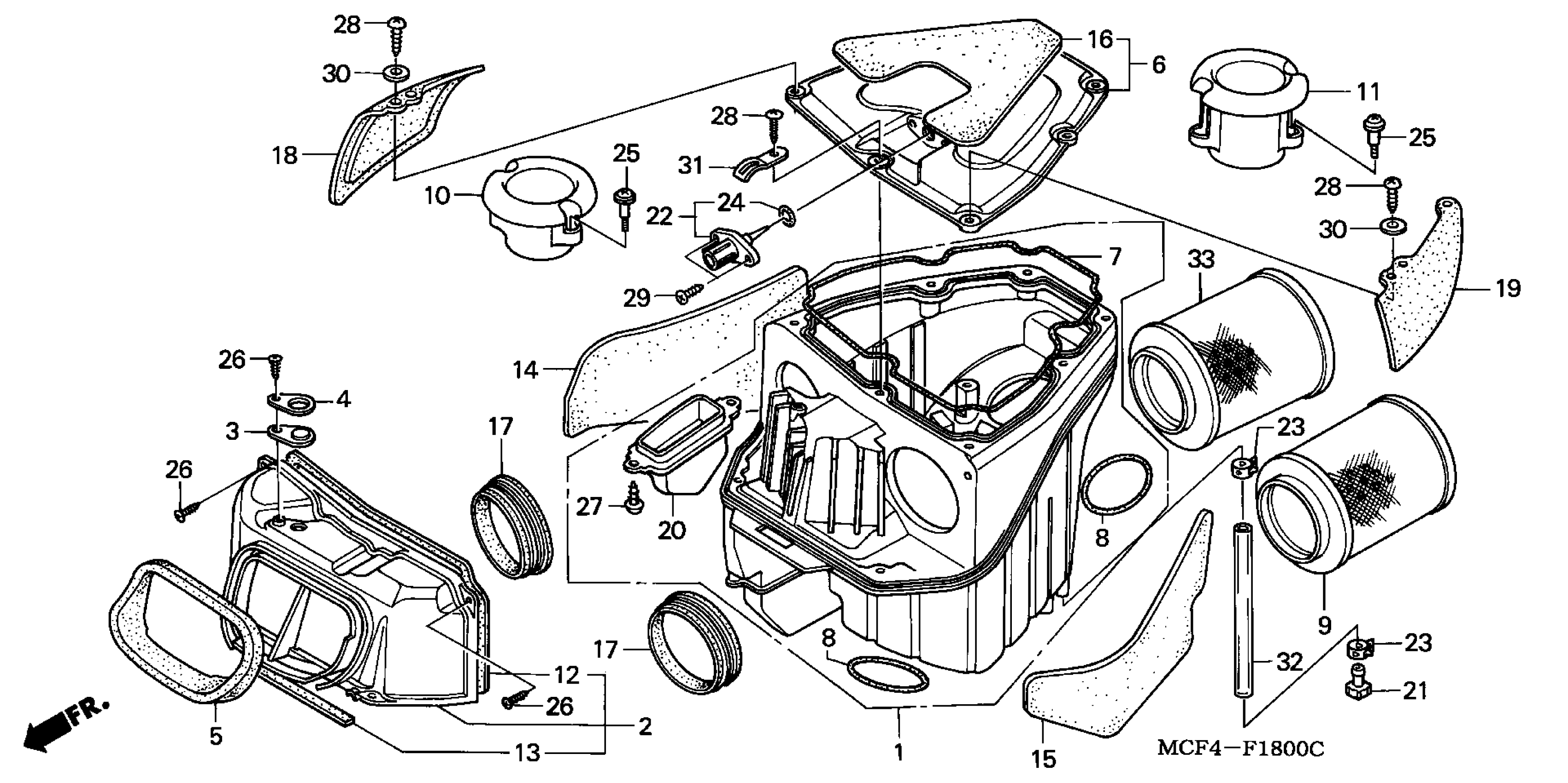

Honda RVT1000RA (01) RC51, JPN, VIN# JH2SC453-1M100001 TO JH2SC453-1M199999 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER

17221-MCF-670

Unavailable

2

COVER, FR. DUCT

17224-MCF-000

$39.90

3

CAP, FR. COVER

17225-MCF-000

Unavailable

4

PLATE, CAP

17226-MCF-000

Unavailable

5

SEAL, FR. DUCT

17229-MCF-000

Unavailable

6

COVER, AIR CLEANER

17231-MCF-000

$51.87

7

SEAL A, AIR CLEANER HOUSING

17232-MCF-300

Unavailable

8

SEAL B, AIR CLEANER HOUSING

17233-MCF-300

Unavailable

9

ELEMENT, AIR CLEANER

17235-MCF-000

$31.70

10

FUNNEL, FR. AIR

17237-MCF-000

Unavailable

11

FUNNEL, RR. AIR

17239-MCF-000

Unavailable

12

SEAL A

17245-MCF-300

$12.11

13

SEAL B

17246-MCF-300

$3.98

14

RUBBER, R. SIDE

17247-MCF-000

$19.26

15

RUBBER, L. SIDE

17248-MCF-000

$19.26

16

RUBBER, AIR CLEANER COVER

17249-MCF-000

Unavailable

17

SEAL, ELEMENT

17256-MCF-000

Unavailable

18

RUBBER, R. AIR CLEANER SIDE

17258-MCF-670

Unavailable

19

RUBBER, L. AIR CLEANER SIDE

17259-MCF-670

Unavailable

20

CHAMBER A

17365-MCF-000

$17.67

21

PLUG, BREATHER TUBE

17370-419-700

$3.74

22

SENSOR ASSY., AIR TEMPERATURE

37880-P05-A00

$33.51

23

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

24

O-RING (7.5X1.5)

91303-PK2-005

$2.81

25

SCREW, PAN (5MM)

91508-MM5-000

$4.08

26

SCREW, TAPPING (4X12)

93903-24380

$1.49

27

SCREW, TAPPING (5X12)

93903-25280

$1.49

28

SCREW, TAPPING (5X16)

93903-25380

$1.49

29

SCREW, TAPPING (5X16)

93911-25420

$1.49

30

WASHER, SPRING (5MM)

94111-05800

$1.49

31

CLIP, WIRE (2X40)

94591-24000

$2.16

32

BULK HOSE, VINYL (8X12X8000) (8X12X570)

95003-23008-60M

Unavailable

33

ELEMENT, AIR CLEANER

17235-MCF-000

$31.70
