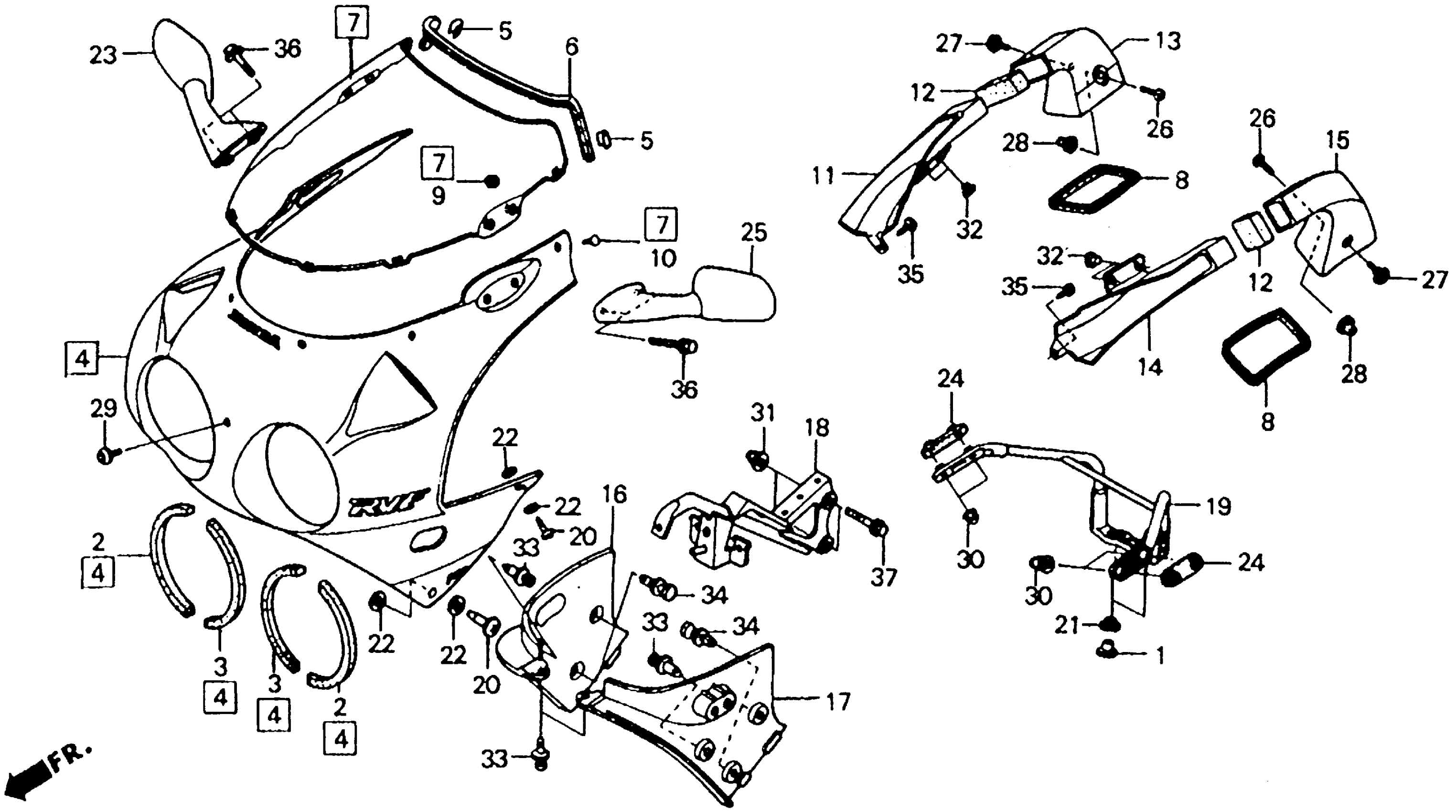

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 UPPER COWL Diagram

#

Description
Price

1

COLLAR (6MM)

17513-MR7-000

Unavailable

2

SEAL, HEADLIGHT (A)

33102-MW4-300

Unavailable

3

SEAL, HEADLIGHT (B)

33103-MW4-300

Unavailable

4

COWL SET (UPPER) (TYPE1) (WL)

64100-MW4-000ZA

Unavailable

5

CLIP, SCREEN MOLDING

64102-MA3-720

$4.00

6

MOLDING, WINDSCREEN

64105-MW4-000

Unavailable

7

WINDSCREEN SET

64110-MW4-405

Unavailable

8

RUBBER, SIDE SEAL

64121-MW4-000

Unavailable

9

NUT, SPEED (4MM)

64206-MJ0-000

$1.51

10

PIN, SCREEN SETTING

64206-ML0-700

$3.12

11

DUCT A, R. COWL AIR (UPPER)

64260-MW4-000

Unavailable

12

FILTER, AIR DUCT

64261-MW4-000

Unavailable

13

DUCT B, R. COWL AIR (UPPER)

64265-MW4-000

Unavailable

14

DUCT A, L. COWL AIR (UPPER)

64270-MW4-000

Unavailable

15

DUCT B, L. COWL AIR (UPPER)

64275-MW4-000

Unavailable

16

COWL, R. MIDDLE (INNER) *R127* (SPARKLING RED)

64325-MW4-000ZB

Unavailable

17

COWL, L. MIDDLE (INNER) *R127* (SPARKLING RED)

64375-MW4-000ZB

Unavailable

18

STAY, COWL MAIN (UPPER)

64501-MW4-000

Unavailable

19

STAY, BACK MIRROR

64502-MW4-000

Unavailable

20

STUD (6X14) This part replaces 64507-MN4-000.

64508-ML7-921

$13.52

21

RUBBER, MIRROR STAY SETTING

64508-MR7-000

Unavailable

22

RETAINER (6MM) This part replaces 64509-KE8-700.

64509-KE8-701

$2.46

23

MIRROR ASSY., R. *NH1* (BLACK)

88110-MW0-791ZA

Unavailable

24

RUBBER, MIRROR SETTING

88116-MW0-000

Unavailable

25

MIRROR ASSY., L. *NH1* (BLACK)

88120-MW0-791ZA

Unavailable

26

SCREW, PAN (6X10)

90105-MM4-000

$2.21

27

SCREW, TRUSS (5X16)

90109-SB6-000

$4.51

28

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

29

BOLT, COWL SETTING

90112-MT4-000

$3.31

30

NUT, CAP (6MM)

90201-428-900

$2.23

31

NUT, CAP (8MM) This part replaces 90301-SA0-000.

90443-KF9-900

$4.27

31

NUT, CAP (8MM)

90443-KF9-900

$4.27

32

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

33

CLIP, BODY COVER

90683-GR1-003

$2.92

34

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

35

SCREW, TAPPING (4X12)

93903-24380

$1.49

36

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

37

BOLT, FLANGE (8X28)

96400-08028-00

$1.85
