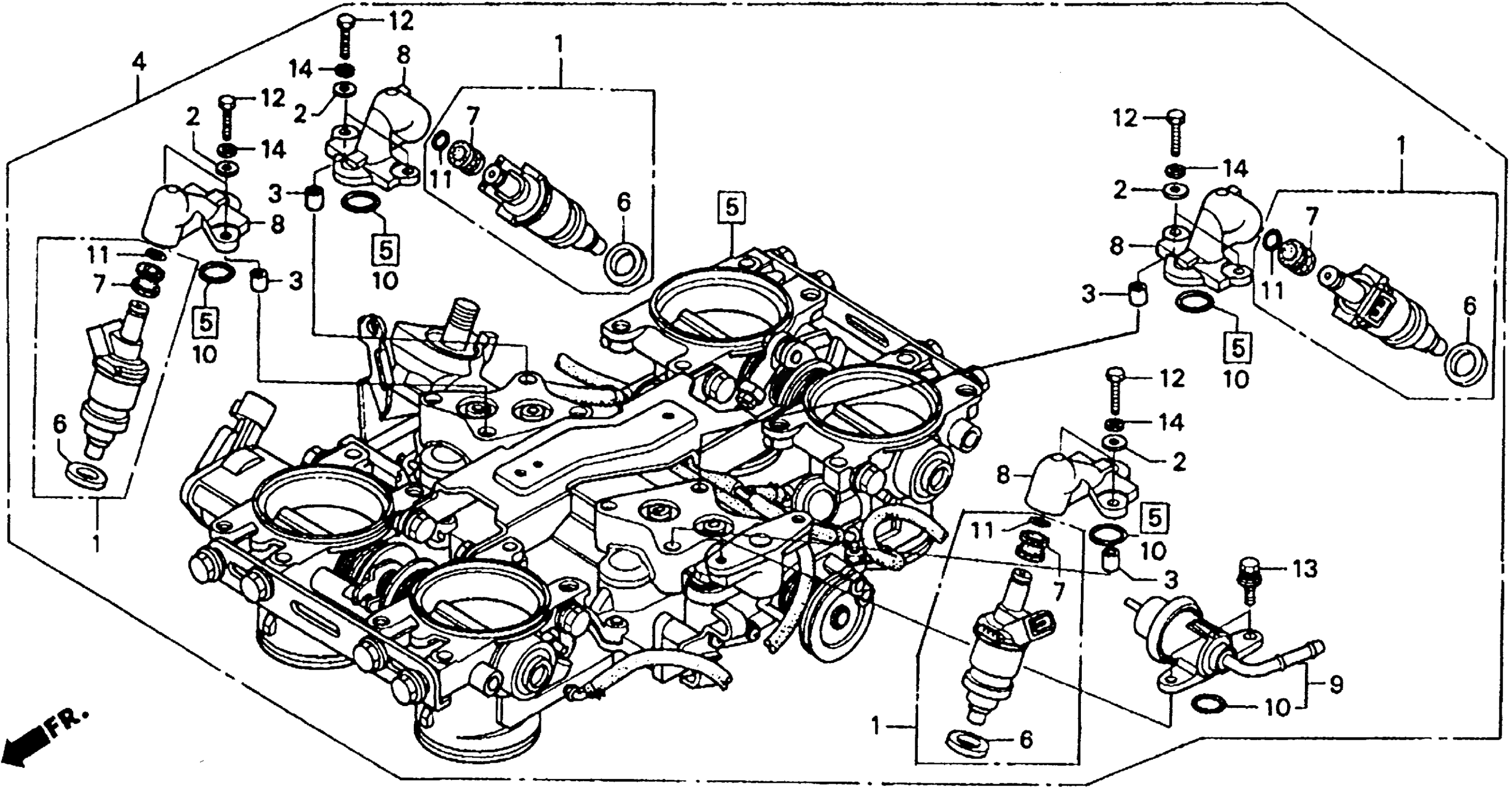

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 THROTTLE BODY ASSEMBLY Diagram

INJECTOR SET, FUEL

06164-MW4-000

Unavailable

WASHER, PLAIN This part replaces 16178-ML7-004.

16178-GHB-620

Unavailable

PIN, DOWEL (7X6)

16178-MT7-000

Unavailable

BODY ASSY., THROTTLE (GQ21B A)

16400-MW4-670

Unavailable

BODY ASSY., THROTTLE

16401-MW4-670

Unavailable

SEAL RING, INJECTOR (NOK) This part replaces 16472-PH7-003.

16472-P0H-A01

$20.68

CUSHION RING, INJECTOR (NOK) This part replaces 16473-PD6-000.

16473-P10-A01

$7.12

SUB-PIPE, FUEL

16621-MW4-000

Unavailable

REGULATOR ASSY., PRESSURE

16740-MW4-003

Unavailable

O-RING, PRESSURE REGULATOR

16741-PG7-005

$3.47

O-RING (7.3X2.2) (NOK) This part replaces 91301-PM7-003.

91301-P2F-A01

$2.97

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT-WASHER (6X16)

93403-06016-00

$1.55

BOLT-WASHER (6X16) This part replaces 93413-06016-00.

93403-06016-00

$1.55

WASHER, SPRING (5MM)

94111-05000

$1.49
