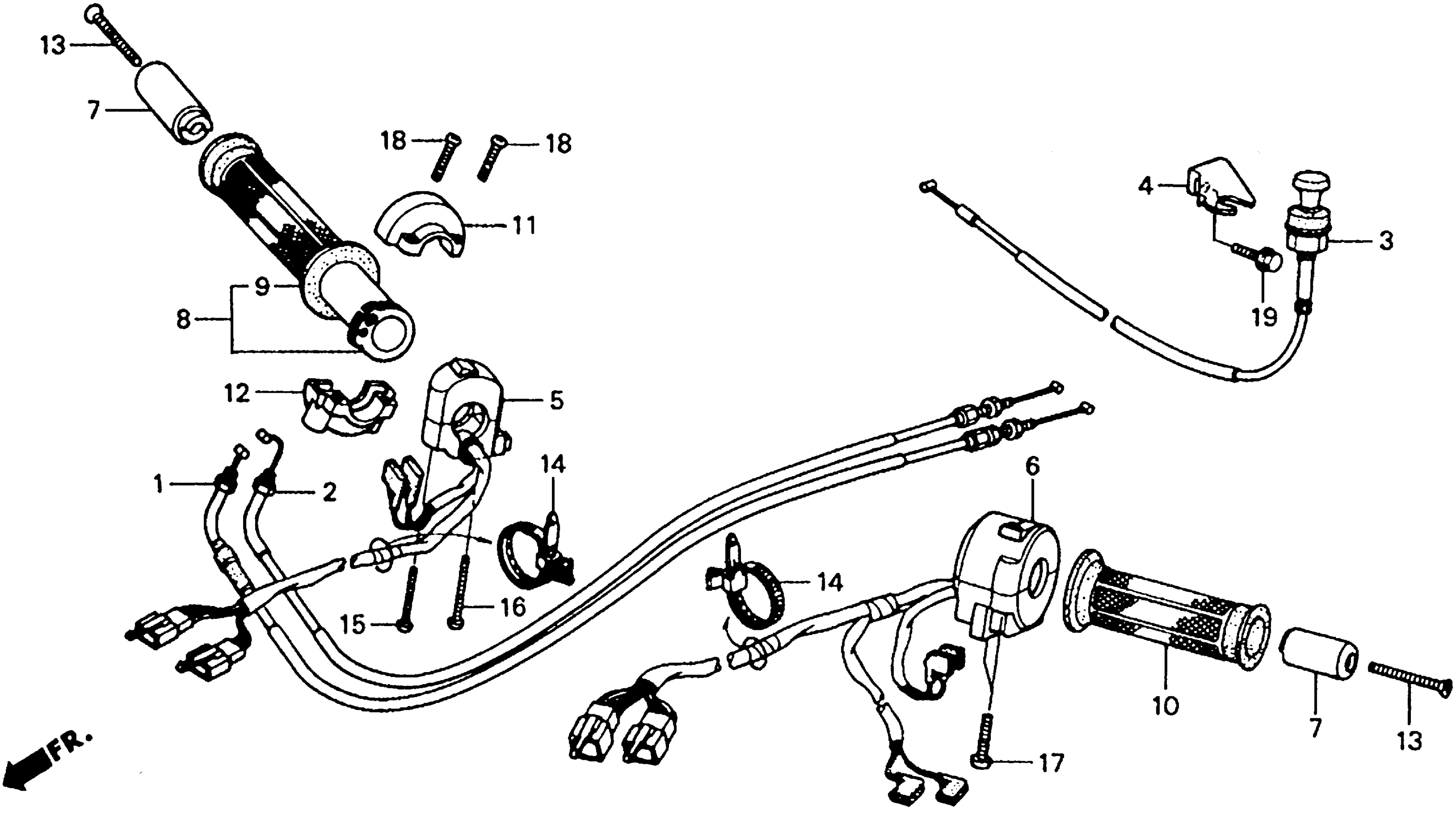

Honda RVF750RA (94) RC45, JPN, VIN# JH2RC450-RM000006 SWITCH Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MW4-000

Unavailable

2

CABLE B, THROTTLE

17920-MW4-000

Unavailable

3

CABLE, CHOKE

17950-MW4-000

Unavailable

4

STAY, CHOKE LEVER

17951-MW4-000

Unavailable

5

SW, STARTER & STOP This part replaces 35130-MW4-000.

35130-MW4-010

Unavailable

6

SWITCH ASSY., TURN SIGNAL

35200-MW4-670

Unavailable

7

WEIGHT, HANDLEBAR

53105-KT7-750

Unavailable

8

GRIP, R.

53140-MR7-000

Unavailable

9

GRIP, R. HANDLE

53165-KT8-710

$8.72

10

GRIP, L. HANDLE

53166-KT8-710

$8.96

11

HOUSING, THROTTLE (LOWER) This part replaces 53168-385-000.

53168-428-000

Unavailable

12

HOUSING, THROTTLE

53167-MR7-000

Unavailable

13

SCREW, OVAL (6X60)

90191-KT7-750

$4.74

14

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.47

15

SCREW, PAN (4X32)

93500-04032-0G

$1.49

16

SCREW, PAN (4X45)

93500-04045-0G

$1.49

17

SCREW, PAN (5X20)

93500-05020-0A

$1.49

18

SCREW, PAN (5X20)

93500-05020-0G

$1.49

19

BOLT, FLANGE (6X20)

96300-06020-07

Unavailable
